Controlling Audio
40
■ [Tweeter] (Only for Front)
You can set the tweeter when you are
selecting front speakers.
[None], [Small], [Medium], [Large]
■ [Xʼover]
Displays the speaker crossover setup screen.
You can adjust the crossover setup that was
set automatically when you selected the
speaker type.
For details, see Crossover network setup
(P.40)

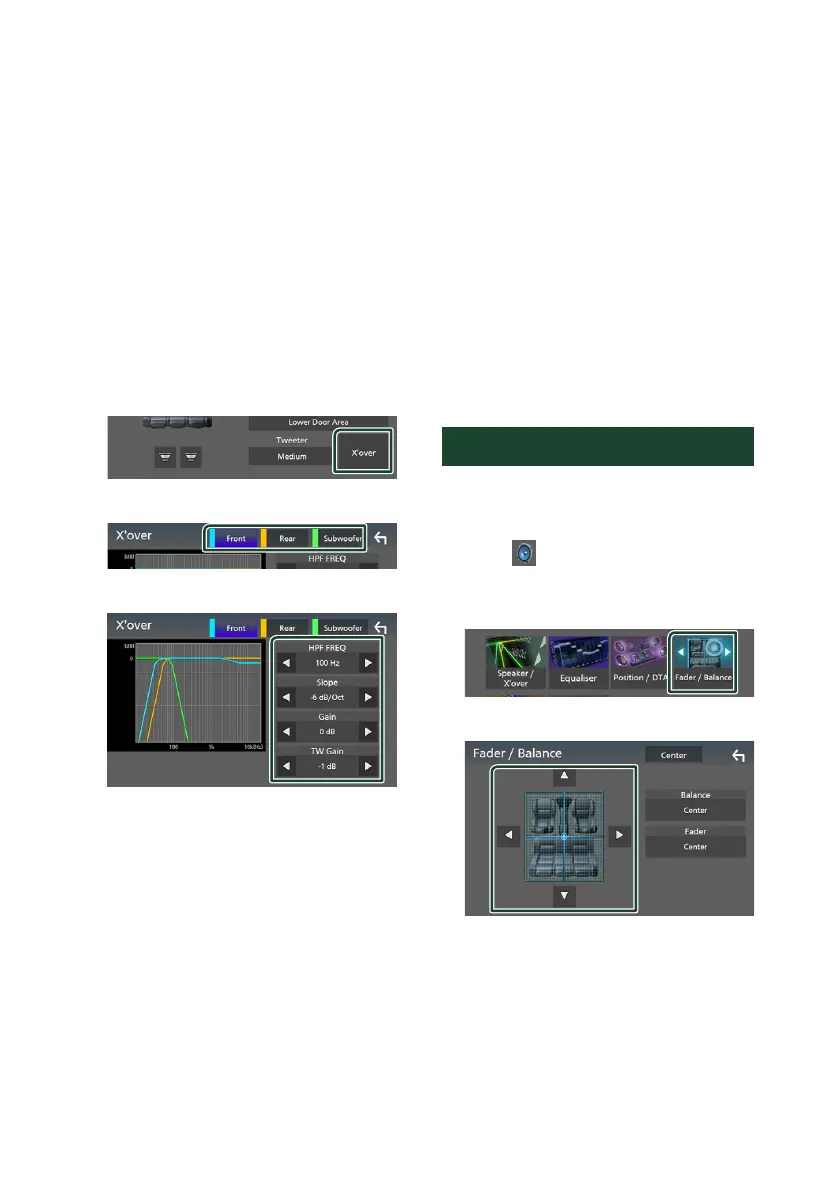

Ñ Crossover network setup
You can set a crossover frequency of speakers.
1 Touch [Xʼover].
2 Touch the speaker to set.
3 Set each item as follows.
■ [HPF FREQ]
High Pass Filter adjustment. (When front or
rear speaker is selected on Speaker Select
screen)
■ [LPF FREQ]
Low Pass Filter adjustment. (When subwoofer
is selected on Speaker Select screen)
■ [Slope]*
1
Sets a crossover slope.
■ [Gain]
Adjusts the front speaker, rear speaker, or
subwoofer level.
■ [TW] (Tweeter) [Gain]*
2
Adjusts the tweeter level. (When front is
selected on Speaker Select screen)
■ [Phase Inversion]*
3
Sets the phase of subwoofer output.
Check [Phase Inversion] to shift the phase
180 degrees. (When subwoofer is selected
on Speaker Select screen)
*
1
Only when “[LPF FREQ]”/“[HPF FREQ]” is
set to a mode other than “[Through]” in
[Xʼover].
*
2
Only when “[Tweeter]” is set to “[Small]”,
“[Medium]”, “ [Large]” in Speaker Setup.
*
3
Only when “[Subwoofer]” is set to a mode
other than “[None]” in Speaker Setup.
Controlling General Audio
1 Press the [MENU] button.
 MENU screen appears.
2 Touch [ ].
 Audio screen appears.
3 Touch [Fader / Balance].
4 Set each item as follows.
■ [Fader] / [Balance]
Adjust the volume balance around the
touched area.
[C] and [D] adjust the right and left volume
balance.
[R] and [S] adjust the front and rear volume
balance.
■ [Center]
Clear the adjustment.
