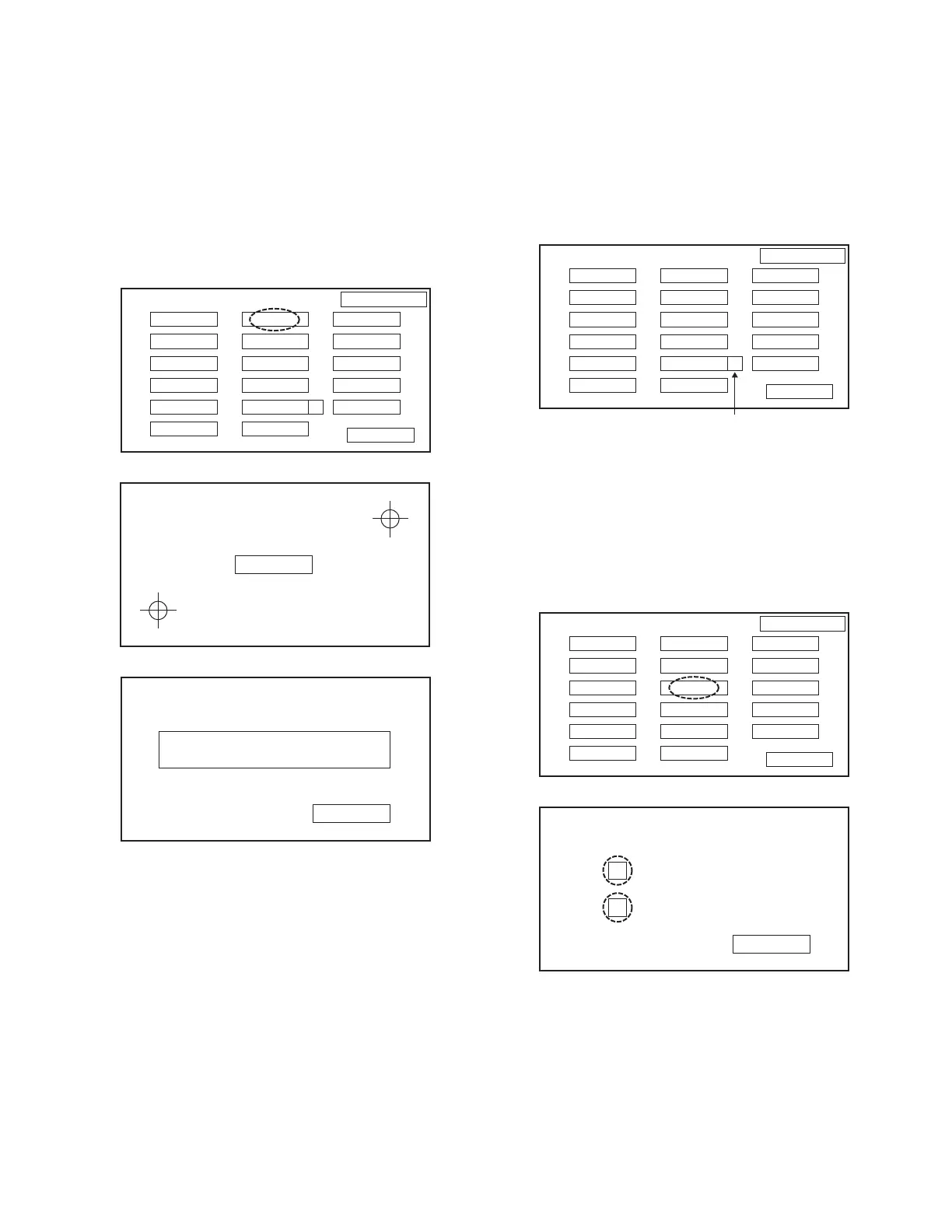

3. Screen position adjustment and Touch panel operation
• Adjustment & Inspection method
<1> Test mode is started. It is touches in order “Touch”
of the screen.
<2> It adjusts in the order of upper left, and lower right.
<3> Adjustment result is confirmed. (Display to “Write
OK”). It is touches in order “Return” of the screen.
Test Mode Main
Information
Service
Ext SW
For FCT
Navigation
Direct Select
Touch
Illumi
iPod
Tilt Mecha
LCD Backlight 1
LCD
Bluethooth
SW-Touch
Development
Rear Camera
Steering Remote
Return
DRAM OK
<1>
Cancel
Touch Adjust
1-point
being input
2-point
being input
<2>
Touch Adjust
Write OK/NG
Return
<3>
4. LCD_Back_Light RANK_Detect_Check
• Adjustment & Inspection method
Start the Test mode.
<1> Check of Rank.
<2> 2~8: “OK”, 1: “NG”
Test Mode Main
Information
Service
Ext SW
For FCT
Navigation
Direct Select
Touch
Illumi
iPod
Tilt Mecha
LCD Backlight
LCD
Bluethooth
SW-Touch
Development
Rear Camera
Steering Remote
LCD_Backlight Rank
Return
DRAM OK
5. Touch_Panel check
• Adjustment & Inspection method
<1> Test mode is started. It is touches in order “iPod” of
the screen.
<2> It is touches in order “iPod Check” of the screen.
<3> It is touches in order “iPod V-Play” of the screen.
<4> Were you able to push KEY?
OK: No problem, NG: Touch panel adjustment.
Test Mode Main
Information
Service
Ext SW
For FCT
Navigation
Direct Select
Touch
Illumi
iPod
Tilt Mecha
LCD Backlight
LCD
Bluethooth
SW-Touch
Development
Rear Camera
Steering Remote
Return
DRAM OK
<1>
Cancel
iPod Check
iPod V-Play
iPod
<2><3>
ADJUSTMENT
