Basic Operations

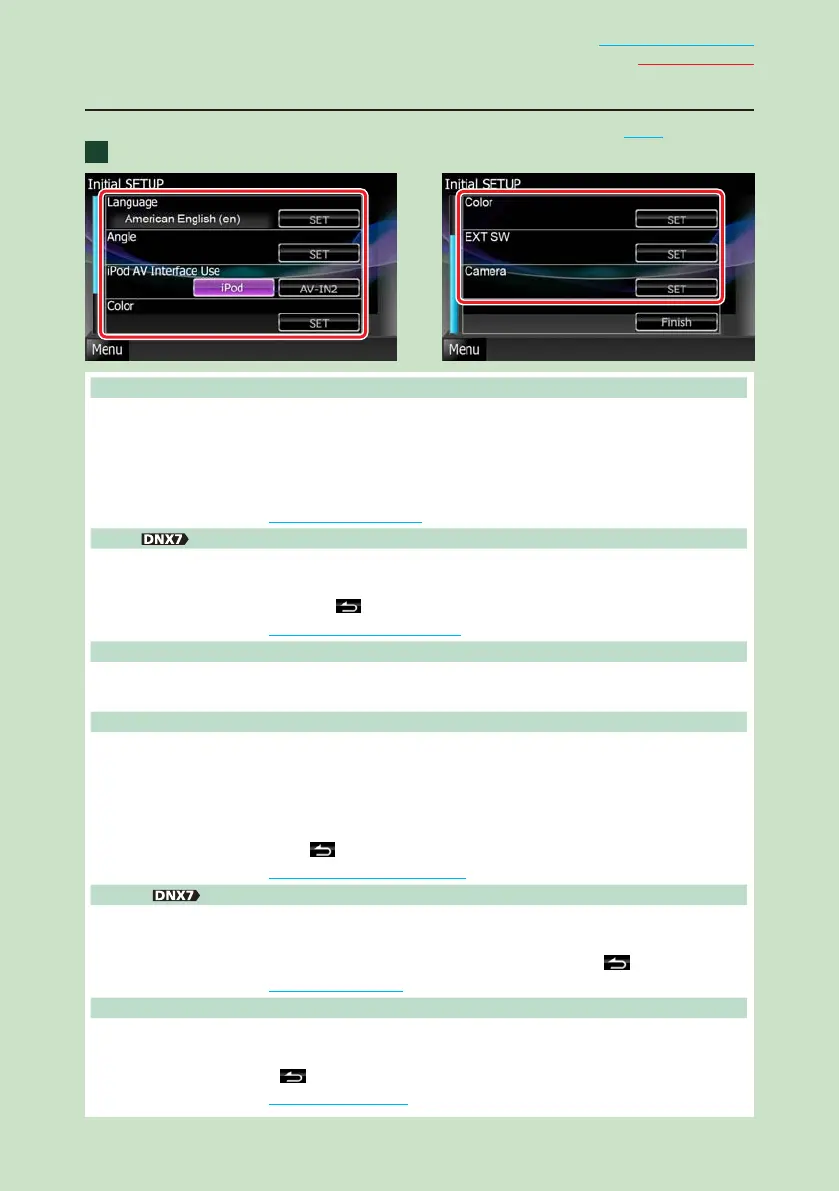

Initial setup
Perform this setup when you use this unit first time or when you reset the unit (P.92).
Set each item as follows.
Language
Select the language used for the control screen and setting items. Default is “British English (en)” for
DNX7280BT/DNX5280BT/DNX4280BT and “Russian” for DNX5580BT.
1 Touch [SET].
2 Touch [2] or [3] to select the desired language.
3 Touch [Enter].
For detailed operation, see Language setup (P.68).
Angle
Adjust the position of the monitor. Default is “0”.
1 Touch [SET].
2 Touch desired angle number and [
].
For detailed operation, see Monitor angle control (P.71).
iPod AV Interface Use
Set the terminal which your iPod is connected to. Default is “iPod”.
1 Touch [iPod] or [AV-IN2].
Color
Set the screen and button illumination color. You can select whether to allow color scan operation or
select a fixed color for operation.
1 Touch [SET].
2 Touch [ON] or [OFF] of [Panel Color Scan].
3 If you want to change color, touch [SET] of [Panel Color Coordinate].
4 Touch your desired color and [
].
For detailed operation, see Panel color coordinate (P.72).
EXT SW
Control the external devices.
1 Touch [SET].
2 Set device name, output pattern, and pulse set for each device. Then, touch [
].
For detailed operation, see EXT SW setup (P.70).
Camera
Set the parameters for the camera.
1 Touch [SET].
2 Set each item and touch [
].
For detailed operation, see Camera Setup (P.75).
