Kenwood DPX305MBT Quick Start Guide

3
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Antenna terminal
Fuse (10 A)

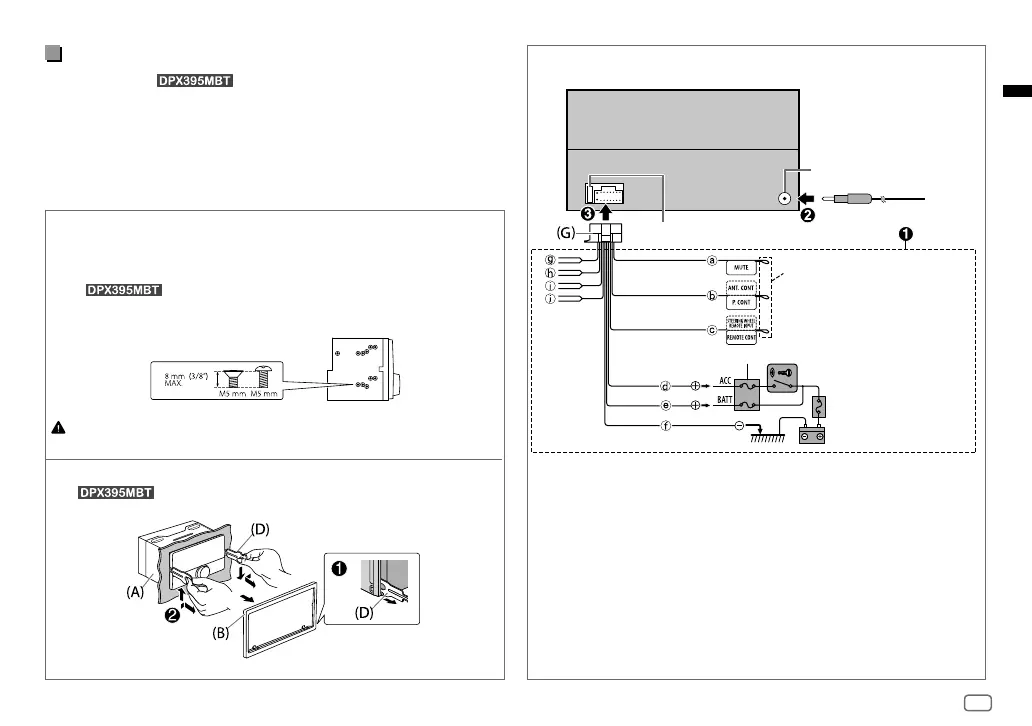

Wiring connection
a Brown: Connect to the device
equipped with muting feature
to mute this unit
b Blue/white: To the power
control terminal when using
the optional power amplifier or
to the antenna control terminal
in the vehicle
c Light blue/yellow: To the
steering wheel remote control
adapter
d Red: Ignition 12V
e Yellow: Battery 12V
f Black: Ground
g White ª, White/black ·:
Front speaker (left)
h Gray ª, Gray/black ·:
Front speaker (right)
i Green ª, Green/black ·:
Rear speaker (left)
j Purple ª, Purple/black ·:
Rear speaker (right)
Removing the unit
(For
)
Installing the unit (without mounting sleeve)
Align the holes in the unit (on both sides) with the vehicle mounting
bracket and secure the unit with supplied screws.
• For
: Remove the mounting sleeve and trim plate from the
unit.
Use only the specified screws. Using wrong screws might damage the
unit.
Part list
(Parts supplied for )
(Parts supplied for all models)
(A) Mounting sleeve (×1)
(B) Trim plate (×1)
(C) Trim plate (only for Toyota car) (×1)
(D) Extraction key (×2)
(E) Round head screw (×6)
(M5 × 8 mm)
(F) Flat head screw (×6)
(M5 × 8 mm)
(G) Wiring harness (×1)
If no connections are made, do not let
the wire come out from the tab.
Car fuse box
Ignition switch
DPX395MBT_K_B5K-0890-00_EN_1st Draft.indd 3DPX395MBT_K_B5K-0890-00_EN_1st Draft.indd 3 7/14/2021 3:26:04 PM7/14/2021 3:26:04 PM
