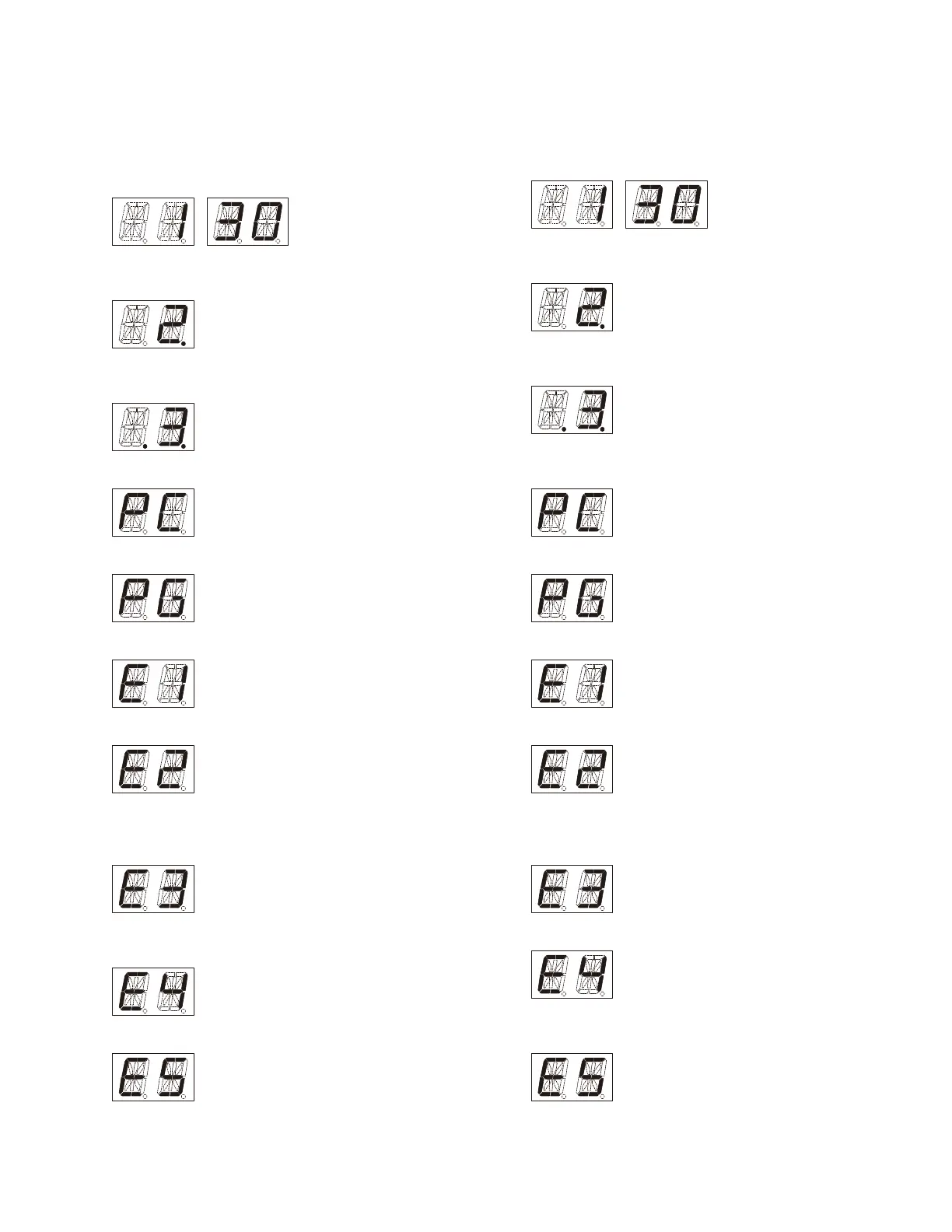

1. Two 17-segment LED Displays
• Channel display (1~30): While operating normally in user
mode.
• When the displayed channel is contained in scan se-
quence, the right side decimal point is displayed.
• When the displayed channel is the priority channel, the
left side decimal point is displayed.
• “PC” is displayed while in PC mode.
• “PG” is displayed while in fi rmware programming mode.
• “E1” is displayed when FPU data is not written.
• “E2” is displayed when the channel data is not written.
• “E3” is displayed when PLL is unlocked.
Receiver PLL unlocked = BUSY LED blinks.
Transmitter PLL unlocked = TX LED blinks.
• “E4” is displayed when PTT is attempted on a channel
number that has no frequency data programmed.
• “E5” is displayed when IP address confi guration is error.
1. 两个 17 段 LED 显示
• 信道显示 (1 ～ 30): 以用户模式正常操作时。
• 显示的信道包含在扫描序列中时，显示右侧的小数点。
• 显示的信道为优先信道时，显示左侧的小数点。
• 处于 PC 模式时，显示“PC”。
• 处于固件编程模式时，显示“PG”。
• 未写入 FPU 数据时，显示“E1”。
• 未写入信道数据时，显示“E2”。
• PLL 失锁时，显示“E3”。
接收机 PLL 失锁 = BUSY LED 闪烁。
发射机 PLL 失锁 = TX LED 闪烁。
• 在未编写频率数据的信道上尝试 PTT 时，显示“E4”。
• IP 地址配置错误时，显示“E5”。
