NXR-700H
92

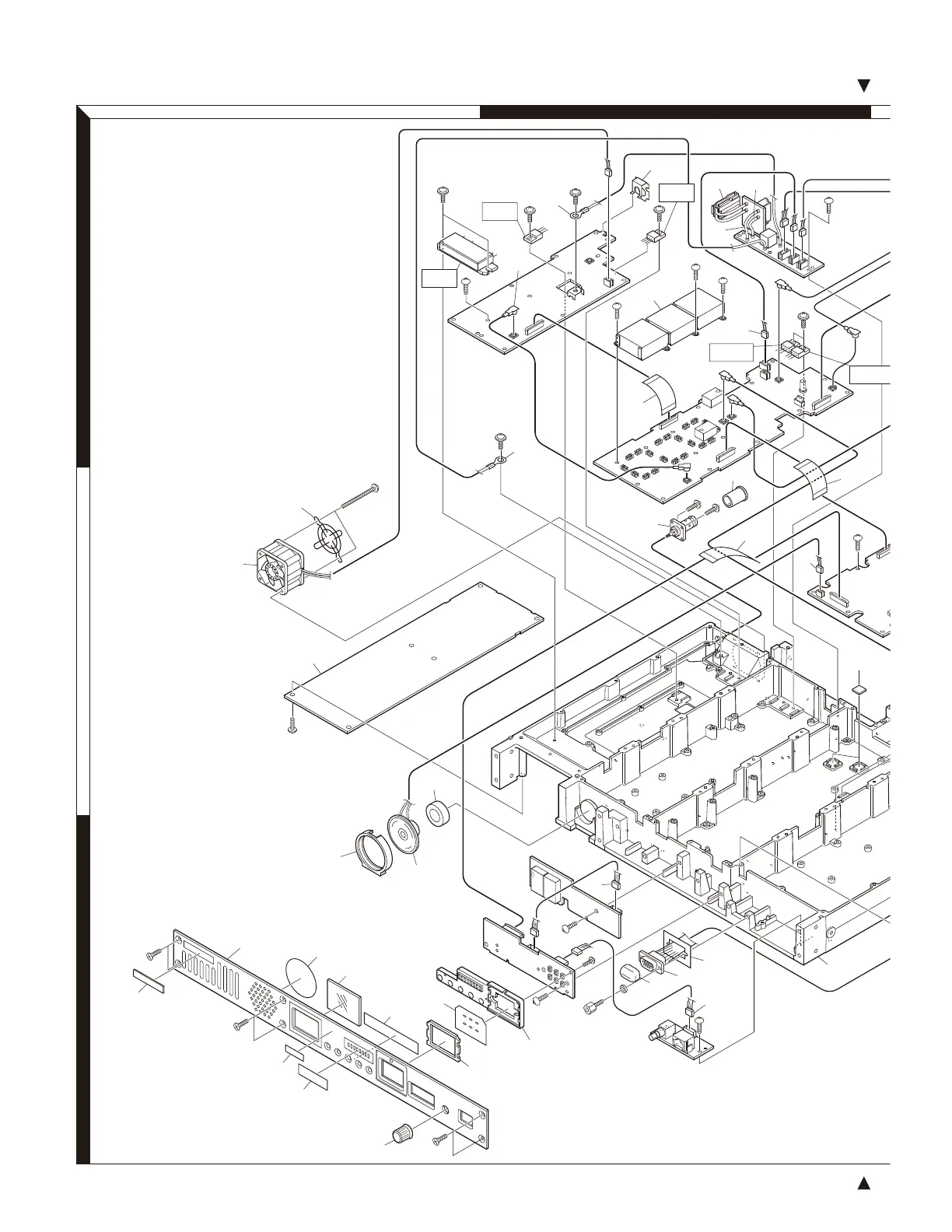

EXPLODED VIEW /
部件分解图
Parts with the exploded numbers larger than 700 are not supplied.
If a part reference number is listed in a box on the exploded view of the PCB, that part does not come with the PCB.
These parts must be ordered separately.
3
2
1
BA
X45-385
E/5
X45-385
A/5
X45-385
C/5
X56-311
A/3
X56-311
B/3
X56-311
C/3
704
705
B
F
Ex4
H
Gx2
Gx2
Gx2
L
L
L
701
700
J
709
H
H
H
Hx2
Hx2
D
D
L
L
L
L
L
L
703x3
702
IC809
IC11
29
31
32
52
55
40
37
64
4
6
5
42
1
9
7
59
47
39
24
14
19
18
17
17
17
12
45
33
16
21
20
8
IC80
IC12
IC10
B : N09-2292-05
C M2 x 8 : N30-2008-43
D M2.6 x 6 : N30-2606-48
E M3 x 35 : N30-3035-43
F M3 x 6 (F) : N32-3006-43
G M4 x 8 (F) : N32-4008-43
H : N67-3008-48
J : N80-2006-43
K : N80-2608-43
L M2.6 x 8 (Br-Tap) : N87-2608-48
To Next Page
