NXR-800
114
OPTIONAL ACCESSORIES: KES-5 (EXTERNAL SPEAKER)

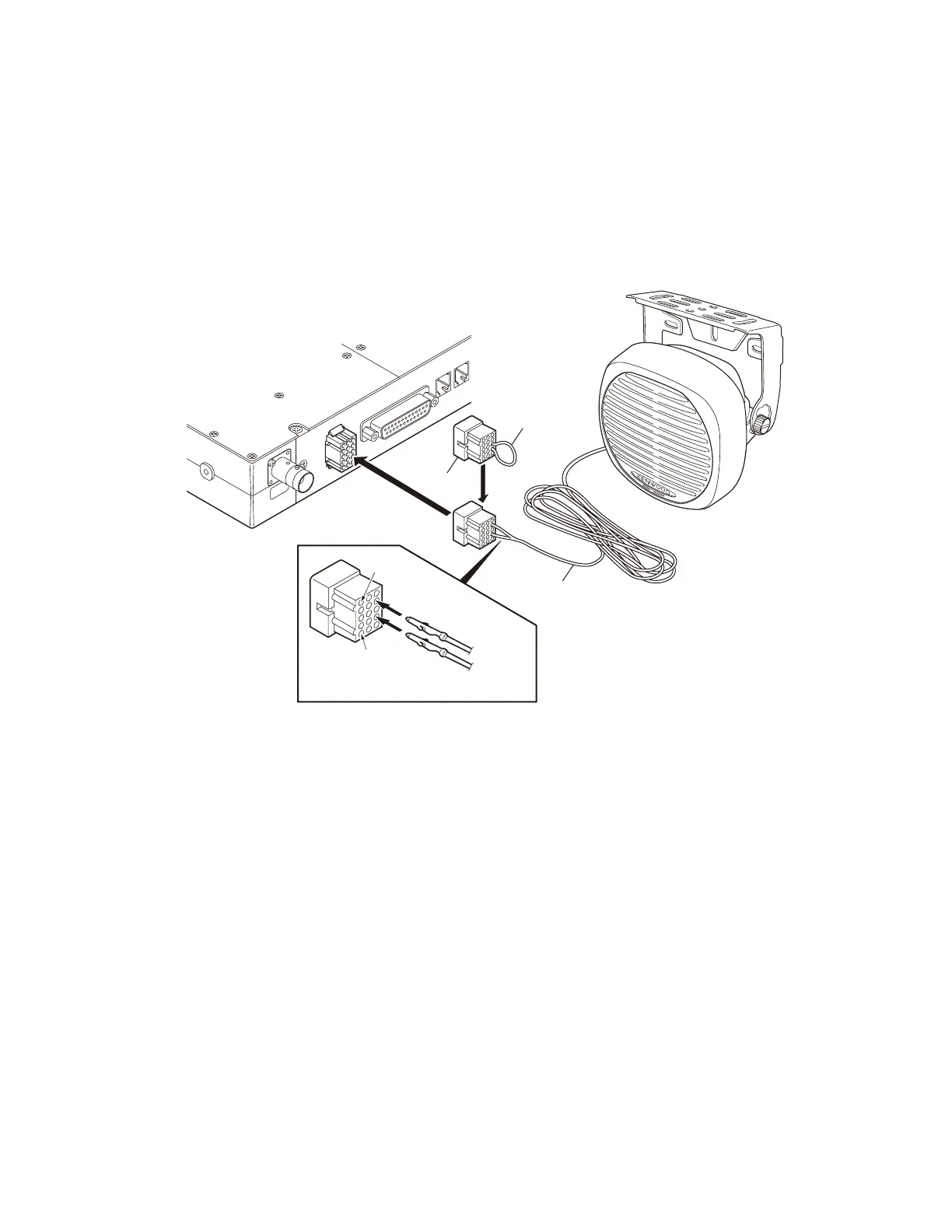

When Using an External Speaker
1. Make sure the unit’s power is tuned off.
2. When using the external speaker, remove the jumper
lead from the connector, and attach the speaker cable.
3. When not using the external speaker, replace the jumper
lead and insert the connector into the speaker jack (pin9
and 12).
Specifi cations
Maximum input power ................................................... 40W
Impedance ......................................................................... 4
Ω
Dimensions (W x H x D) projection not included
..................129 x 129 x 77 mm (51/16 x 5-1/16 x 3 inches)
Weight ............................................................ 820g / 1.81 lbs
TEST/SPKR
RX-IN
CONTROL I/O FRAME
NXR-800
13
1
12
6
Jumper lead
KES-5
Crimp terminal
(E23-0613-05)
Connector
Speaker cable
Black lead
Black/
White lead
To Next Page
