Kenwood NXR-800 Service Manual Supplement

NXR-800
38

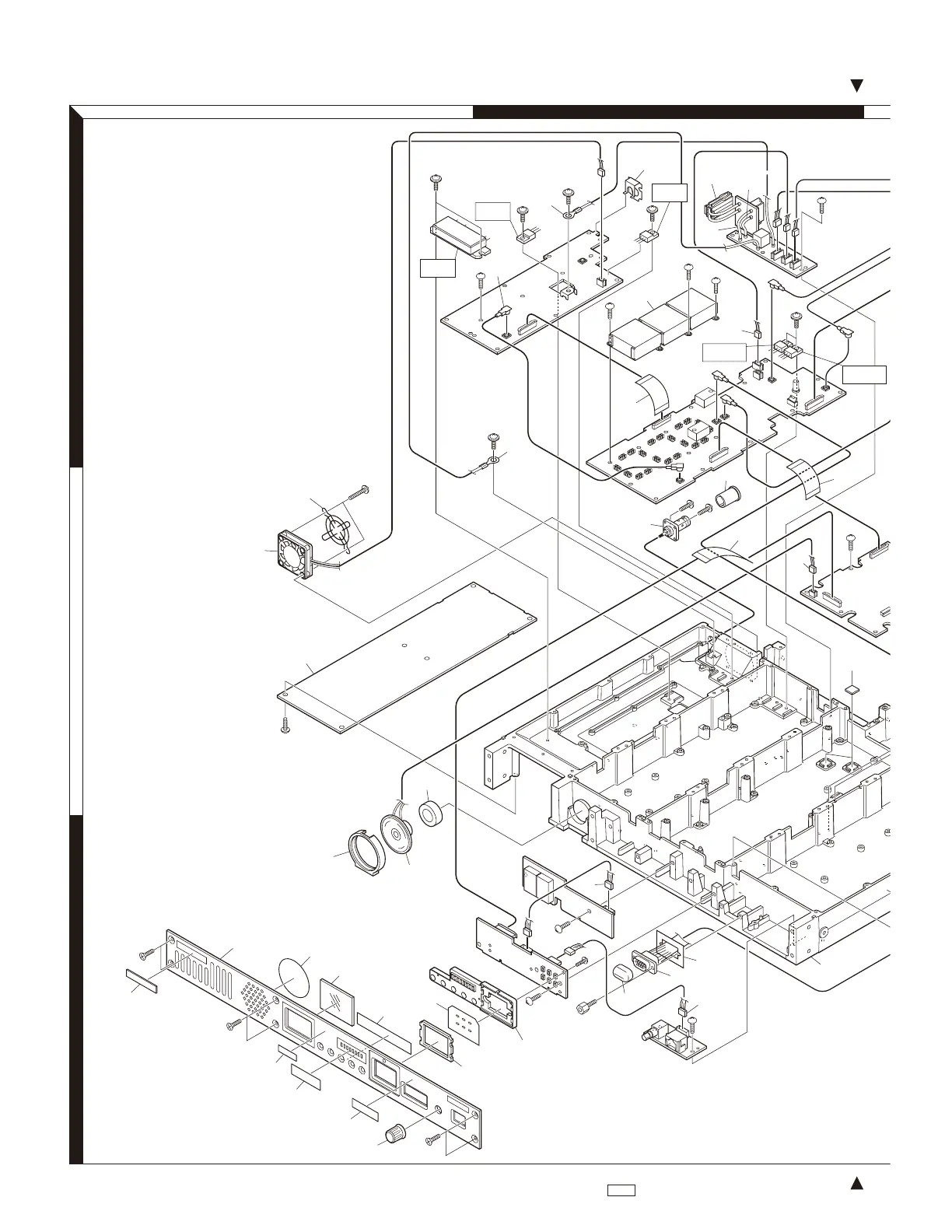

EXPLODED VIEW
3
2
1
BA
X45-382
E/5
X45-382
A/5
X45-382
C/5
X56-312
B/3
X56-312
C/3
X56-312
A/3
704
705
B
F
Ex4
H
Gx2
Gx2
Gx2
L
L
L
701
718
700
J
709
H
H
H
Hx2
Hx2
D
D
L
L
L
L
L
L
703x3
702
IC809
IC11
29
31
32
46
49
40
37
57
4
6
5
42
1
9
7
53
44
39
24
14
19
18
17
17
17
12
43
33
16
21
20
8
IC808
IC12
IC10
B : N09-2292-05
C M2 x 8 : N30-2008-43
D M2.6 x 6 : N30-2606-48
E M3 x 16 : N30-3016-43
F M3 x 6 (F) : N32-3006-43
G M4 x 8 (F) : N32-4008-43
H : N67-3008-48
J : N80-2006-43
K : N80-2608-43
L M2.6 x 8 (Br-Tap) : N87-2608-48
Parts with the exploded numbers larger than 700 are not supplied.
If a part reference number is listed in a box on the exploded view of the PCB (for example,
IC123
), that part does not come with
the PCB. These parts must be ordered separately.
