Kenwood NXR-800 Service Manual Supplement

NXR-800
50

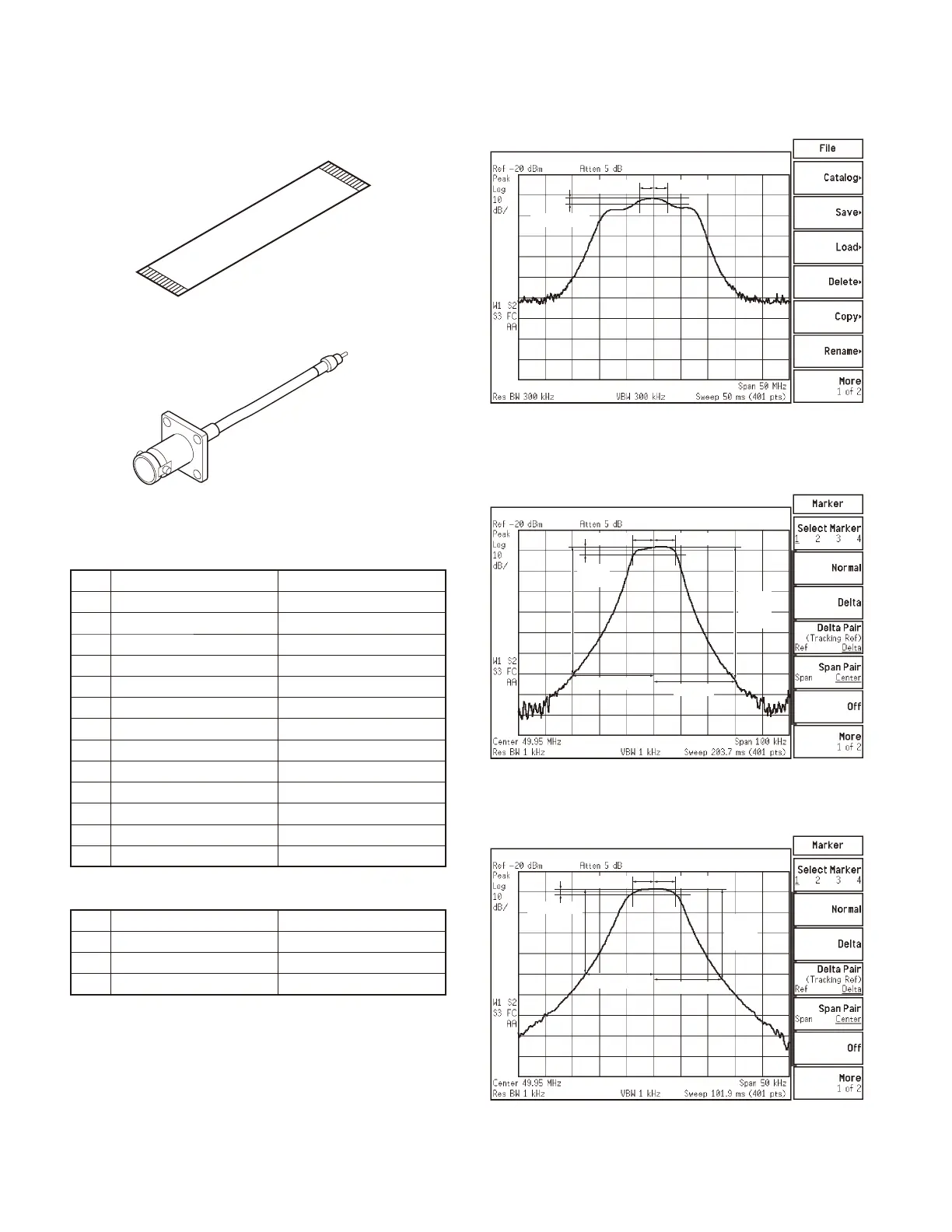

ADJUSTMENT
Test Signaling
■
Analog
No. Decode tone Encode tone
1 None None
2 None 100Hz square wave
3 QT 67.0Hz QT 67.0Hz
4 QT 151.4Hz QT 151.4Hz
5 QT 210.7Hz QT 210.7Hz
6 QT 254.1Hz 1QT 254.1Hz
7 DQT D023N DQT D023N
8 DQT D754I DQT D754I
9 None CWID encode (ID: VVV)
10 None Single tone
11 DTMF decode (Code: 159D) DTMF encode (Code: 159D)
12 None DTMF encode (Code: 9)
13 None Courtesy tone
■
NXDN
No. Decode tone Encode tone
1 RAN1 RAN1
2 RAN1 PN9
3 RAN1 Maximum deviation pattern
• Signaling number 1 is used for link test with voice.
• Signaling number 2 is used for TX modulation signal qual-
ity test. i.e, TX adjacent channel power, FSK error, Occu-
pied bandwidth, Emission mask, etc.
• Signaling number 3 is used for TX deviation test. If the
modulation mode is very narrow, the modulation fre-
quency is 600Hz. If the modulation mode is narrow, the
modulation frequency is 1200Hz.
Flat cable (36-pin) about 256mm (E37-0979-05)
ANT Jig for BPF adjustment (E30-3418-08)
3dB max.
3.75kHz
3.75kHz
More
than
35dB
12.5kHz
12.5kHz
3dB max.
2.5MHz 2.5MHz
3dB
max.
7.5kHz
More
than
55dB
30kHz
30kHz
7.5kHz
Fig. 1
Fig. 2
Fig. 3
BPF center frequency (Production default)
K: 465MHz, K2: 496MHz
Pass bandwidth ±2.5MHz at 3dB
Center frequency: 49.95MHz
Pass bandwidth ±7.5MHz at 3dB
Center frequency: 49.95MHz
Pass bandwidth ±3.75MHz at 3dB
BPF
MCF (Wide)
MCF (Narrow)
