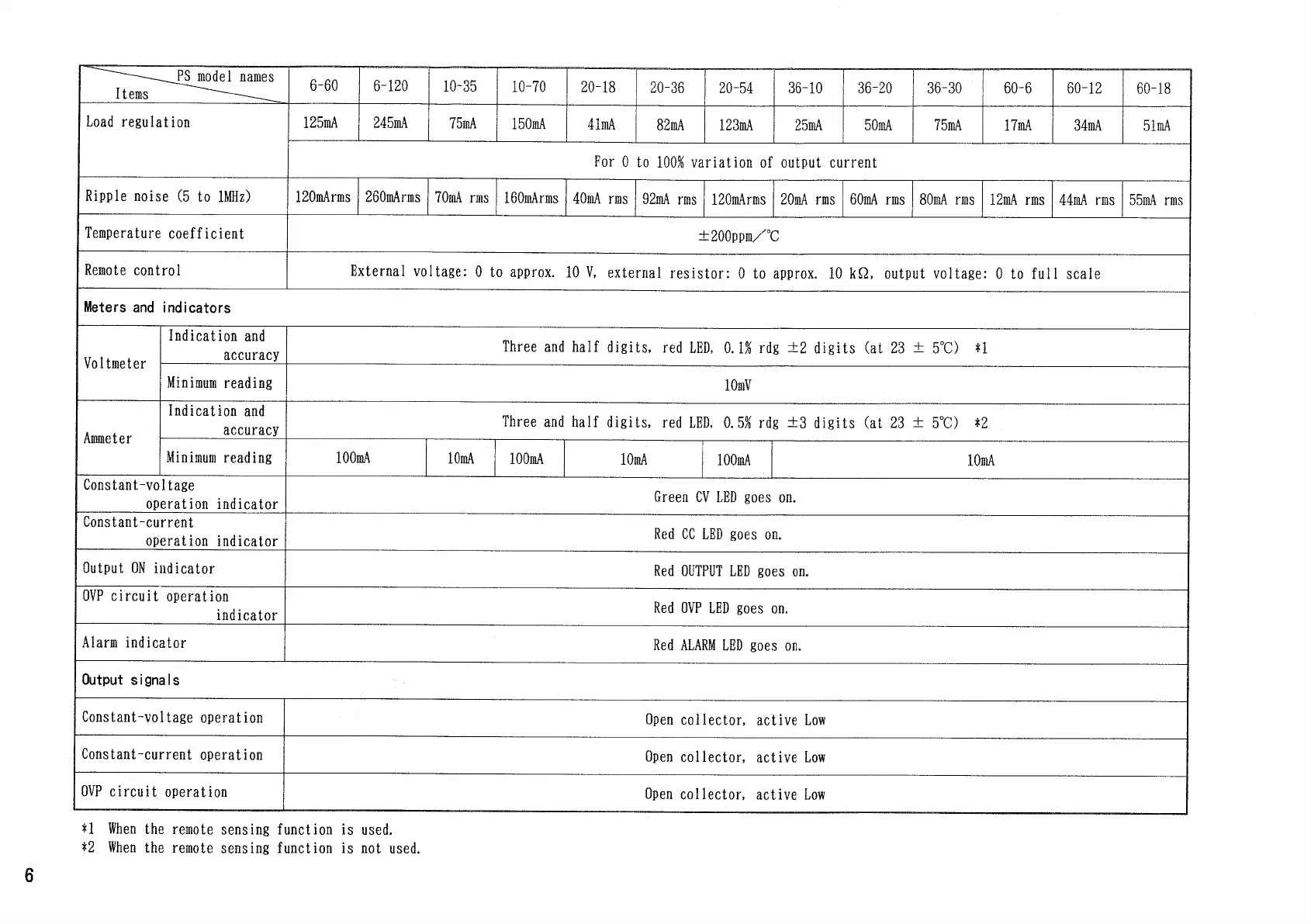

Kenwood PS Series User Manual

Items
__PSmodel names
6-80
6-120
10-35
10-70
20-18
20-36
20-54
36-10
36-20 36-30 60-6 60-12
60-18
Load regulation
125mA
245mA
75mA
150mA
41mA
82mA
123mA
25mA
50mA 75mA 17mA
34mA
51mA
For 0 to 1001 variation of output current
Ripple noise (5 to 1MHz)
120mArms
260mArms
70mA rms
160mArms
40mA rms
92mA rms
120mArms 20mA rms
60mA rms 80mA rms
12mA rms
44mA rms 55mA rms
Temperature coefficient
±200ppm/°C
Remote control
External voltage: 0 to approx.
10 V, external resistor: 0 to
approx. 10 kQ, output voltage
: 0 to ful 1 scale
Meters and
indicators
Voltmeter
Indication and
accuracy
Three and half digits, red LED, 0.1% rdg ±2 digits (at 23
± 5°C) * 1
Voltmeter
Minimum reading
lOmV
Ammeter
Indication and
accuracy
Three and half digits, red LED, 0. 5% rdg ±3 digits (at 23
± 5°C) *2
Ammeter
Minimum reading
100mA
10mA
100mA
10mA
100mA
10mA
Constant-voltage
operation indicator
Green CV LED goes on.
Constant-current
operation indicator
Red CC LED goes on. \
Output ON indicator
Red OUTPUT LED goes on.
OVP circuit operation
indicator
Red OVP LED goes on.
Alarm indicator
Red ALARM LED goes on.
Output signals
Constant-voltage operation
Open col
ector, active Low
Constant-current operation
Open col
ector, active Low
OVP circuit operation
Open col
ector, active Low
*1 When the remote sensing function is used.
*2 When the remote sensing function is not used.
6

Kenwood PS Series Specifications

General

Category	Power Supply
Manufacturer	Kenwood
Input Frequency	50/60 Hz
Dimensions	Varies by model
Weight	Varies by model
Output Voltage	Adjustable
Line Regulation	≤0.01% + 3mV
Load Regulation	≤ 0.01% + 3 mV
Ripple and Noise	≤1mVrms
Display	Digital LED
Model	PS Series
Protection	overvoltage, overtemperature
Input Voltage	100/110/120/220/230/240 VAC (depending on the model and region)
