Kenwood PS Series User Manual

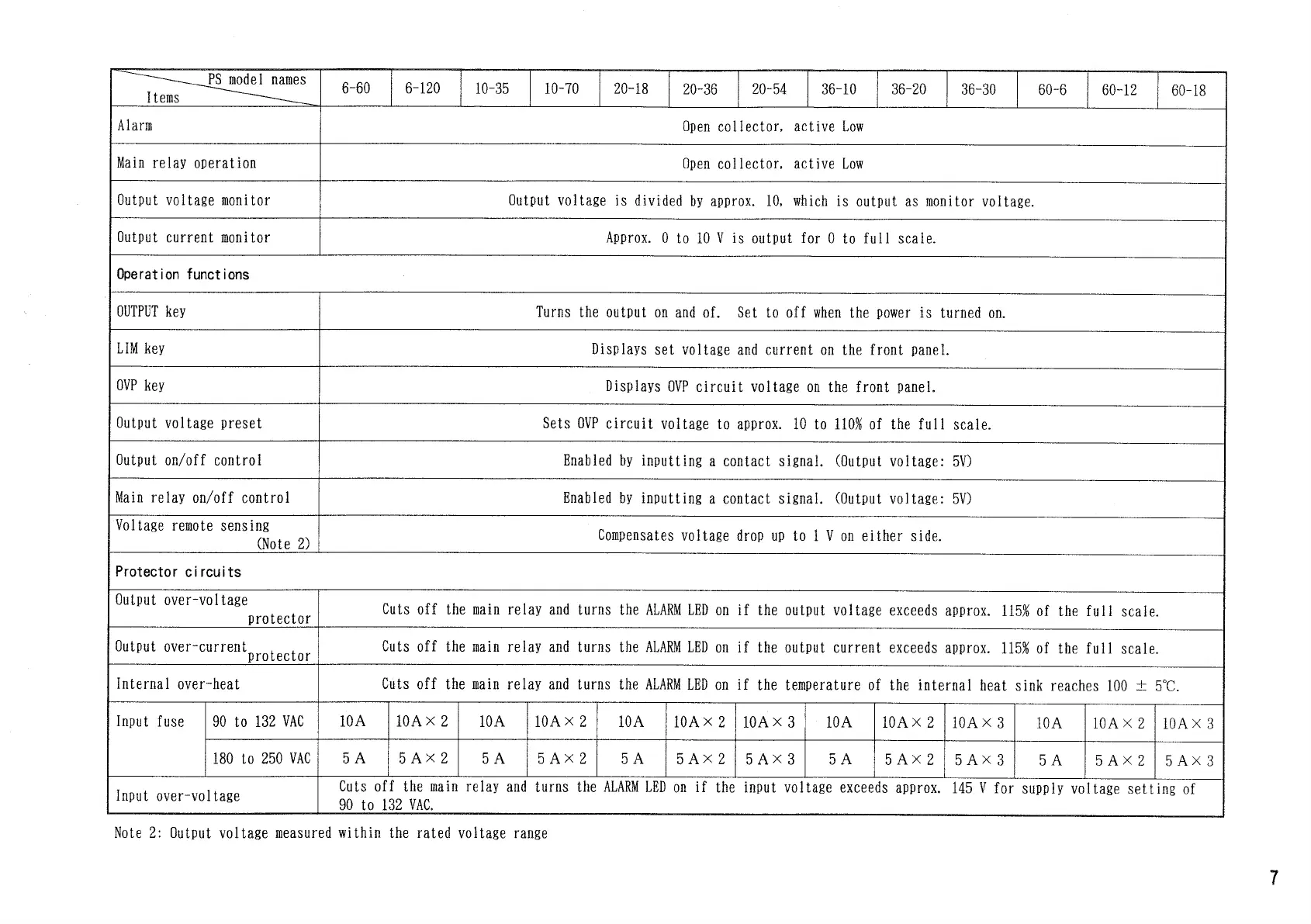

~~ -____PSmode 1 names
Items " —
6-60 6-120
10-35
10-70 20-18
20-36
20-54 36-10 36-20
36-30
60-6 60-12
60-18
Alarm
Open collector, active Low
Main relay operation
Open collector, active Low
Output voltage monitor
Output voltage is divided by approx. 10, which is output as monitor voltage.
Output current monitor
Approx. 0 to 10 V is output for 0 to full scale.
Operation functions
OUTPUT key
Turns the output on and of. Set to off when the power is turned on.
L1M key
Displays set voltage and current on the front panel.
OVP key
Displays OVP circuit voltage on the front panel.
Output voltage preset
Sets OVP circuit voltage to approx. 10 to 1101 of the full scale.
Output on/off control
Enabled by inputting a contact signal. (Output voltage: 5V)
Main relay on/off control
Enabled by inputting a contact signal. (Output voltage: 5V)
Voltage remote sensing
(Note 2)
Compensates voltage drop up to 1 V on either side.
Protector ci rcuits
Output over-voltage
protector
Cuts off the main relay and turns the ALARM LED on if the output voltage exceeds approx. 1151 of the full scale.
Output over-current , .
protector
Cuts off the main relay and turns the ALARM LED on if the output current exceeds approx. 115% of the full scale.
Internal over-heat
Cuts off the main relay and turns the ALARM LED on if the temperature of the internal heat sink reaches 100 ± 5°C.
Input fuse
90 to 132 VAC
10A 10AX 2
10A 10AX 2 10A
10AX 2 10AX 3
10A
10AX 2
10AX 3
10A 10AX 2
10AX 3
Input fuse
180 to 250 VAC
5 A
5 Ax 2 5 A
5 Ax 2 5 A
5 Ax 2
5 AX 3
5 A
5 AX 2
5 AX 3 5 A
5 AX 2
5 Ax 3
Input over-voltage
Cuts off the main relay and turns the ALARM LED on if the input voltage exceeds approx. 145 V for supply voltage setting of
90 to 132 VAC.
Note 2: Output voltage measured within the rated voltage range
7

Kenwood PS Series Specifications

General

Category	Power Supply
Manufacturer	Kenwood
Input Frequency	50/60 Hz
Dimensions	Varies by model
Weight	Varies by model
Output Voltage	Adjustable
Line Regulation	≤0.01% + 3mV
Load Regulation	≤ 0.01% + 3 mV
Ripple and Noise	≤1mVrms
Display	Digital LED
Model	PS Series
Protection	overvoltage, overtemperature
Input Voltage	100/110/120/220/230/240 VAC (depending on the model and region)
