1. Operations for Adjustment
For the general operation method, refer to the User's Manual for the DBS.
1.1 Entering the Service Mode
Use the following procedure to switch from the user mode to the service mode.
(1) Hold down the [←] and [ESC] keys for at least 2 seconds. After
2 seconds, a buzzer sounds.
(2) Release the [←] and [ESC] keys.
(3) Within 1 second, hold down the [→] and [TARE] keys for 3 seconds.

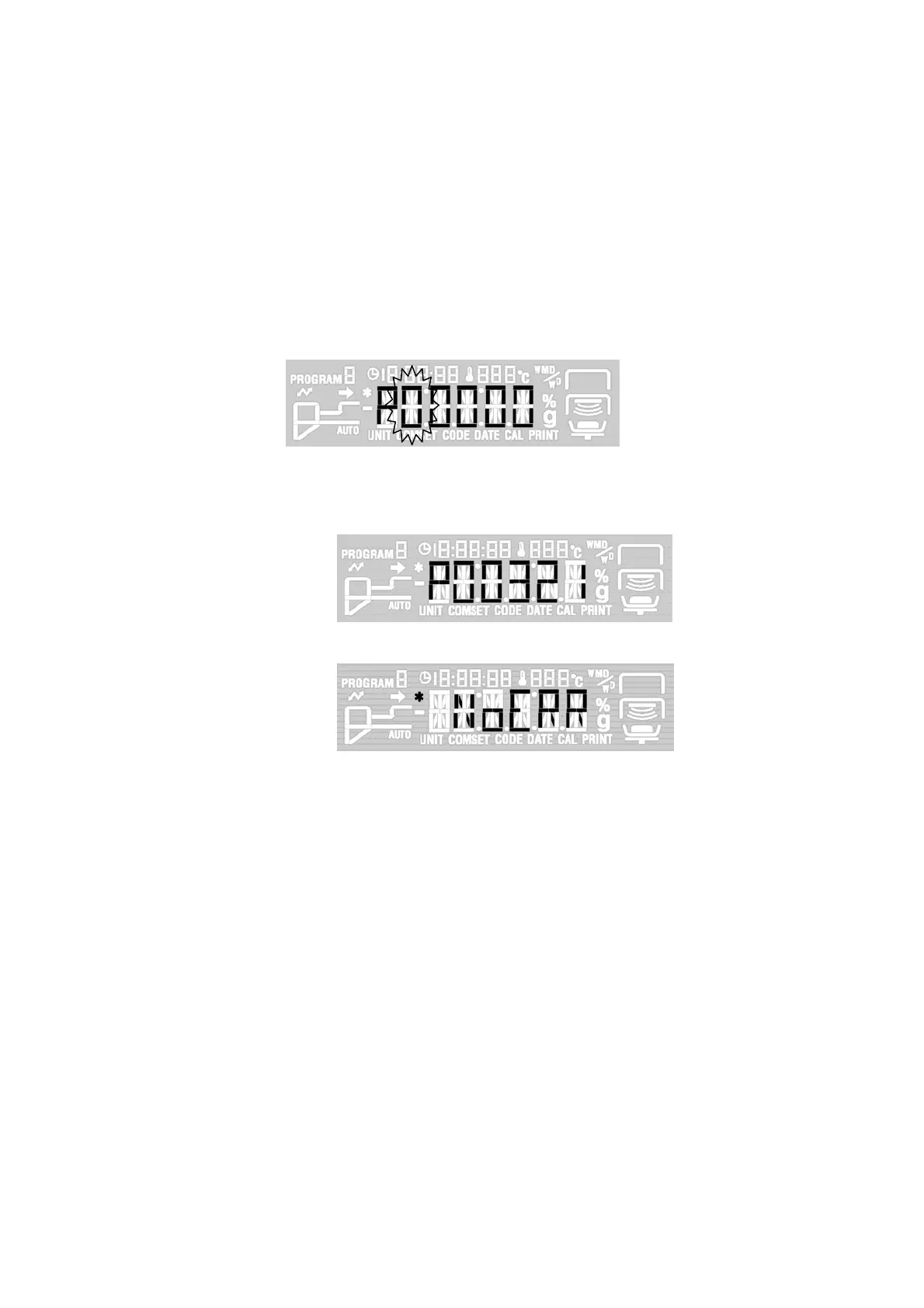

(4) The password input display appears.
Use the arrow keys to enter numbers.
Enter 00321 as the maintenance mode password and press the [Enter]
key.
(5) When the password is approved, the service mode opens.
It is also possible to change from the user mode to the service mode by entering
the maintenance mode command "@SVC=321" into the computer
.
DBS-SH-e-1210 5
