KERN EW - 600 - 2M - Page 21

EW/EG-KB-e-9811 21

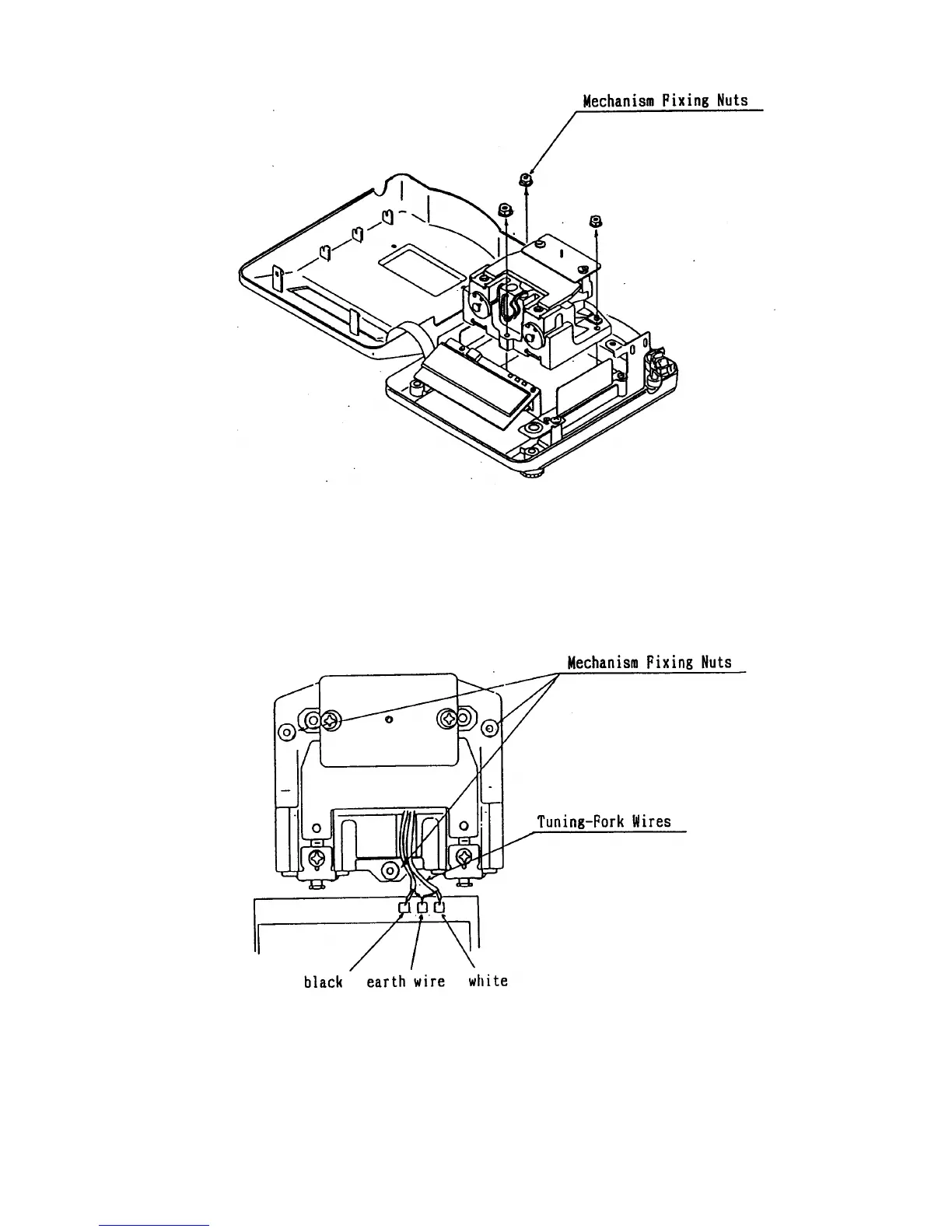

2. How to install weighing mechanism
(1) Place the mechanism on the lower case.
Fix it with three fixing nuts.
(2) Solder wires of the tuning-fork sensor to the DJD circuit board.
3. Cover the scale referring to page 10
