Installation
V 1.0
3.3 Fitting the inlet and outlet
• Set up pipework connections to the domestic installation at inlet
<16> and outlet <35>.
If the connections are to be mutually swapped, remove them together
with the screws <55> and seals <47> and swap them accordingly. Make
sure that the seals have been sufciently lubricated.
3.4 Mounting the direct disposal pipe
System variant B
Do not deburr the drilling edges for optimum sealing.
• Use the screws <42> to t attachment clamps <34> to the seats <A
and B> on the system tank.
• Prepare drill hole <C> in the scored area (drilling adapter, Ø
118 mm).
• Insert the all-round seal <44> into the drill hole.
• Push the direct disposal pipe <18> into the all-round seal and t on the attachment clamps <34>.
• Braided hose with 2 screw clamps and 10 Nm torque to connect PE pipe DN 70 with bead.
If it is passed to a steel tube with longitudinal force-t connection.
•
•
•
•
•
•
•
16 47
35
47
C
55
55

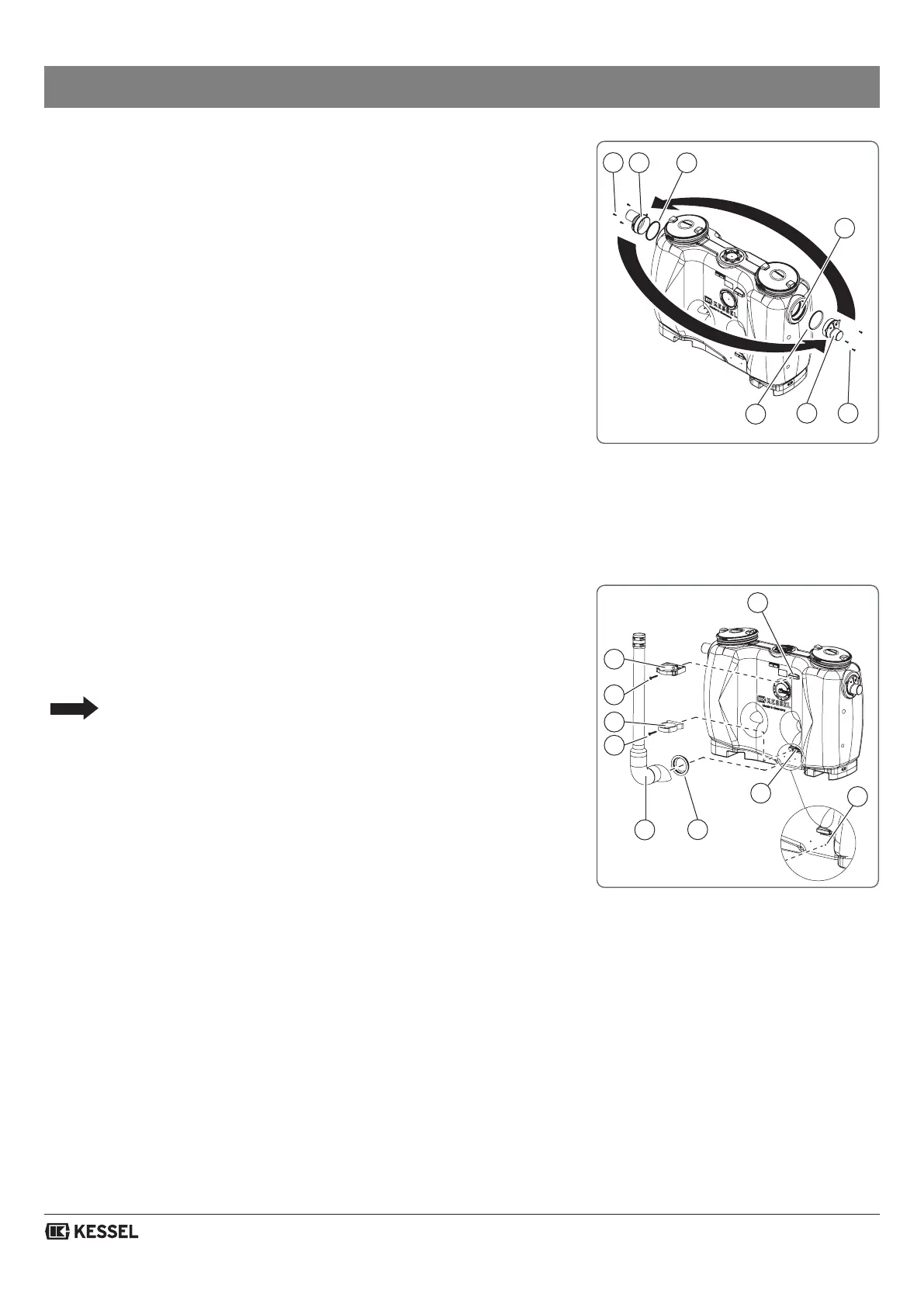

Abb. [2]
18
34
34
A
B
42
42
44
C
