Kessel EasyClean - Dimensional and Weight Information; Dimensional Drawing and Weight Table

Technical data
39 / 48V 1.0

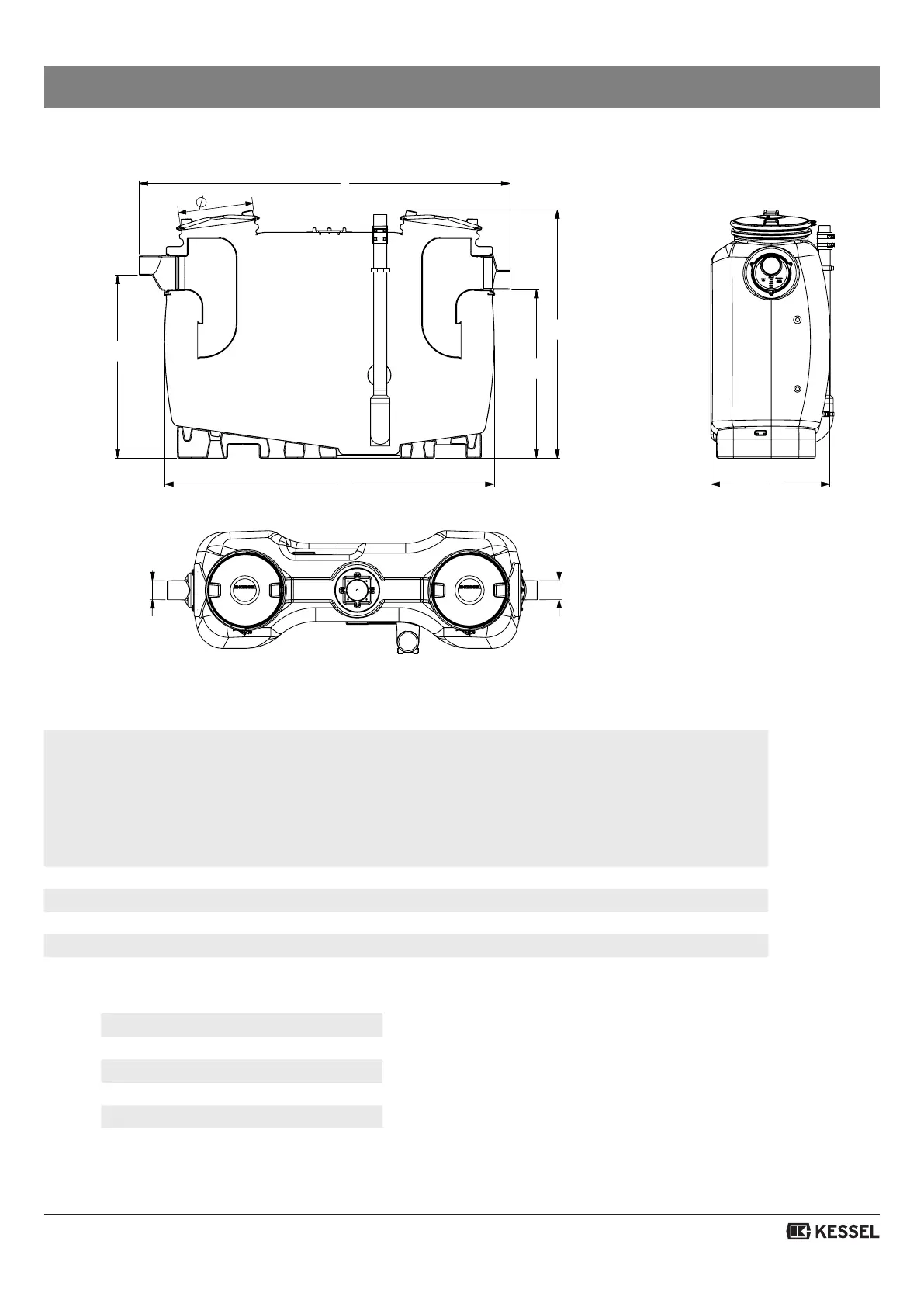

5.3 Dimensional drawing and weight table
Nominal size DN OD a Installation I Installation b h1 h2 h3 Wastewater content sludge trap Wastewater content separator Grease separator Total volume
NS 2 100 110 1500 1735 680 985 1055 1435 200 l 400 l 100 l 600 l
NS 3 100 110 1500 1735 680 985 1055 1435 300 l 300 l 120 l 600 l
NS 4 100 110 1880 2115 680 985 1055 1435 400 l 400 l 160 l 800 l
NS 7 150 160 1910 2145 940 1185 1255 1655 700 l 650 l 280 l 1350 l
NS 10 150 160 2590 2820 940 1185 1255 1655 1000 l 900 l 400 l 1900 l
Weight empty (approx. kg) Version D
NS 2
69
NS 3
74
NS 4
87
NS 7
135
NS 10
181
l
h2
h1
h3
a
420
b
DN/OD
D
O
/
N
D
Abb. [7]
l
h2
h1
h3
a
420
b
DN/OD
D
O
/
N
D
