Installation
35 / 48V 1.0
Fettabscheider > NS 10
Behälterwand < = 10 mm
Sensorkabel
Kabelverschraubung*
Bohrung ø 14,5 mm
86
M16 x 1,5

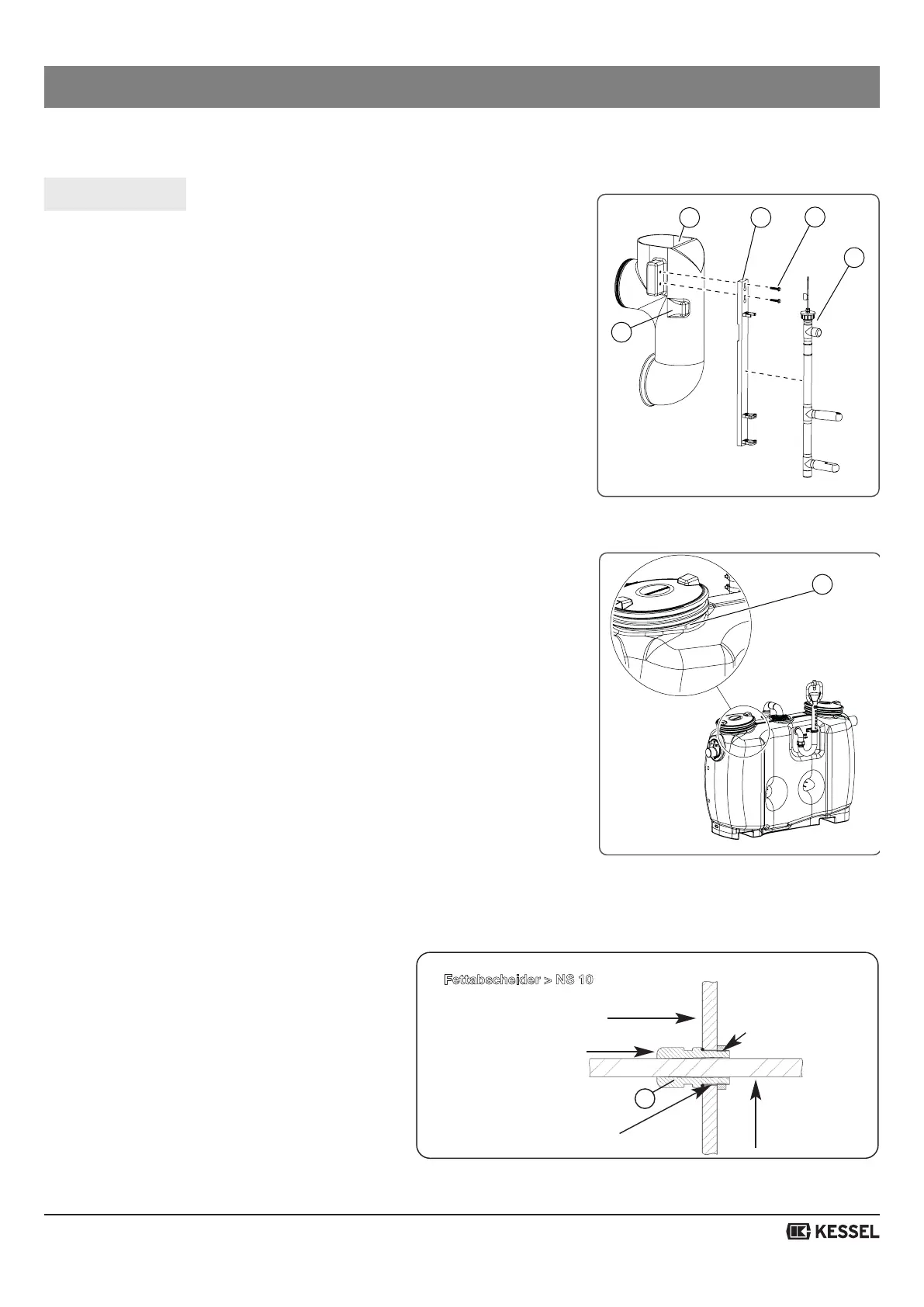

3.5 Fitting the SonicControl sensor (option) - F
C D E F
• Open the inspection cover above the outlet tting.
• Use the screws <81> to t the sensor holder <82> to the outlet tting
<83> as shown.
• Fix the sensor <84> to the bracket and turn against the stop<85>
• Prepare a circular opening <A> (Ø 19 mm) and t the cable duct
provided.
• Route the sensor cable through the cable duct <86>. Make sure
that the cable duct has been tted properly and is screwed closed.
For maintenance purposes, approx. 1 m of cable must be left so
that the sensor can be pulled out of the system tank.
• In the case that the inlet / outlet of the EasyClean grease separator
are swapped, the SonicControl must be located in the outlet side
of the grease separator.
•
• To accomplish this the blind plug on the inlet side of the grease
separator and the cable socket (A)(M16x1.5) located on the outlet
side of the grease separator must be interchanged.
• Close the inspection cover.
81
84
82
83
85
Abb. [3]
A
Abb. [4]
Abb. [25a]
