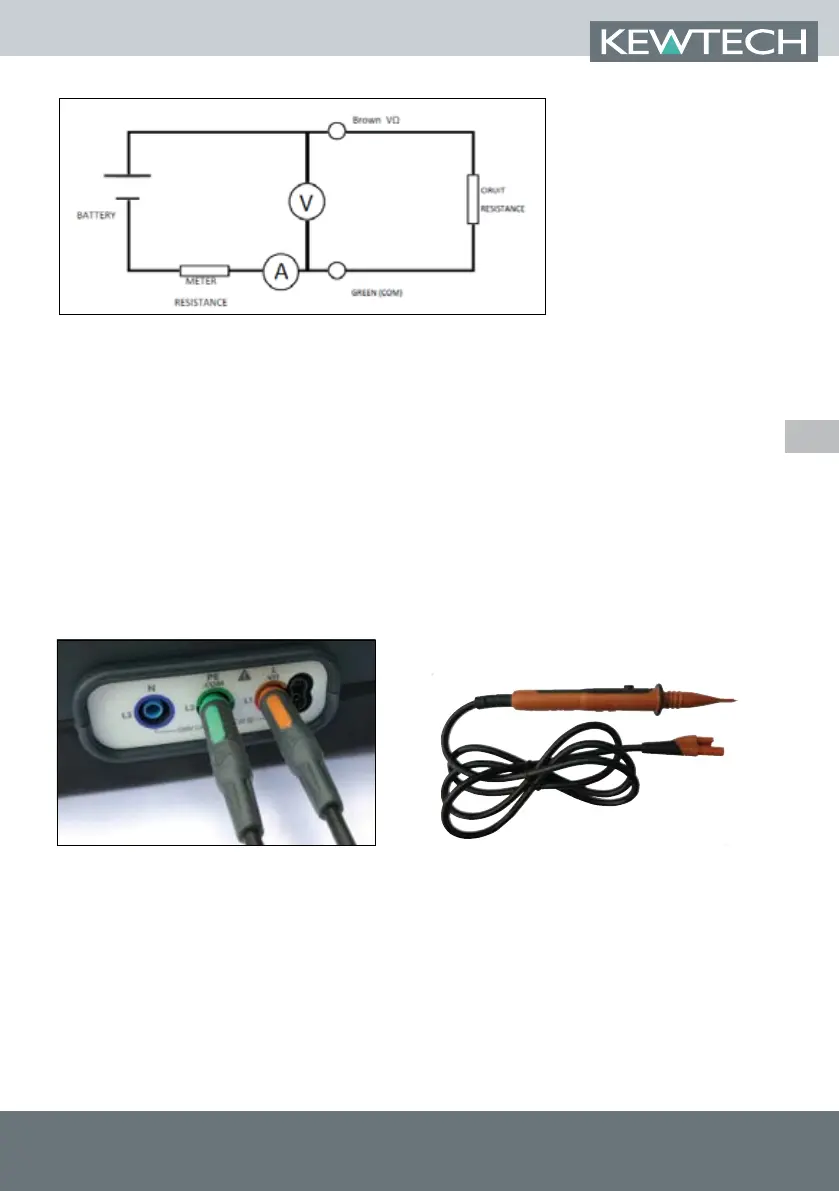

During continuity measurement current ows from battery positive through the Brown (VΩ)
lead, external circuit resistance, Green (COM) lead, meter resistance and nally back to the
battery negative.
The current and voltage are measured as shown and the external resistance calculated.
When the leads have previously been nulled, their resistance is subtracted before displaying
the reading.
The purpose of Continuity Testing is to establish the resistance of the circuit under test.
Test Procedure
Insert the brown test lead into the brown input terminal & the green test lead into the green
terminal.
The brown test lead can be substituted by using the brown remote test probe supplied. This
allows remote activation of the KT63 PLUS from the safety of the test probe ensuring that you
are always looking at the point of contact and not the KT63 PLUS.
