The test will be inhibited if the wiring has incorrect polarity on the circuit under test.
Rotate the function selector switch to ‘NO TRIP’
Connect the test lead to the socket/circuit under test.
Providing that the connections are correct and the supply voltage is within the correct range
the VOLTAGE/POLARITY LED will light Green, the Kewtech KT63 PLUS will start taking some
background measurements and will display the Line Neutral supply voltage
Voltage will be displayed. Then press the test button.

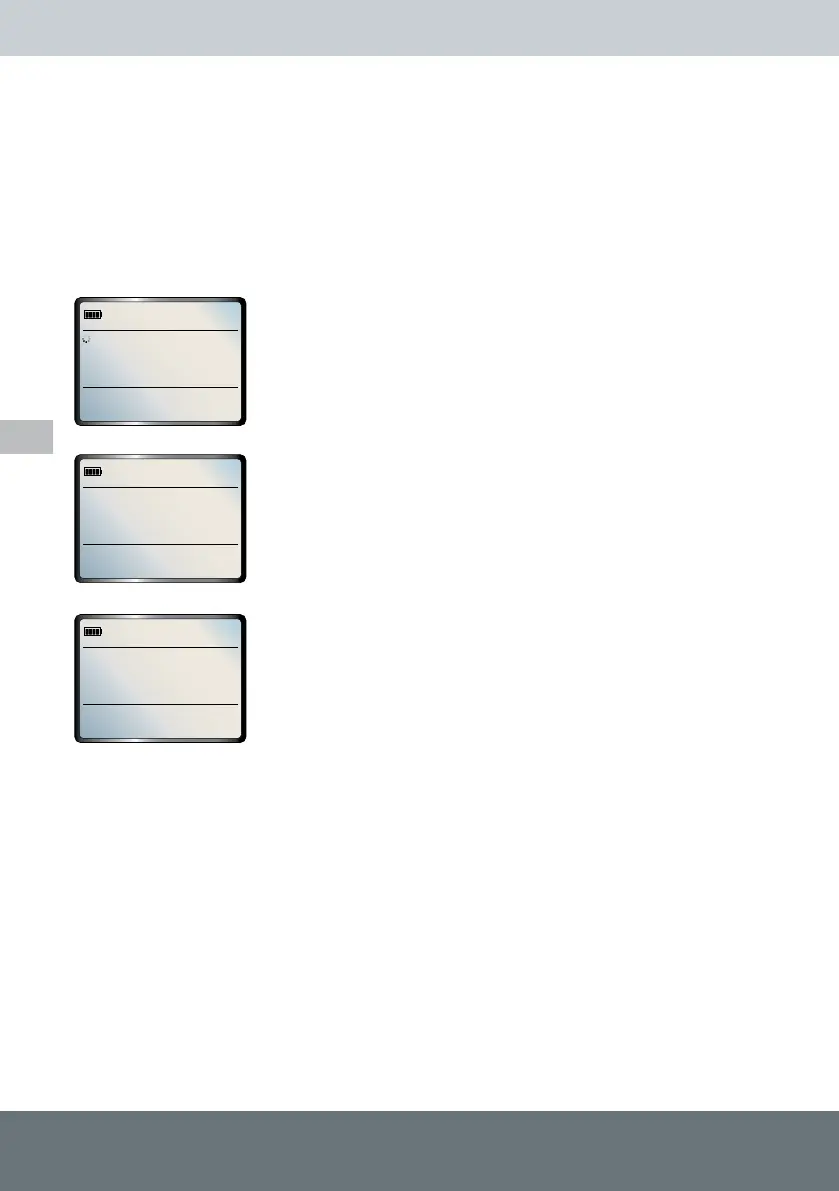

The screen will show a symbol and the word TESTING.
The result of the test will be shown in the primary display.
A single press of the PFC PSC / Loop button will toggle the display
so that the PFC is shown in the primary display and the impedance
in the secondary display. A further press will toggle the results
between the primary and secondary displays.
The leads are an integral part of the tester set-up and should accompany the tester when being
returned for re-calibration or service. Do not use any other type of mains lead or test lead set.
0.71
Ω
Loop
A
PFC
345.2
245
V
Vln
Ω
LOOP
0.71
TESTING
V
VLN
242
