Key-Disp KD51C-D - Product Model; Specifications; Appearance and Size

1
Product model
E-bike Intelligent LCD display
Model: KD51C-D
Specifications
●
24V/36V/48V Power Supply
●
Rated working current :10mA
●
The maximum working current: 30mA
●
Off-state leakage current: <1μA
●
Operating temperature: -20℃~ 60℃
●
Storage temperature: -30℃~ 70℃
Appearance and Size

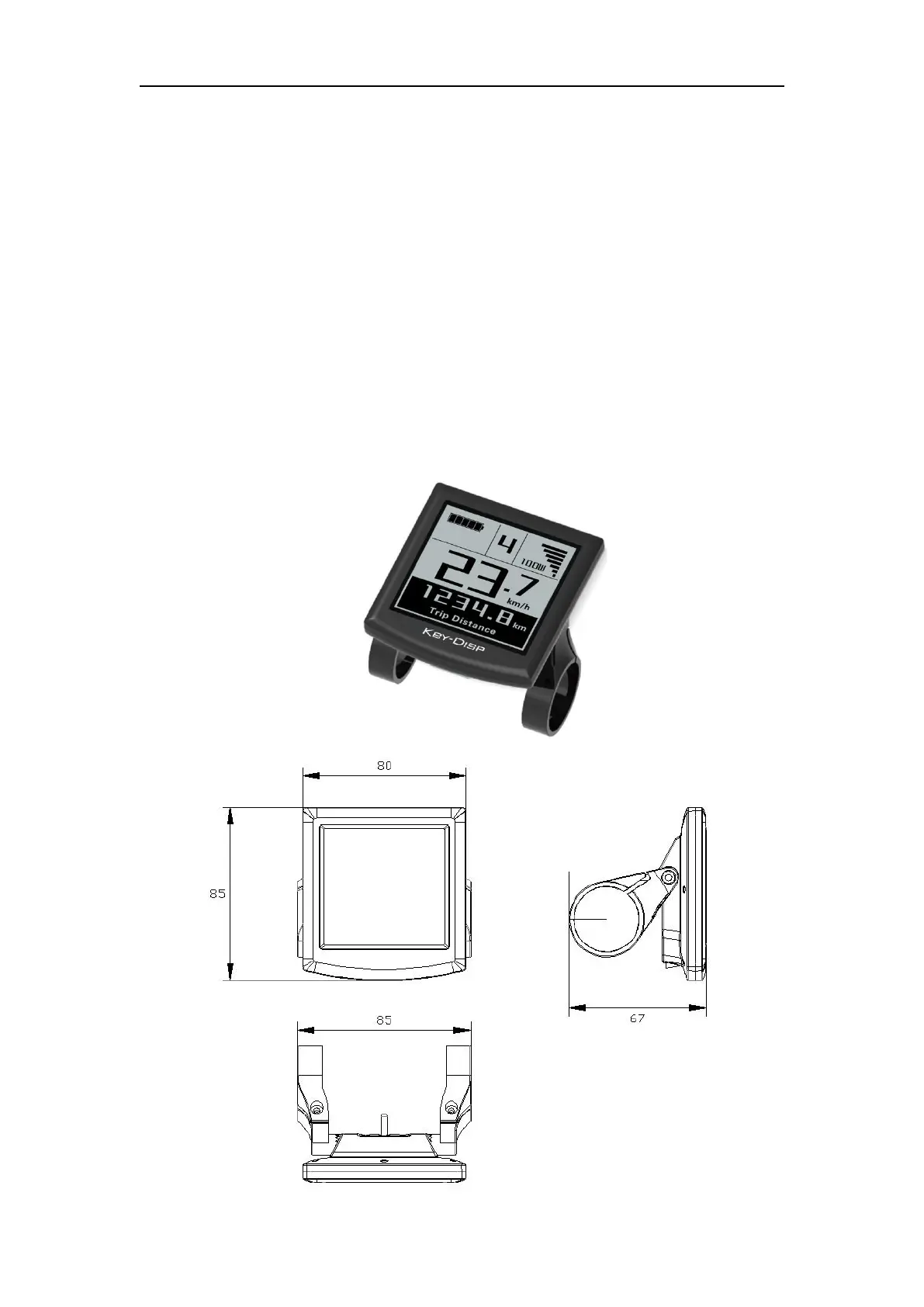

Product appearance and dimension drawing (unit: mm)
