2Quick Start

50 Keysight E3633A and E3634A Service Guide

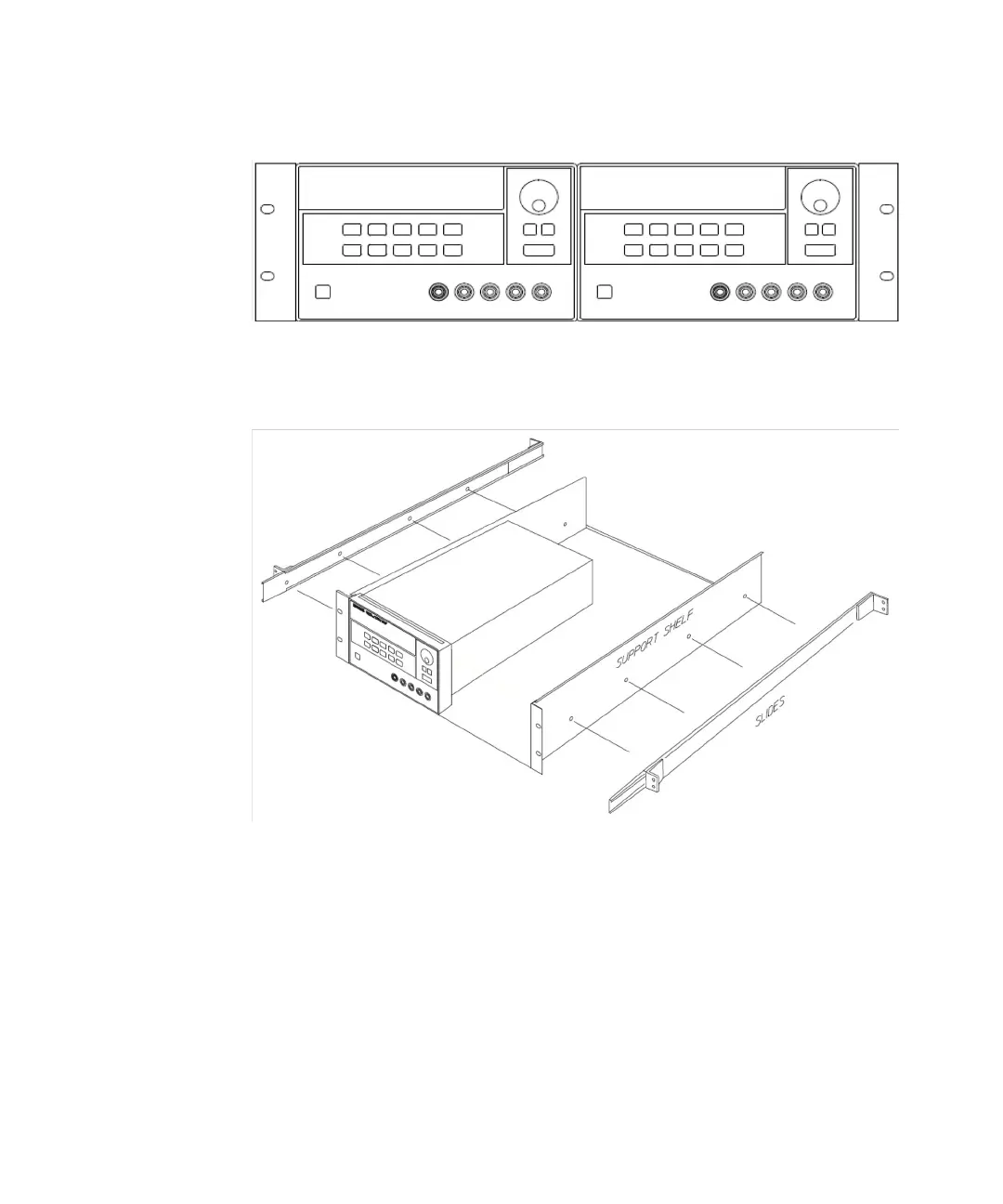

To rack mount two instruments of the same depth side-by-side, order lock-link

kit 5061-9694 and flange kit 5063-9214.

To install two instruments in a slid ing support shelf, order support shelf

5063-9256, and slide kit 1494-0015.
