7 Characteristic and Specifications

190 E364xA User’s and Service Guide

Physical Characteristics

Table 7-1 Physical characteristics

Parameters E3646A E3647A E3648A E3649A

Dimensions (W x H x D) 212.8 mm × 133 mm × 348.3 mm

Weight Net 8.2 kg 8.0 kg 9.2 kg 9.1 kg

Shipping 10.1 kg 9.9 kg 11.1 kg 11.0 kg

Cooling Fan cooled

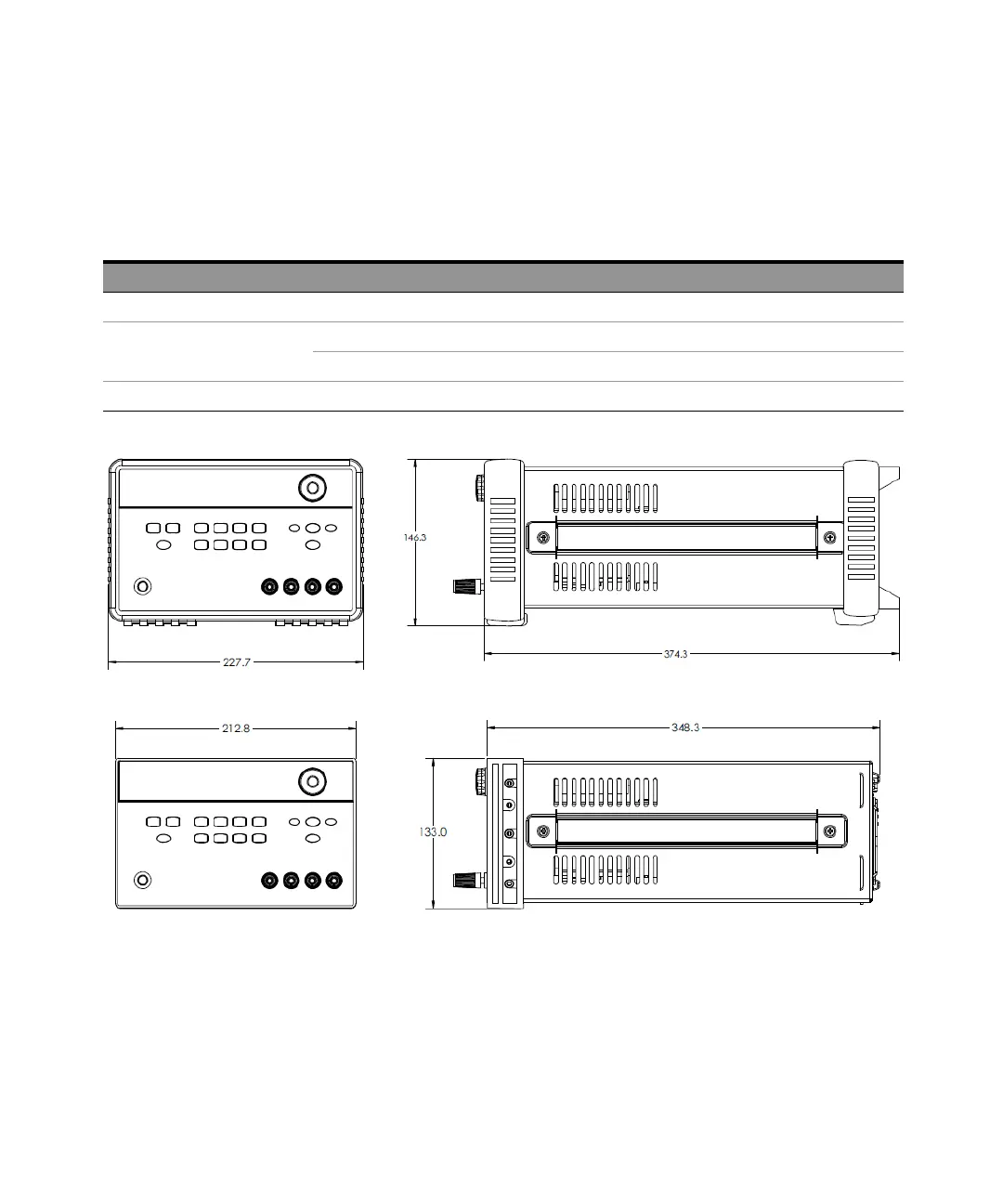

Figure 7-1 E364xA dimensions
