Measurements 14
Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide 229
Rise Time
The rise time of a signal is the time difference between the crossing of the lower
threshold and the crossing of the upper threshold for a positive-going edge. The X
cursor shows the edge being measured. For maximum measurement accuracy, set
the horizontal time/div as fast as possible while leaving the complete rising edge
of the waveform on the display. The Y cursors show the lower and upper threshold
points.
Fall Time
The fall time of a signal is the time difference between the crossing of the upper
threshold and the crossing of the lower threshold for a negative-going edge. The X
cursor shows the edge being measured. For maximum measurement accuracy, set
the horizontal time/div as fast as possible while leaving the complete falling edge
of the waveform on the display. The Y cursors show the lower and upper threshold
points.

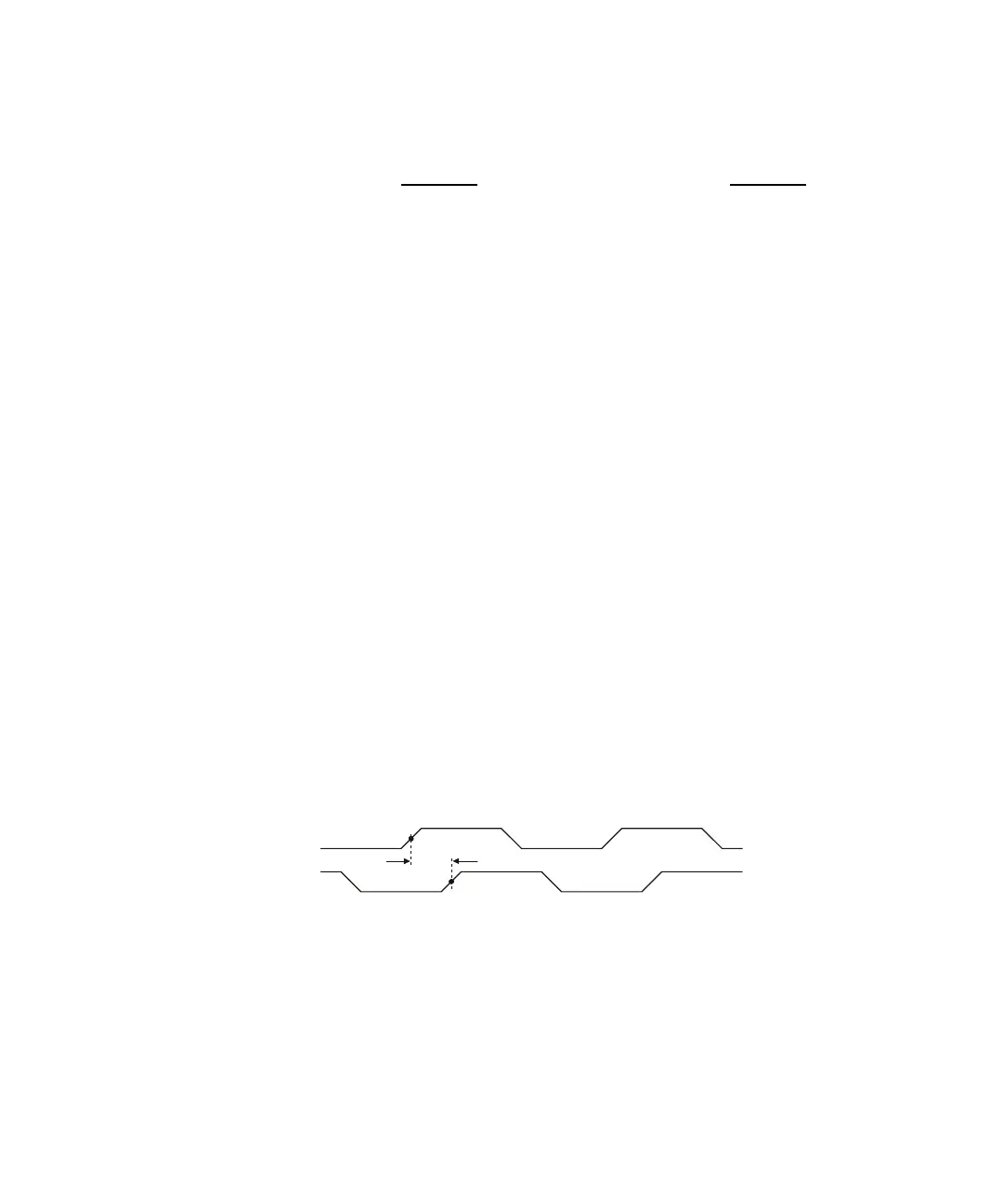

Delay
Delay measures the time difference from the selected edge on source 1 and the
selected edge on source 2 closest to the timebase reference point at the middle
threshold points on the waveforms. Negative delay values indicate that the
selected edge of source 1 occurred after the selected edge of source 2.
1 Press the [Meas] key to display the Measurement Menu.
2 Press the Source softkey; then turn the Entry knob to select the first analog
channel source.
3 Press the Type: softkey; then, turn the Entry knob to select Delay.
4 Press the Settings softkey to select the second analog channel source and slope
for the delay measurement.
+ Duty cycle =
+ Width
Period
× 100 − Duty cycle =
− Width
Period
× 100
