Use the Gain (A) softkey to specify the gain.
Use the Offset (B) softkey to specify the offset.
The Ax + B function differs from the Magnify math visualization function in that the
output is likey different than the input.
See Also • "Magnify" on page 96
Square
The square function (available with the advanced math measurements license)
calculates the square of the selected source, point by point, and displays the
result.
Press the Source softkey to select the signal source.
See Also • "Square Root" on page 90

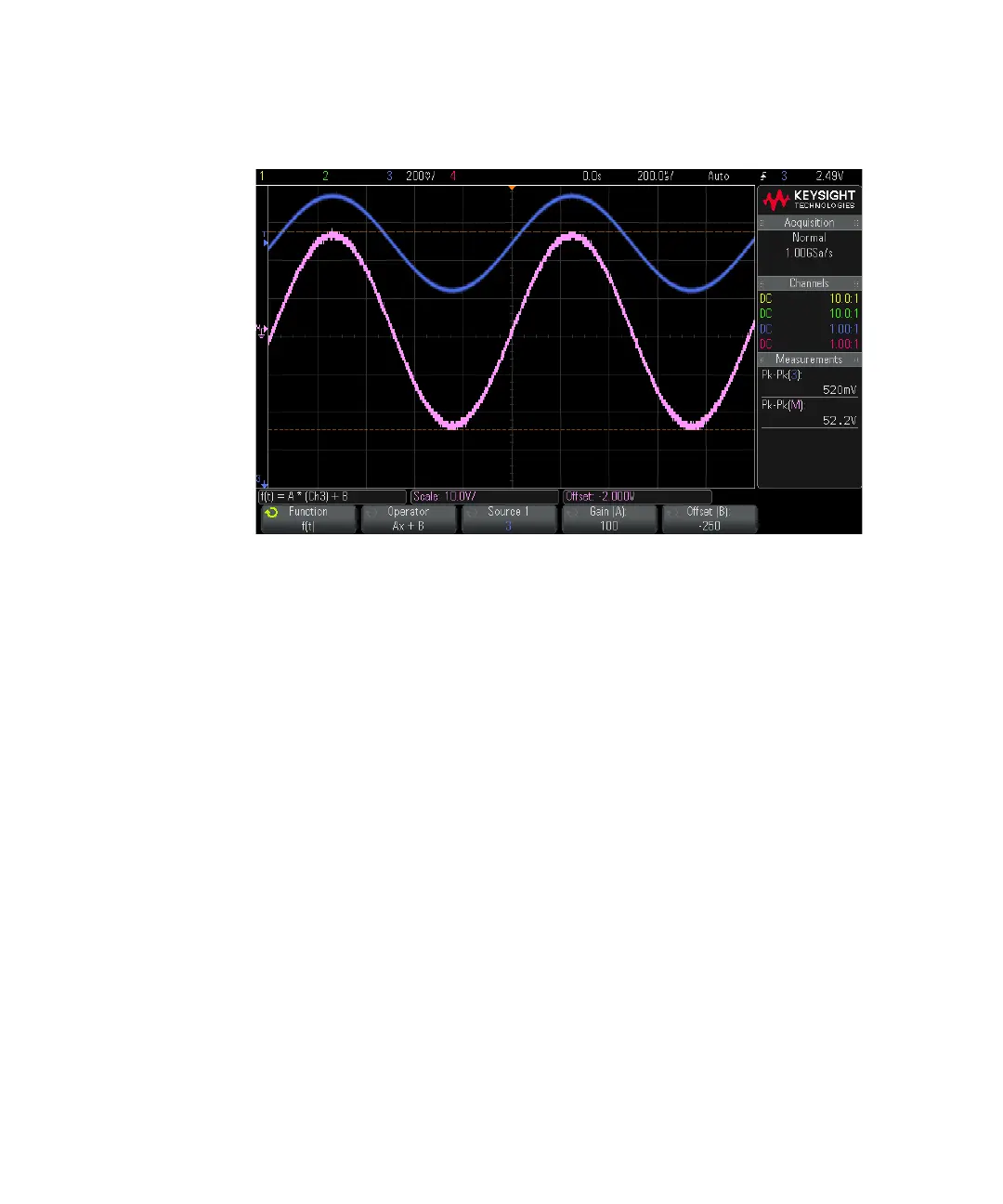

Figure 11 Example of Ax + B
