Math Waveforms 4
Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide 93
Natural Logarithm
The Natural Logarithm (ln) function (available with the advanced math
measurements license) performs a transform of the input source. Where the
transform is undefined for a particular input, holes (zero values) appear in the
function output.
See Also • "Common Logarithm" on page 92
Exponential
The Exponential (e^x) function (available with the advanced math measurements
license) performs a transform of the input source.
See Also • "Base 10 Exponential" on page 93
Base 10 Exponential
The Base 10 Exponential (10^x) function (available with the advanced math
measurements license) performs a transform of the input source.

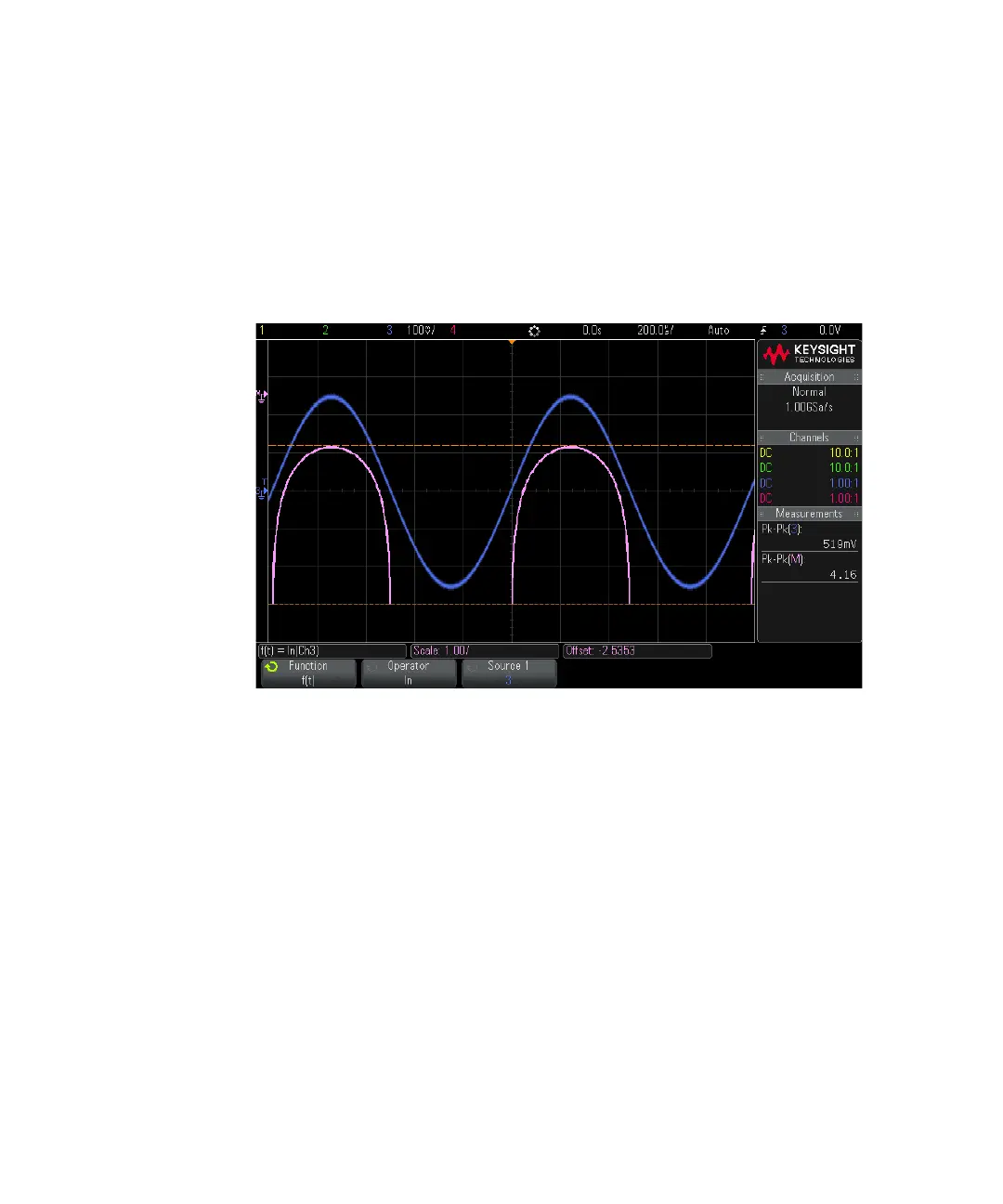

Figure 13 Example of Natural Logarithm
