Web Interface 21

Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide 313

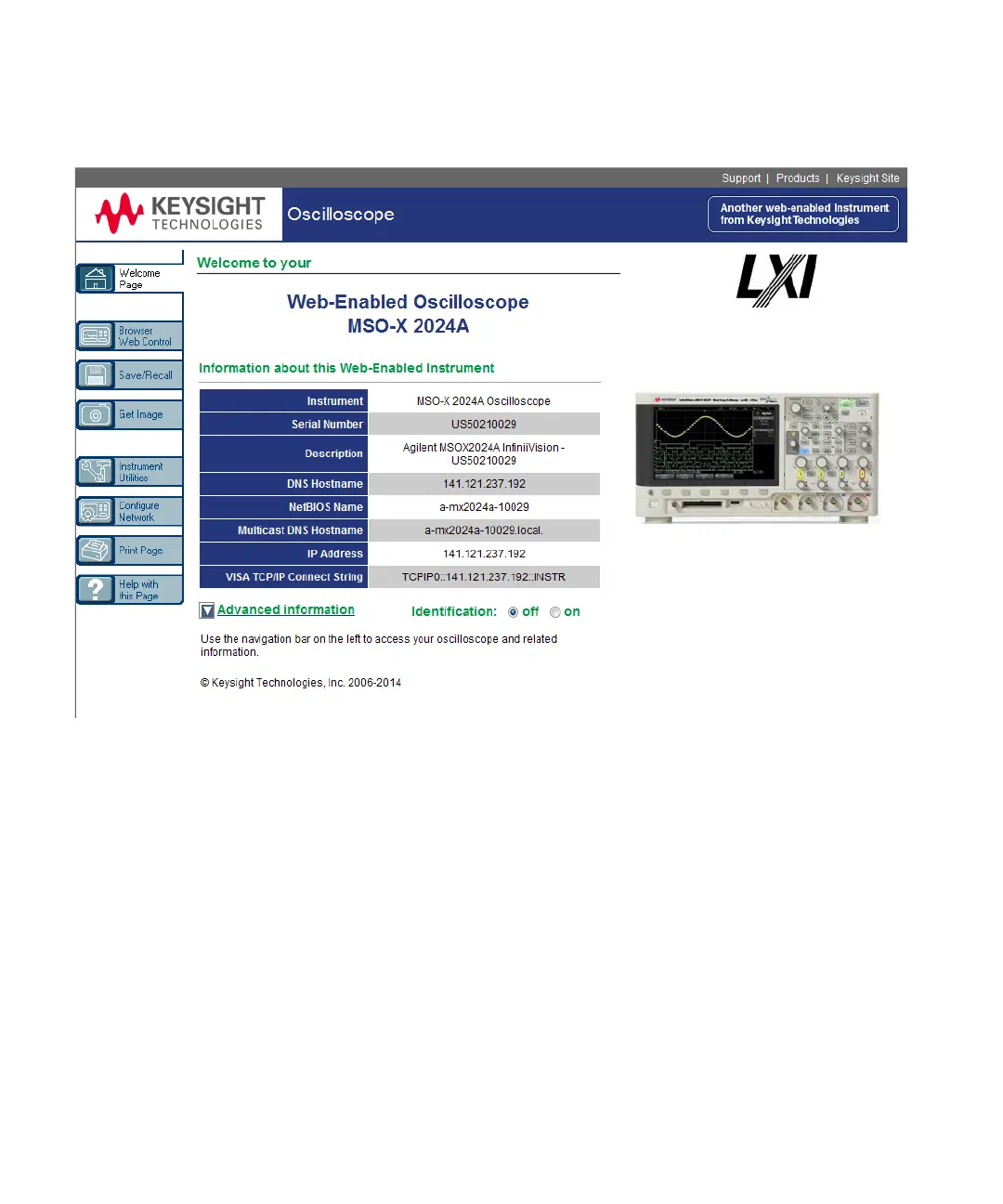

Browser Web Control

The web interface's Browser Web Control page gives you access to:

• The Browser-Based Remote Front Panel (see "Browser-Based Remote Front

Panel" on page 314).

• The SCPI Command window applet for Remote Programming (see "Remote

Programming via the Web Interface" on page 314).
