Keysight Technologies N5991

Keysight N5991 HDMI Frame Generator User Guide 11
Test Instrument Setup 2
M8195A Two Module setup
This setup consists of two M8195A 2-channel modules and a M8197A
multi-channel synchronization module.

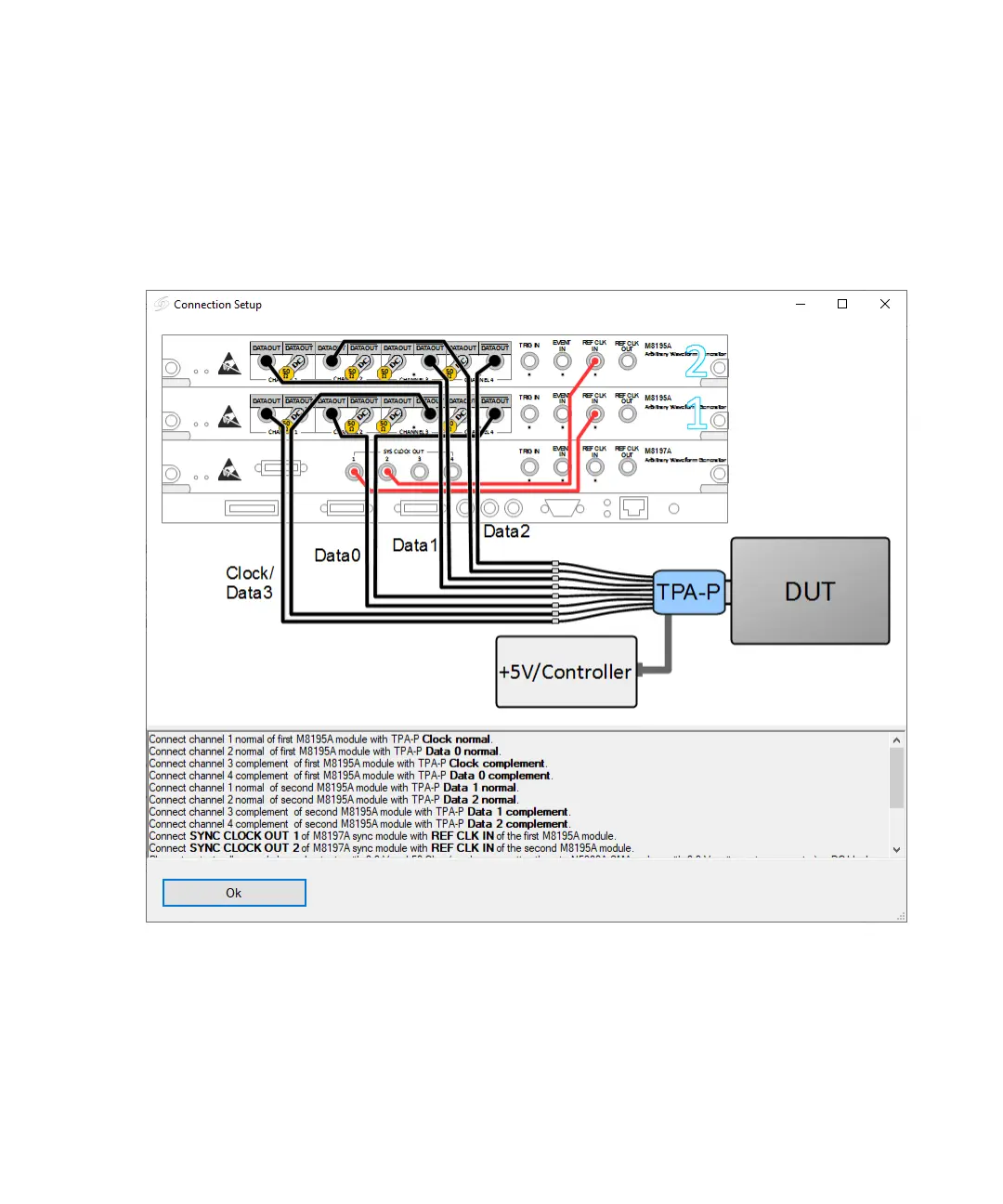

Figure 2 Connection diagram for an M8195A two module setup
