30 Keysight N5991 HDMI Frame Generator User Guide
3 Using the Software
Save / Load Settings dialog
Once all parameters are set as desired, use the “Save / Load Settings”
dialog to manage settings, either as single setting or as setting lists as
shown in Figure 16.

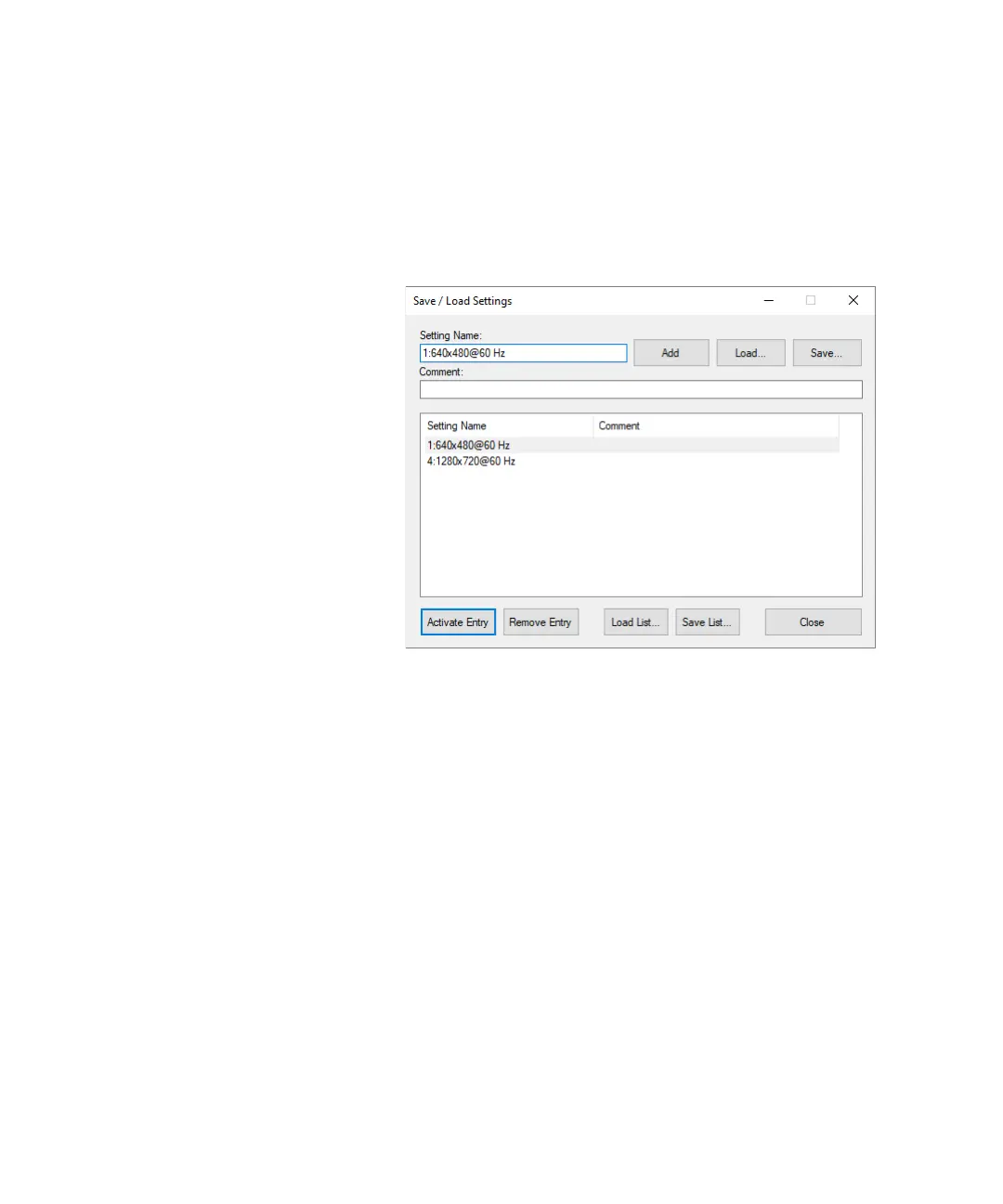

Figure 16 Save / Load Setting dialog
The “Setting Name” contains the name of the actual setting and can be
modified by the user. This name is replaced by a default name even if one
of the controls on the main window changes the mode.
You can add a comment in the “Comment” text box.
Each setting contains all setting values that are visible in the main window
and the frame timing setup dialog. It does not contain the images itself but
the file names of the images. For each setting, you can do one of the
following actions:
• click “Add” to add the setting name to the list of settings,
• click “Save” to save the setting on the hard disk as a setting file, or
• click “Load” to load a setting from the hard disk.
The setting list contains all the settings that have been added using the
“Add” button described above. To manage this setting list:
