10 Keysight N5991 HDMI Frame Generator User Guide
2 Test Instrument Setup
M8195A Single Module setup
This setup consists of a limited HDMI test configuration.
It does not have any instrument intra-pair skewing capability, can only
reach up to around 8Gbit/s and does not support FRL testing.

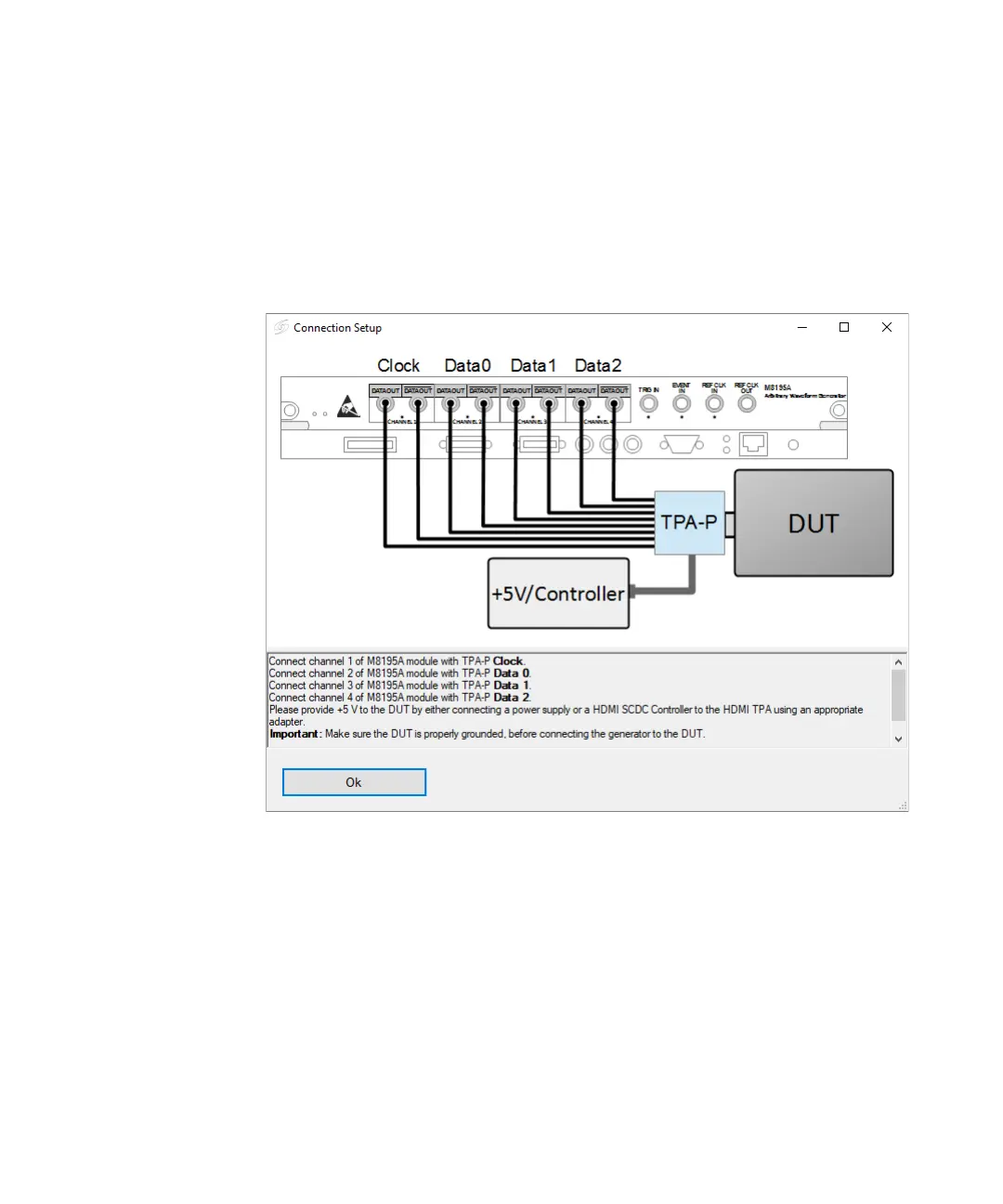

Figure 1 Connection diagram for an M8195A single module setup
For a full coverage of HDMI PHY testing, the M8195A two module setup
(shown further) is required.
