30 X-Series Signal Analyzers Getting Started and Troubleshooting Guide
Front and Rear Panel Features
Display Features
Measurement Display
This area shows the measurement results in graphical and tabular form. You
can interact with this area using pinch, drag, scroll and tap gestures.
On the signal:
Horizontal pinch - changes the span of the analyzer
Horizontal drag - changes the center frequency
Vertical pinch - changes the vertical scaling
Vertical drag - changes the reference level
Markers may be moved by dragging them to the desired location
Touch and hold - simulates a right click
Swipe scroll - allows you to view information that extends beyond the window
area. When you begin to scroll, the scroll bar appears and fades once you stop
scrolling.
For demonstrations on these gestures and how they can be used on the
X-Series multi-touch models go to:
http://www.youtube.com/playlist?list=PLmqzNmmPZGY9sgctxx5dP6hyZoUx
Np4lC

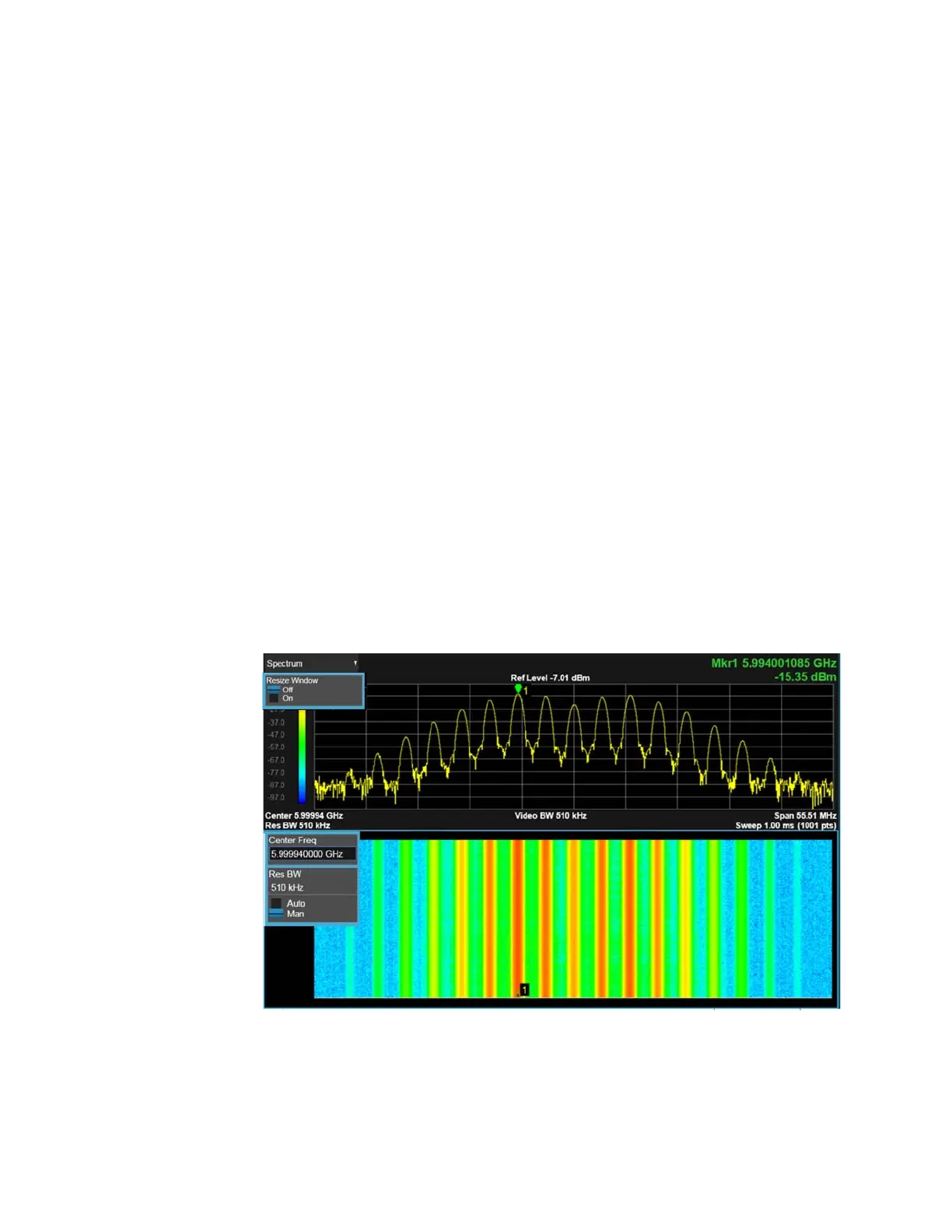

The annotation drop-downs in the window area allow you to change
parameters. The window title drop-down allows you to resize the windows in
the multi-window format. When you tap in those areas, the drop-down control
menus appear as shown in the following graphic.
