N9030B PXA Signal Analyzer Service Guide 491
Assembly Replacement Procedures
RF Area (Options 544, 550)
10.Refer to Figure 16-58. Disconnect the wire harness connector (1) located
between the switch and the frame. Remove the ribbon cable from the rear
of the top switch.

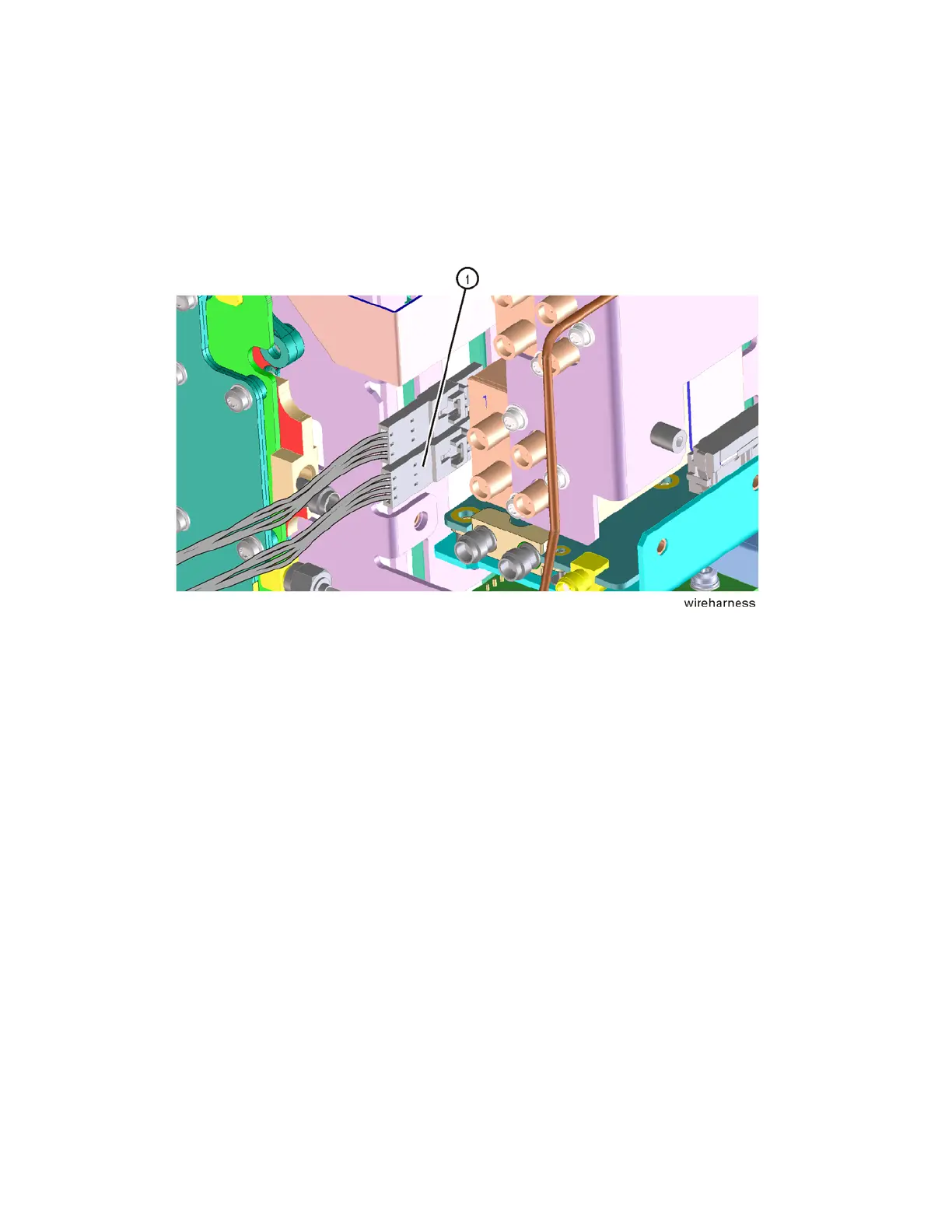

Figure 16-58 Wire Harness Disconnect
