X-Series Signal Analyzers Getting Started and Troubleshooting Guide 33
Front and Rear Panel Features
Display Features

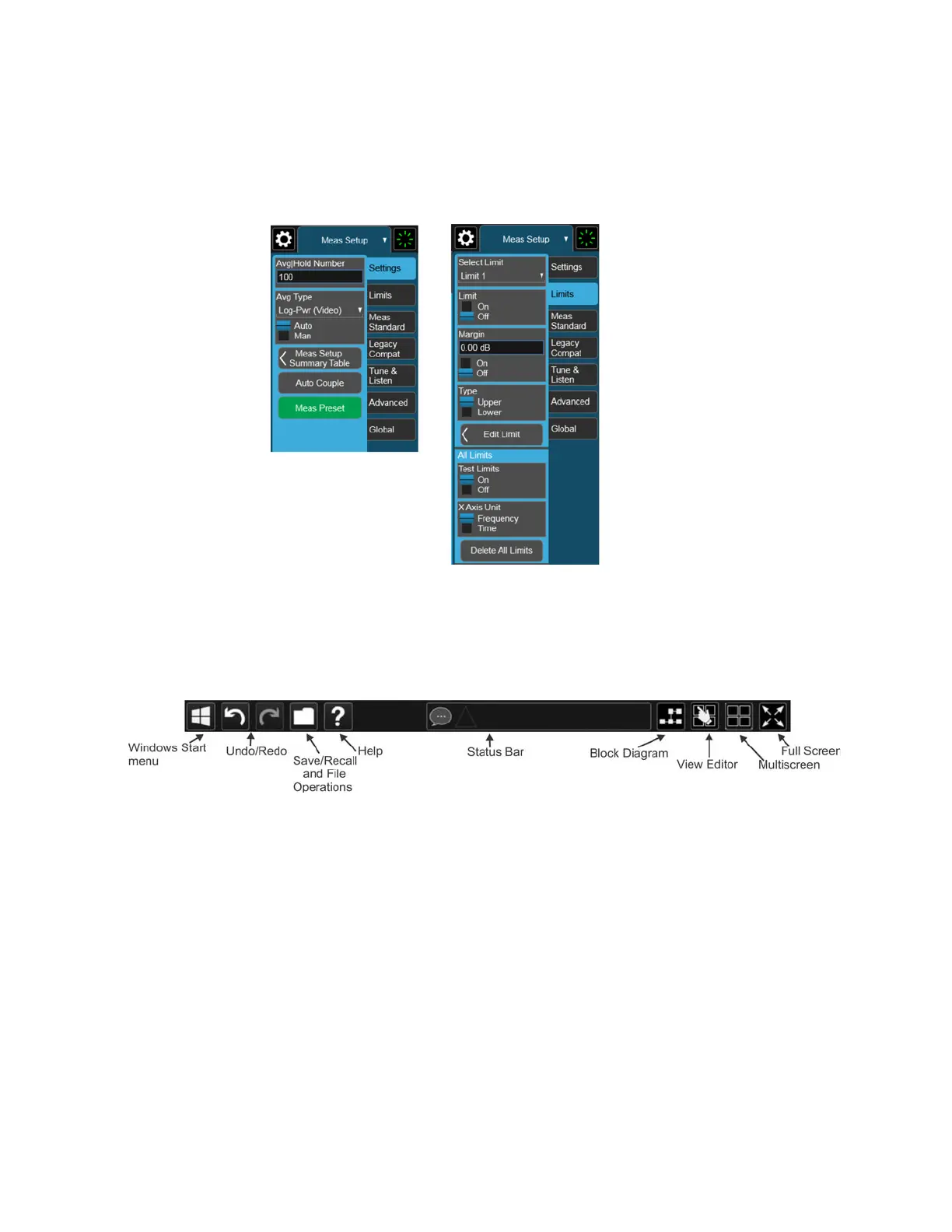

Notice that the Frequency panel has a Settings tab on the right side. Other
panels may have multiple tabs. The tabs access controls for the particular
parameter noted on the tab.
Bottom Bar
The bottom bar contains several icons that access various controls.
