Keysight 34450A - Page 71

Disassembly and Repair 2
Mechanical Disassembly
34450A Service Guide 53

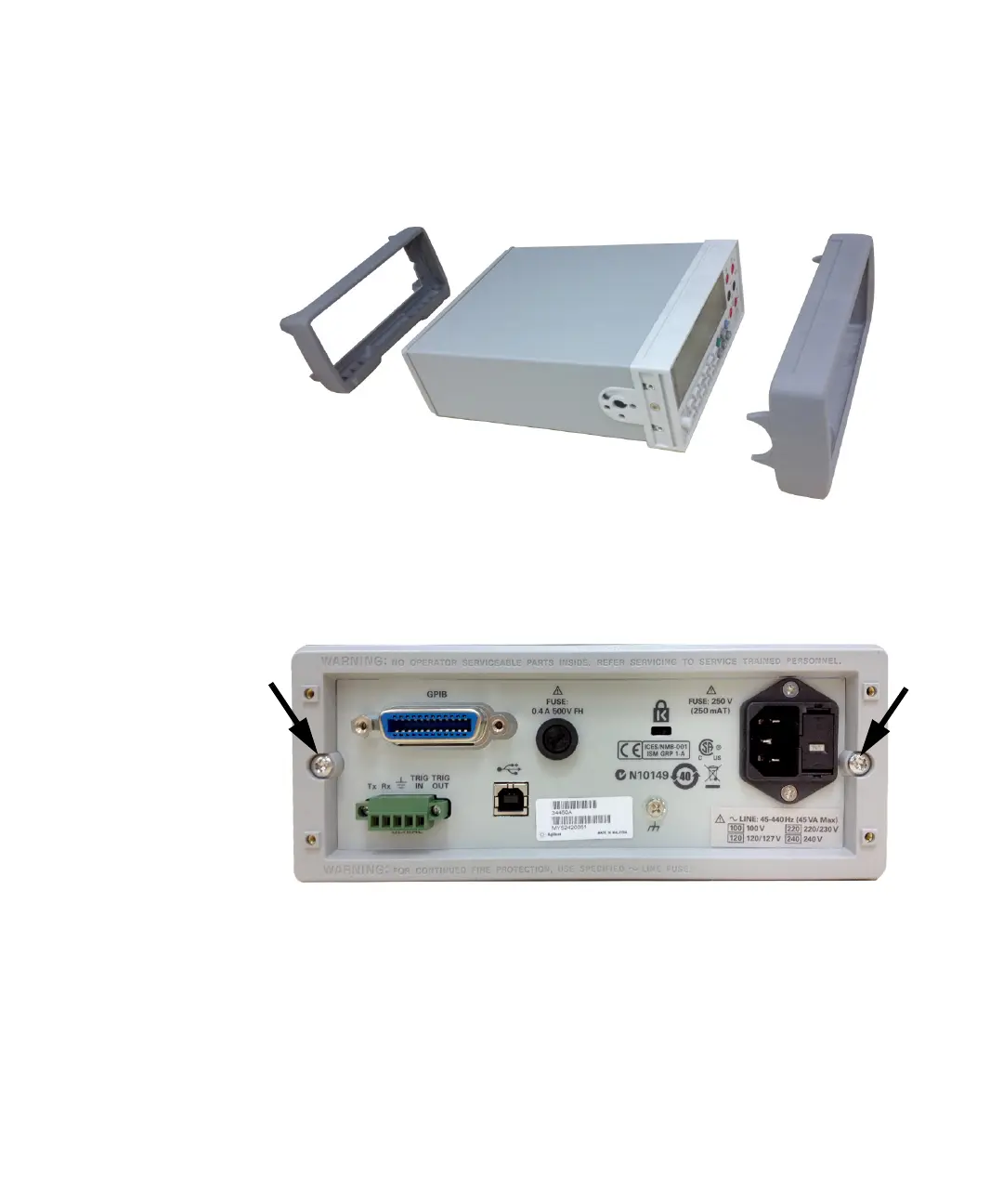

3 Remove the instrument bumpers. Pull from a corner and stretch the
bumpers off the instrument.
4 Remove the rear bezel. Loosen the two captive screws in the rear
bezel and remove the rear bezel.
