2 Disassembly and Repair
Mechanical Disassembly
52 34450A Service Guide
Mechanical Disassembly
For procedures in this manual, the following tools are required for
disassembly:
• T20 Torx driver (most disassembly)
General disassembly
1 Remove power and all cables from the instrument.

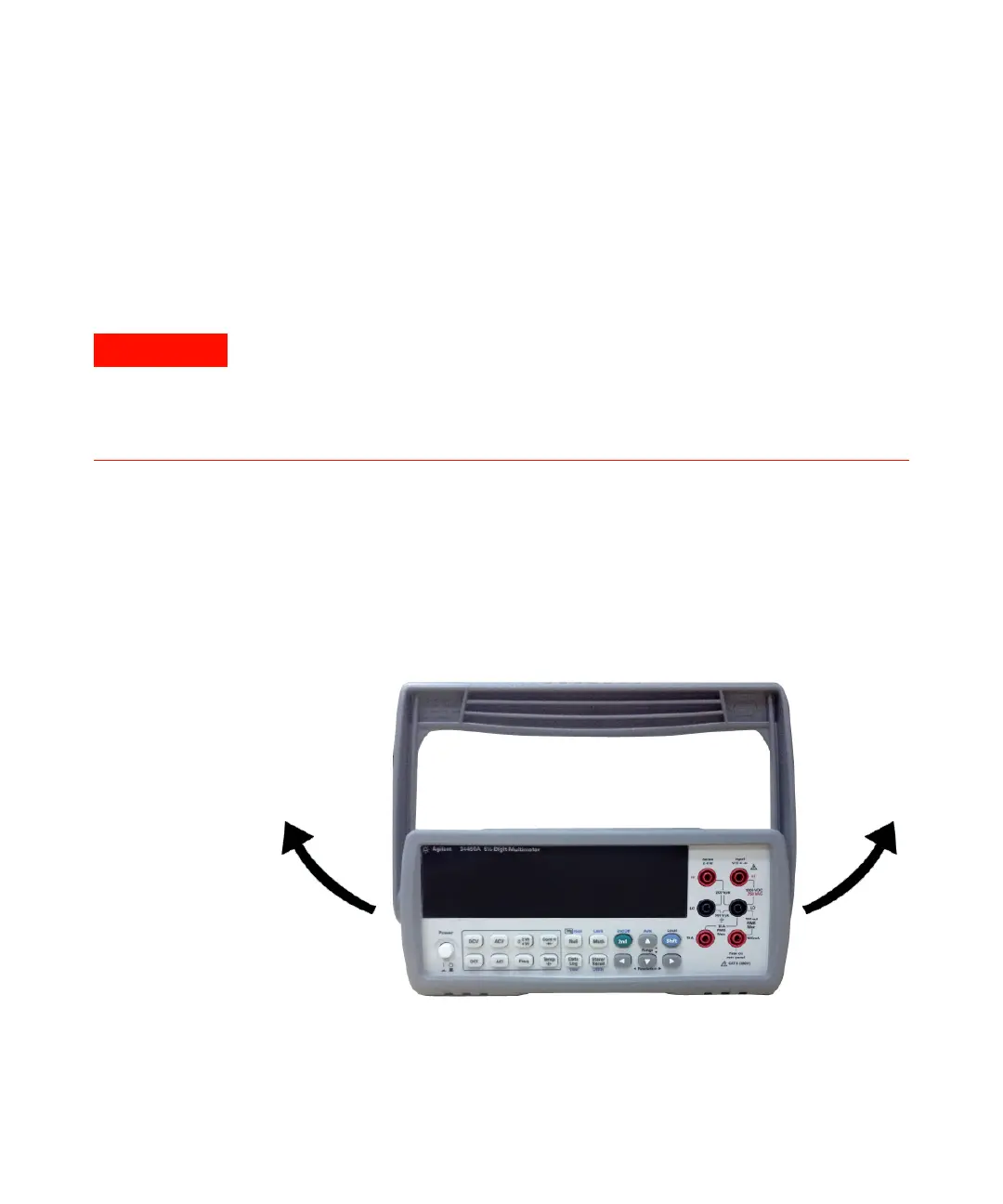

2 Remove the carrying handle by rotating the handle upright and pulling
out from the sides of the instrument.
SHOCK HAZARD. Only service–trained personnel who are aware of the hazards
involved should remove the instrument covers. To avoid electrical shock and
personal injury, make sure to disconnect the power cord from the instrument before
removing the covers. Some circuits are active and have power applied even when
the power switch is turned off.
