Keysight 34450A - AC Current Verification Test

Performance Tests and Calibration 1
Performance Verification Tests
34450A Service Guide 19
AC current verification test
Configuration: AC current (CONFigure:CURRent:AC)

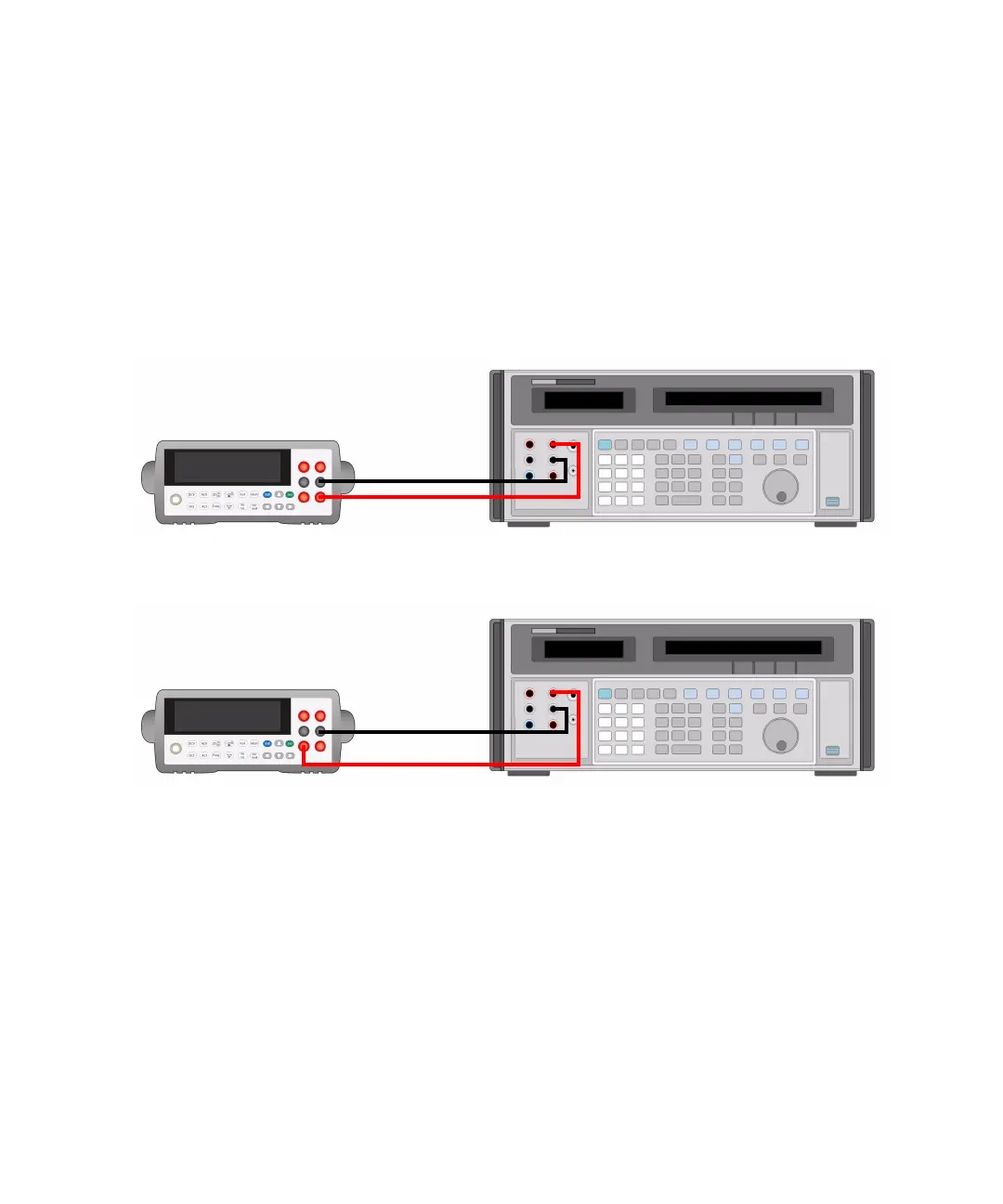

1 Connect the calibrator to the front panel HI and LO input terminals
as shown in the figure below:
For range ≤ 100 mA
For range ≥ 1 A , Input < 3A
