Keysight E4980A/E4980AL
Precision LCR Meter
Service Guide
C Power Requirement
Replacing Fuse
Fuse Selection
Select proper fuse according to the Table C-1.
Setting up the fuse
Use the fuse that meets the following specifications.
UL/CSA type, Slo-Blo, 5x20mm miniature fuse, 3A 250V (part number:
2110-1017)
Spare fuses are available from Keysight Technologies sales office. To check or
replace the fuse, disconnect the power cable and pull out the fuse holder (refer
to Figure C-1) towards you (refer to Figure C-2).

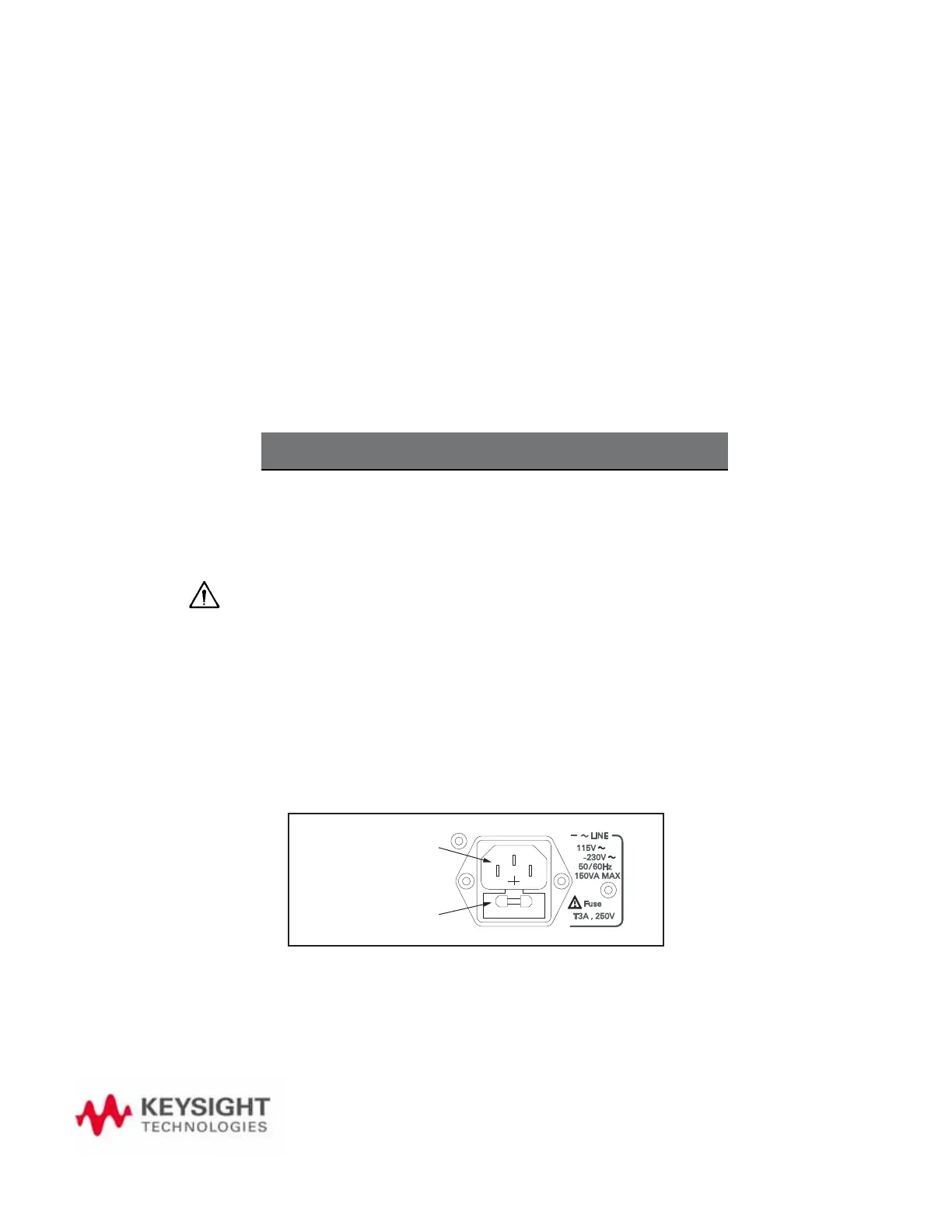

Figure C-1 Fuse holder and power cable socket
Table C-1 Fuse Selection
Fuse Rating/Type Fuse Part Number
3A 250Vac
UL/CSA type
Time Delay
2110-1017
㪼㪋㪐㪏㪇㪸㫊㪼㪈㪇㪊㪐
Power cable receptacle
Fuse holder
USE ONLY WITH A 250V FUSE
