Troubleshooting 4
S-Series Oscilloscopes Service Guide 69

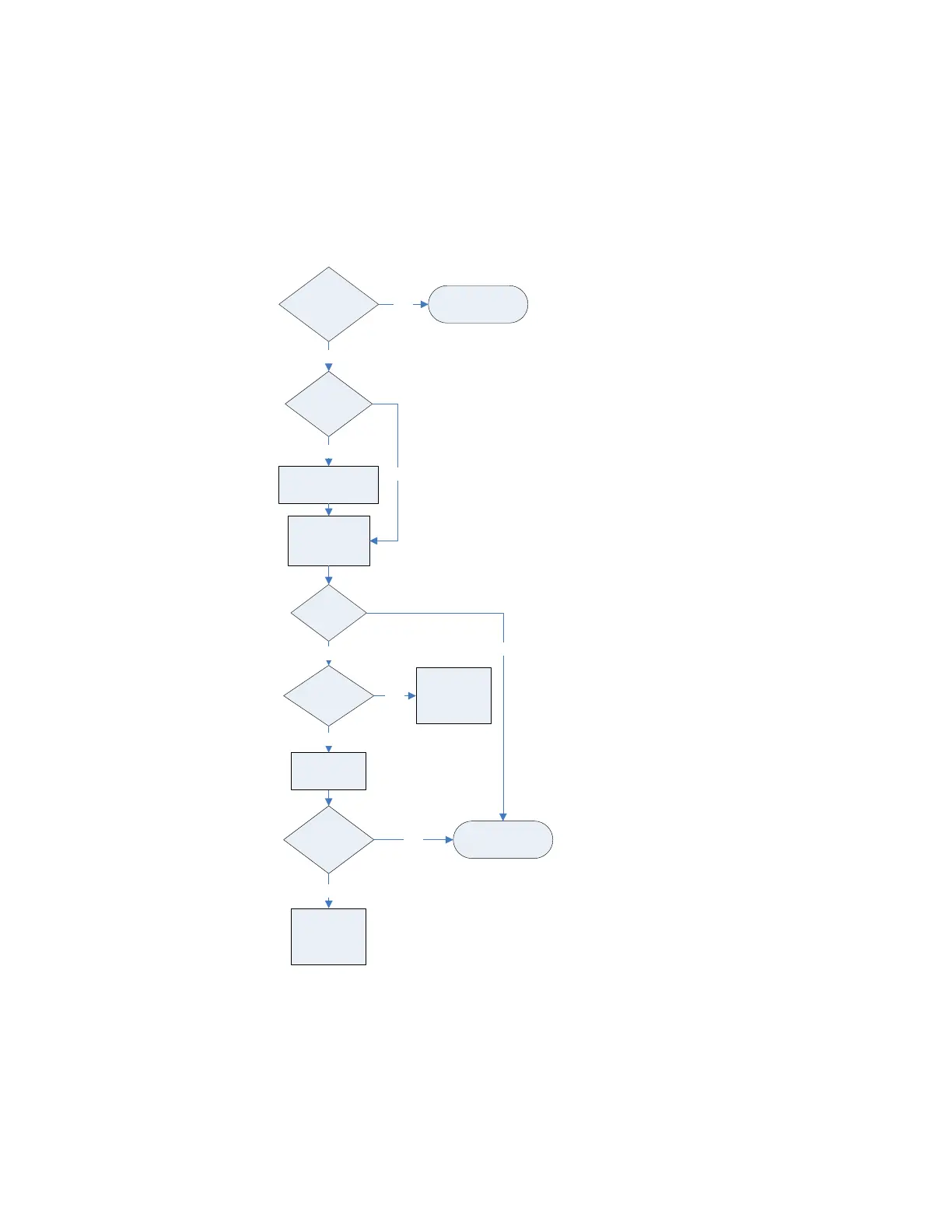

Touch Screen Troubleshooting
Does the touch
screen work?
Is the Touch
key lit?
Press Touch key
Done
Does touch
screen work?
Done
No
Yes
No
Yes
Replace USB
cable
Replace
motherboard
No
Perform Touch
Screen Test
Did test
pass?
Do knobs and
keys work?
No
No
Yes
Yes
Replace
touch screen
Yes
