Keysight PNA-X Series User Manual

Banded millimeter-wave measurements
With rmware version A.04.00 or later, the PNA microwave E836xC network analyzers
are capable of supporting banded millimeter-wave modules, extending the frequency
range of your network analyzer up to 500 GHz. Additionally, you can customize the
most cost-effective solution specic for your application by purchasing just the module
and frequency range you need. Figure 10 shows a typical millimeter-wave conguration.

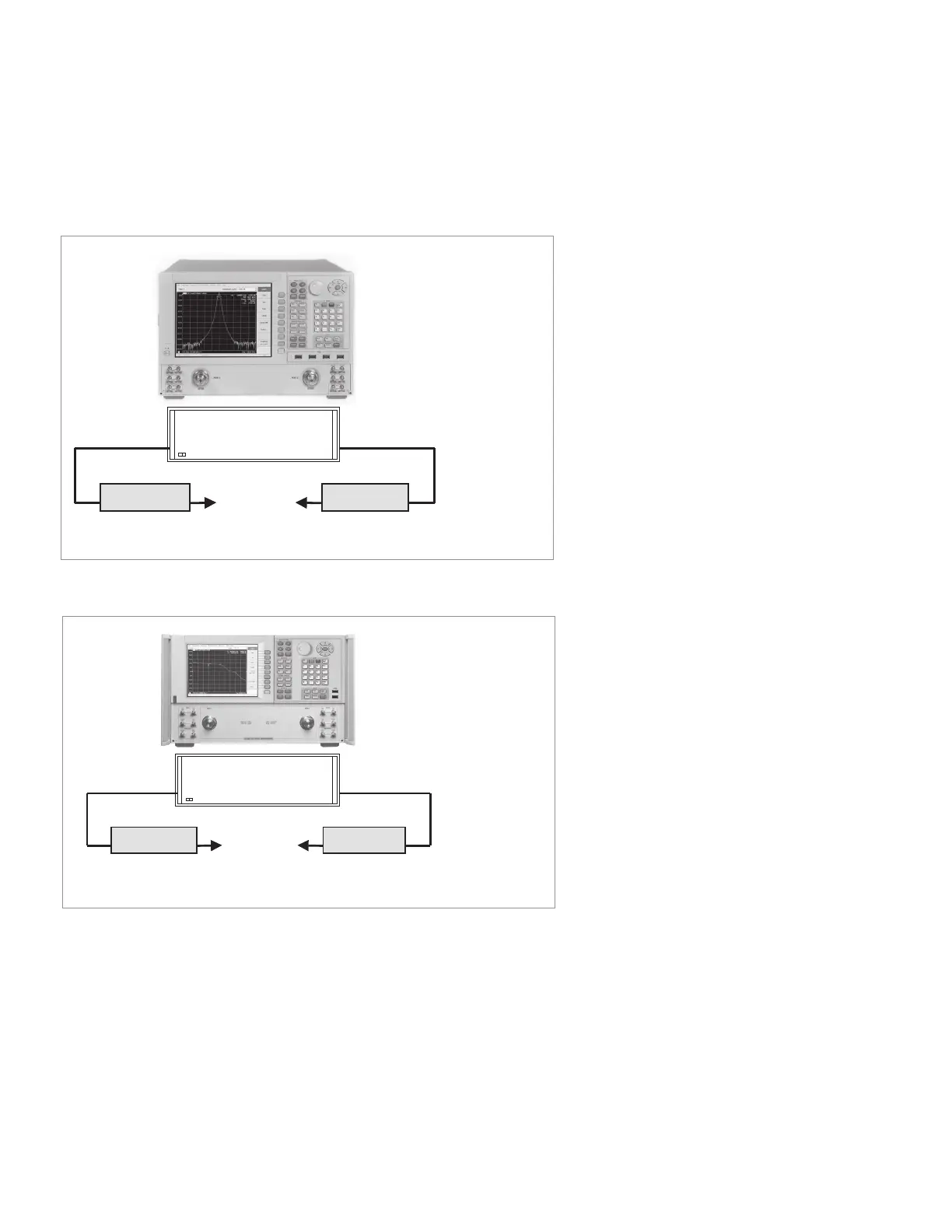

Figure 10. Typical millimeter-wave conguration using a Keysight PNA-X, a mm-wave controller and Oleson
Microwave Laboratory mm-wave modules.
Figure 11. Typical millimeter-wave conguration using a Keysight PNA, a mm-wave controller and Oleson
Microwave Laboratory mm-wave modules.
T/R module
T2 module
N5222/4/5/7A PNA Series
with Option X01, 020
N5242/4/5A PNA-X Series
with Option 200, 020
OML test heads
Tx, antenna
Rx, antenna
N5261A mmWave controller
T/R module
T2 module
Legacy (E836xC) PNA analyzer
with Option 014, 080, 081,
UNL and H11.
OML test heads
Tx, antenna
Rx, antenna
N5260A mmWave controller
11 | Keysight | Antenna Test – Selection Guide

Keysight PNA-X Series Specifications

General

Output Power	+13 dBm (typical)
Number of Ports	2 or 4
Dimensions	426 mm (W) x 470 mm (D)
Power Requirements	100 to 240 VAC, 50/60 Hz
Frequency Range	10 MHz to 26.5 GHz (varies by model)
