5. Antenna measurement components catalog
PNA Series network analyzers
The microwave PNA Series instruments are integrated vector network analyzers
equipped with a built-in S-parameter test set, synthesized sources, hard and oppy disk
drives, and an LCD display. They offer fast data acquisition speeds, excellent sensitivity,
wide dynamic range, multiple test channels, and frequency agility – without compromis-
ing measurement accuracy. Frequency coverage is from 10 MHz to 110 GHz with exten-
sions to 325 GHz.
Features
Excellent sensitivity due to mixer-based architecture. In addition, the ability to select
from a minimum of 29 different IF bandwidths allows the user to optimize the sensi-
tivity versus measurement speed tradeoff.
Extremely fast data transfer rates are accomplished using the COM/DCOM features.
Flexibility with 4 simultaneous test receivers and 20,001 data points per trace.
Pulsed measurement capability for point-in-pulse with pulse widths smaller than
100 ns.
Removable hard drive ensures the security of the data.
Microwave network analyzers

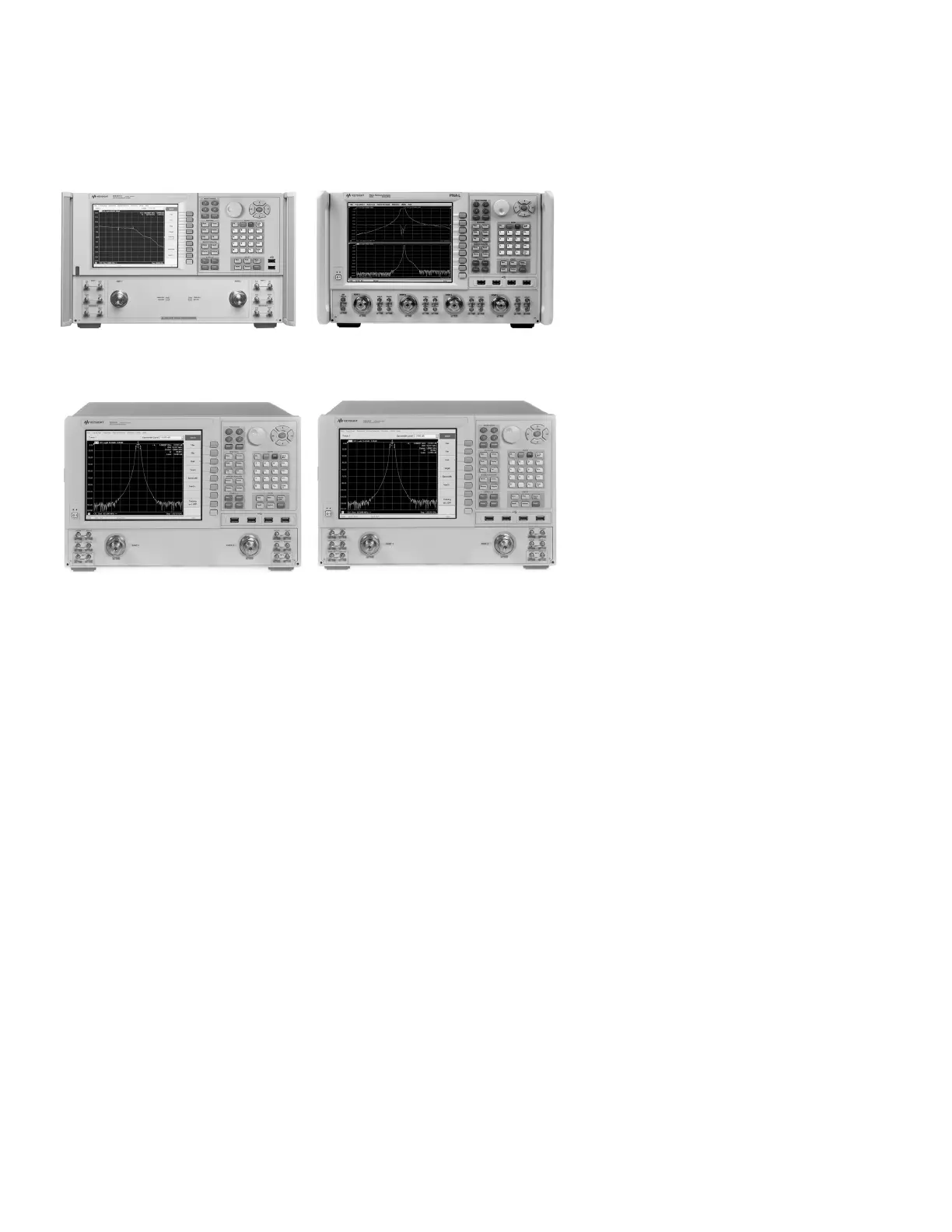

Figure 30. Legacy (E836xC) PNA network analyzer.
Figure 32. PNA-X N5242A network analyzer.
Figure 31. PNA N523xA network analyzer.
Figure 33. PNA N5222A network analyzer.
48 | Keysight | Antenna Test – Selection Guide
