Ampliers

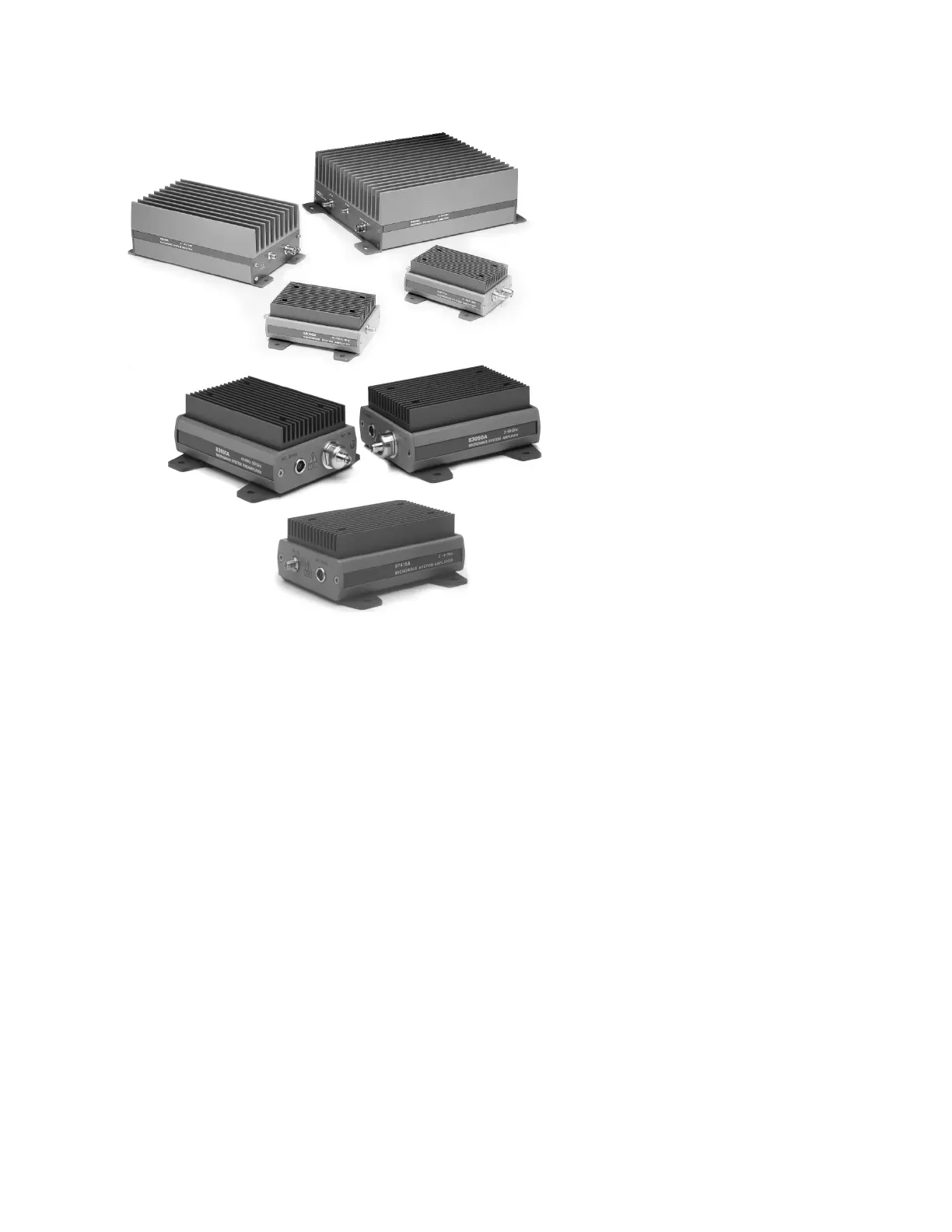

Figure 51. Ampliers.
Keysight Technologies, Inc. has a variety of ampliers that nd applications on antenna
and RCS ranges. These ampliers are small and compact, with high gain and output
power. An external power supply is required for these ampliers. Refer to Keysight’s
83000A Series Microwave System Ampliers, literature number 5963-5110E, for com-
plete information on ampliers. Also refer to Keysight 87415A Technical Overview, litera-
ture number 5091-1358E, Keysight 87405A Data Sheet, literature number 5091-3661E.
87415A
2 to 8 GHz
83051A
0.045 to 50 GHz
83050A
2 to 50 GHz
83017A
0.5 to 26.5 GHz
83006A
0.01 to 26.5 GHz
83018A
2 to 26.5 GHz
83020A
2 to 26.5 GHz
66 | Keysight | Antenna Test – Selection Guide

Keysight PNA-X Series Specifications

General

Output Power	+13 dBm (typical)
Number of Ports	2 or 4
Dimensions	426 mm (W) x 470 mm (D)
Power Requirements	100 to 240 VAC, 50/60 Hz
Frequency Range	10 MHz to 26.5 GHz (varies by model)
