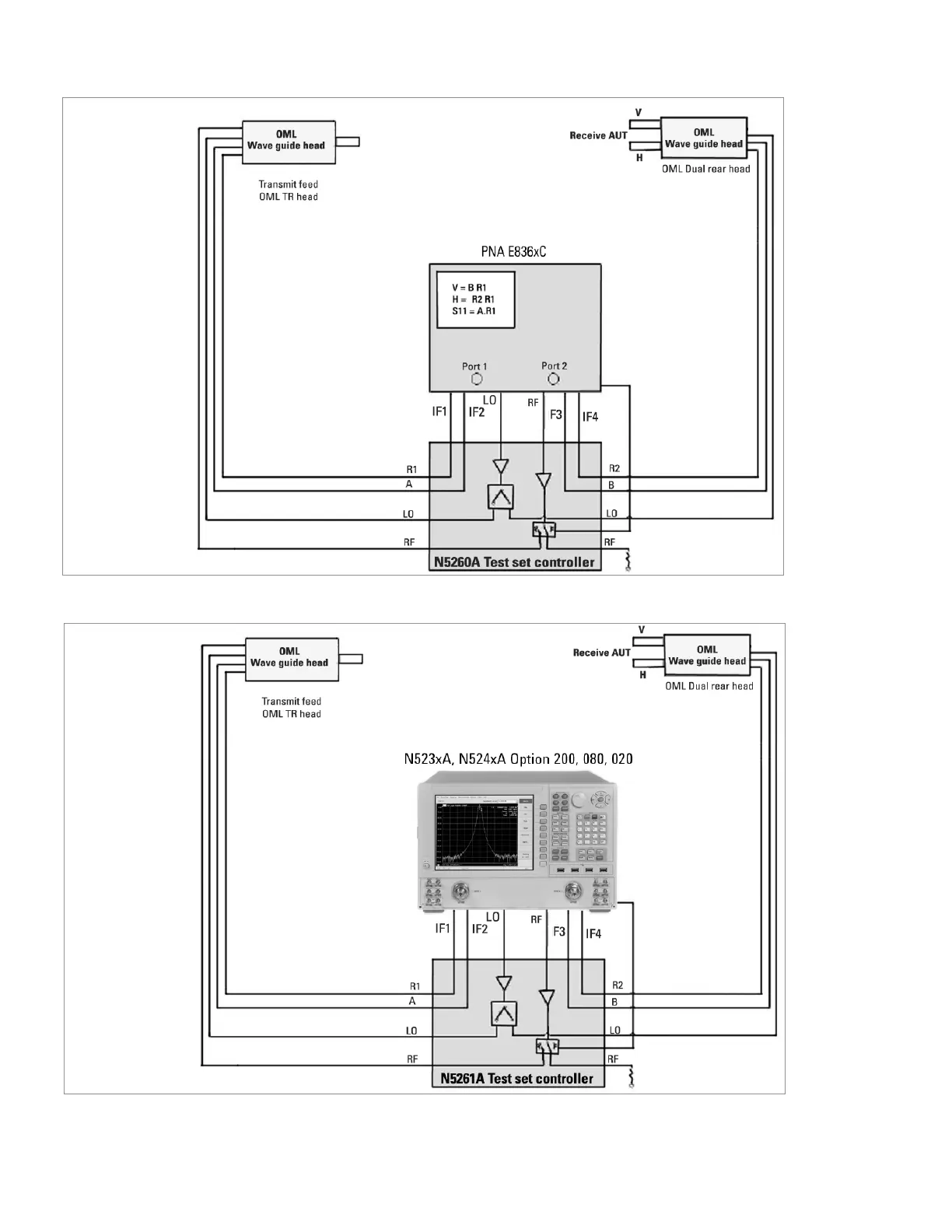

Figure 12. Typical millimeter-wave antenna application with PNA E836xC with Option 014, 080, 081,
UNL and H11.
Figure 13. Typical millimeter-wave antenna application with N5242A PNA-X Option 020.
For additional information about millimeter measurements, see Application Note 1408-15:
Banded Millimeter-Wave Measurements with the PNA, literature number 5989-4098EN.
23 | Keysight | Antenna Test – Selection Guide
