Dynamic range
The dynamic range required to test the AUT is the difference, in decibels, between maxi-
mum boresite level and minimum AUT level that must be measured. Examples of these
include side-lobe level, null depth, and cross-polarization levels.
Measurement accuracy/signal-to-noise ratio
Measurement accuracy is affected by the measurement sensitivity of the system. The
signal-to-noise ratio will directly impact the measurement accuracy of the system for
both amplitude and phase measurements. Figure 15 illustrates the relationship between
signal-to-noise ratio and magnitude and phase errors.

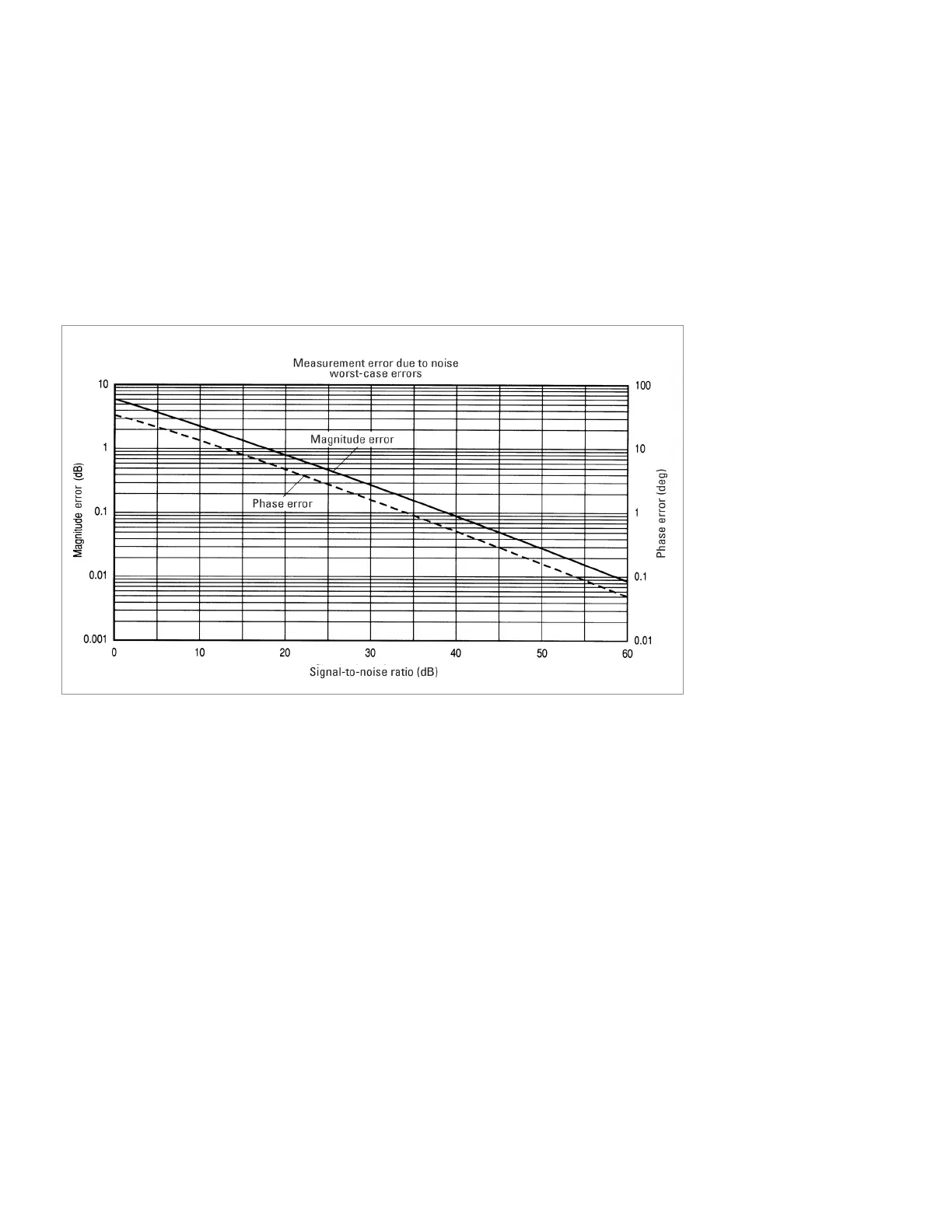

Figure 15. Measurement accuracy as a function of signal-to-noise ratio.
Determine your signal-to-noise ratio based on the magnitude and phase errors you can
accept.
26 | Keysight | Antenna Test – Selection Guide

Keysight PNA-X Series Specifications

General

Output Power	+13 dBm (typical)
Number of Ports	2 or 4
Dimensions	426 mm (W) x 470 mm (D)
Power Requirements	100 to 240 VAC, 50/60 Hz
Frequency Range	10 MHz to 26.5 GHz (varies by model)
