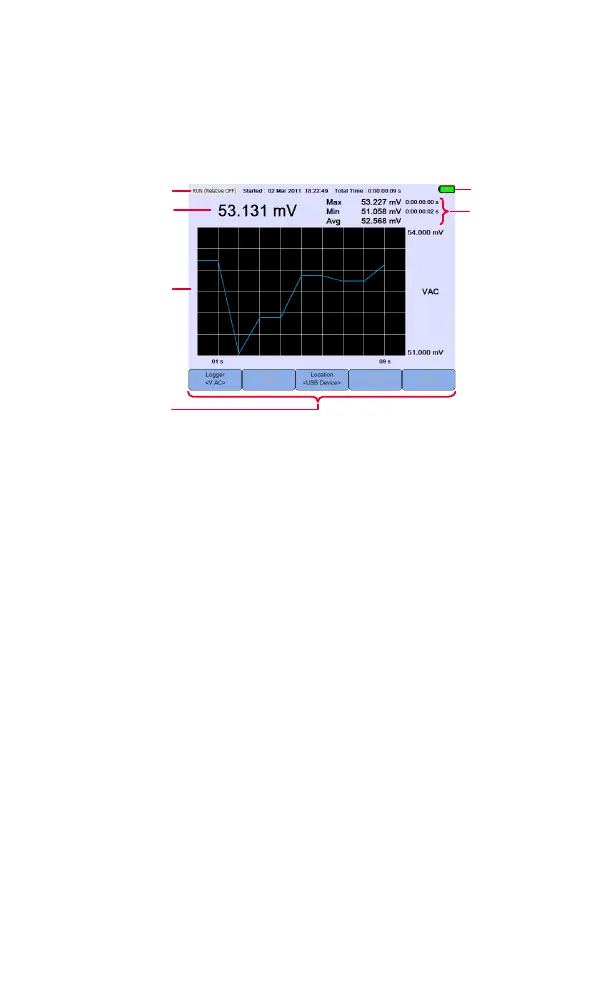

Logger Display
1
Displays the channel and timebase setup
information.
2 Displays the channel input waveforms.
3 Displays the sample rate.
4 Displays the key/softkey function menus.
5 Displays the signal acquisition mode.
6 Displays the battery status and AC
connectivity for battery charging.
7 Displays the signal triggering status.
8 Displays the date and time.
9 Displays the acquisition, start date and time,
and duration status.
10 Displays the measurement.
11 Displays the virtual measurement scale.
12 Displays the average, maximum, and
minimum values.
13 Indicates the auto or manual ranging mode.
14 Displays the logging graph.
6
9
10
14
4
12
