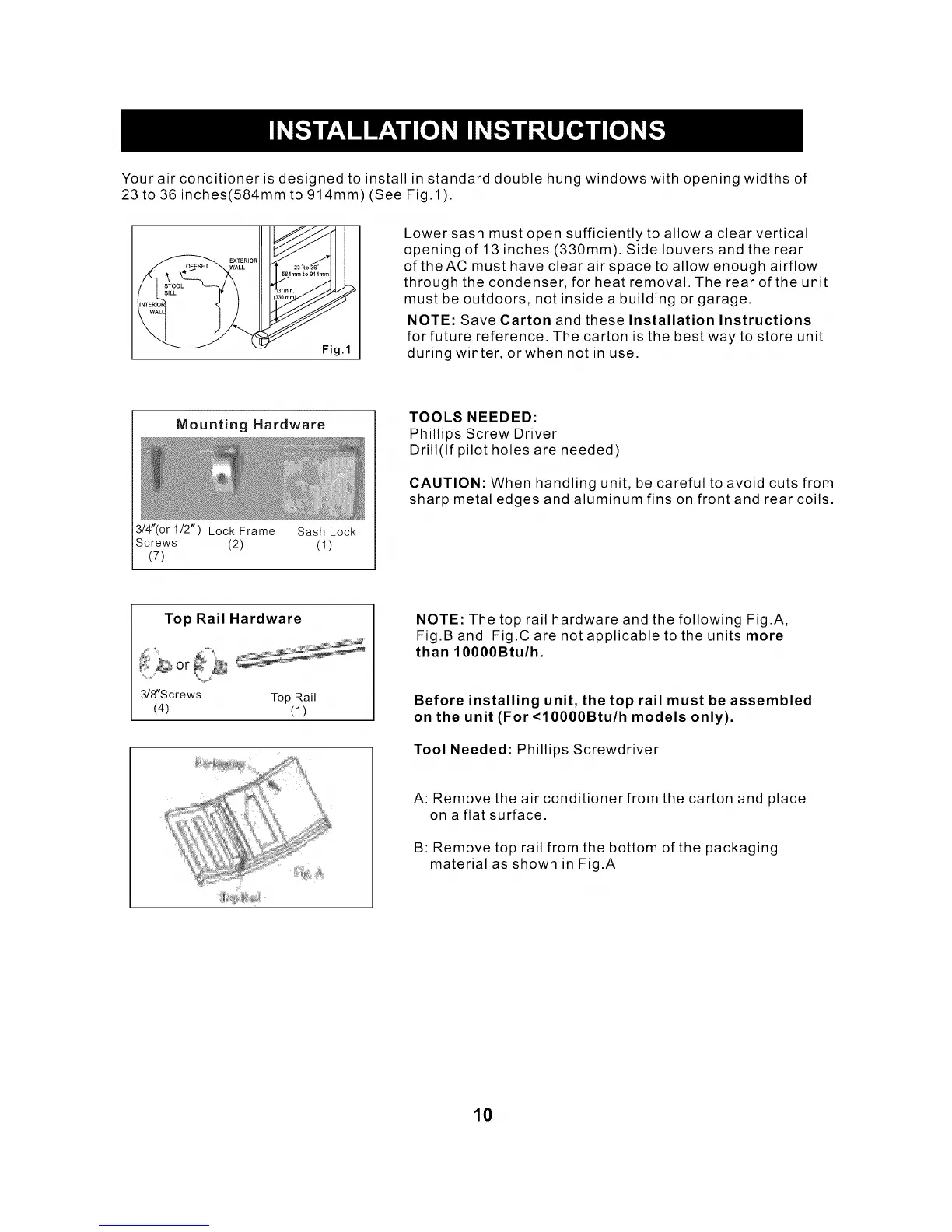

Your air conditioner is designed to install in standard double hung windows with opening widths of
23 to 36 inches(584mm to 914mm) (See Fig.l).
EXTERIOR
WALL .
Lower sash must open sufficiently to allow a clear vertical
opening of 13 inches (330mm). Side louvers and the rear
of theAC must have clear air space to allow enough airflow
through the condenser, for heat removal. The rear of the unit
must be outdoors, not inside a building or garage.
NOTE: Save Carton and these Installation Instructions
for future reference. The carton is the best way to store unit
during winter, or when not in use.
Mounting Hardware
3/4"(or 1/2") Lock Frame
Screws (2)
(7)
Sash Lock
(1)
TOOLS NEEDED:
Phillips Screw Driver
Drill(If pilot holes are needed)
CAUTION: When handling unit, be careful to avoid cuts from
sharp metal edges and aluminum fins on front and rear coils.
Top Rail Hardware
or
3/8"Screws Top Rail
(4) (1)
..........._.,,
;¢ a
NOTE: The top rail hardware and the following Fig.A,
Fig.Band Fig.C are not applicable to the units more
than lO000Btu/h.
Before installing unit, the top rail must be assembled
on the unit (For <10000Btu/h models only).
Tool Needed: Phillips Screwdriver
A: Remove the air conditioner from the carton and place
on a flat surface.
B: Remove top rail from the bottom of the packaging
material as shown in Fig.A
10
