Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
11
Balance
®
Overhead Cabinet
Assembly Instructions

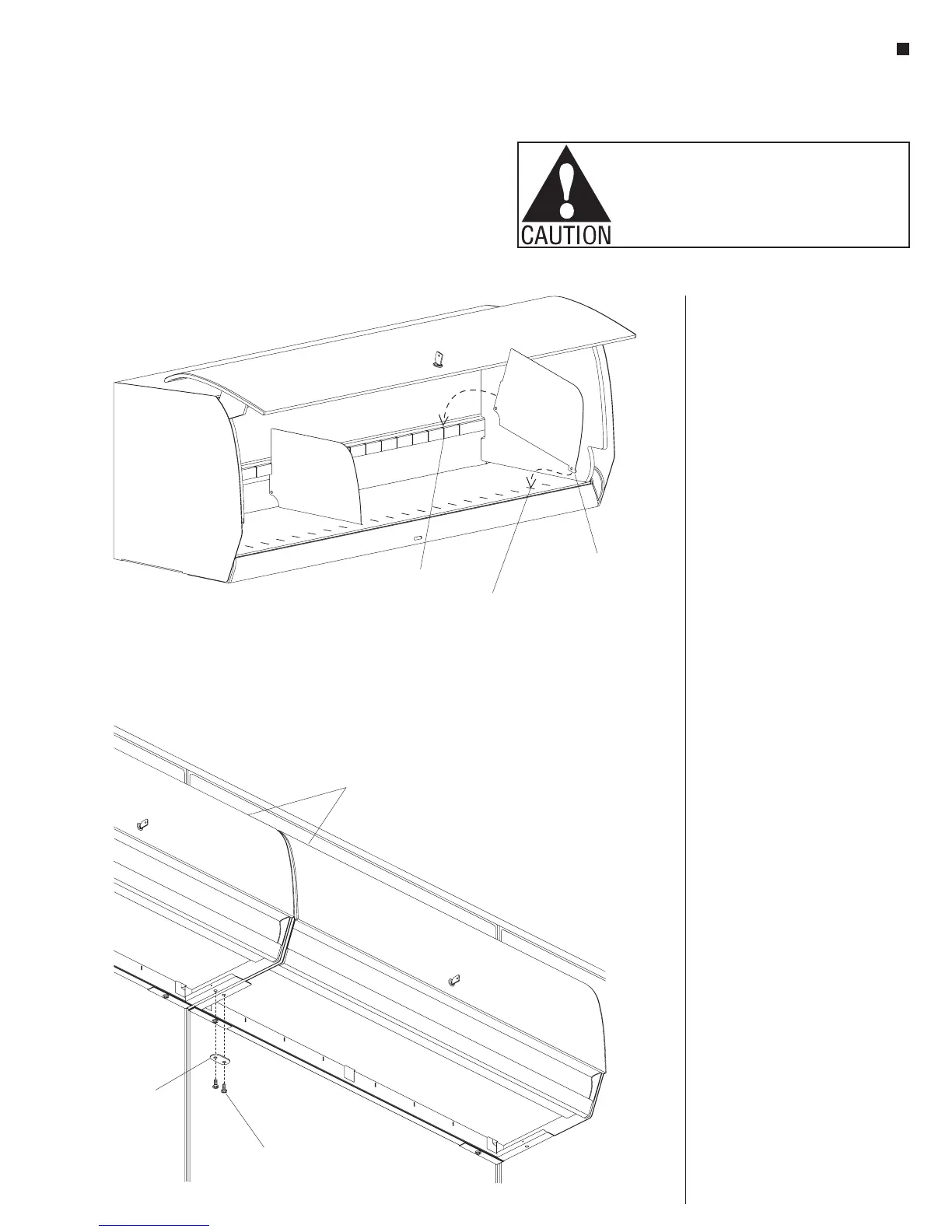

Shelf Divider Installation
1. Orient the shelf divider as illustrated.
Place the shelf divider front hook into
the front slot of the overhead shelf.
Rotate the back of the shelf divider
down to engage it into the slot in the
overhead back (Figure 12).
2. To remove divider, reverse the above
steps.
Ganging Plate Installation
Note: When overhead units are
installed side-by-side on a panel
system, a ganging plate must be
installed between overheads to avoid
bowing of panel system.
1. Orient ganging plate as illustrated
under pair of overhead units and use
two
5
/
16
-18 x
1
/
2
” screws to secure
plate to underside of overhead units
(Figure 13).
Figure 13
ganging
plate
51
/ -18 x /
16 2
"
screw
panel-mounted
overhead units
Figure 12
back slot
front
shelf slot
shelf divider
front hook
