10
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Balance
®
Overhead Cabinet
Assembly Instructions
Tack Board & Tool Rail
Attachment Bar to Balance
Overhead with On-Module
Mounting Bracket

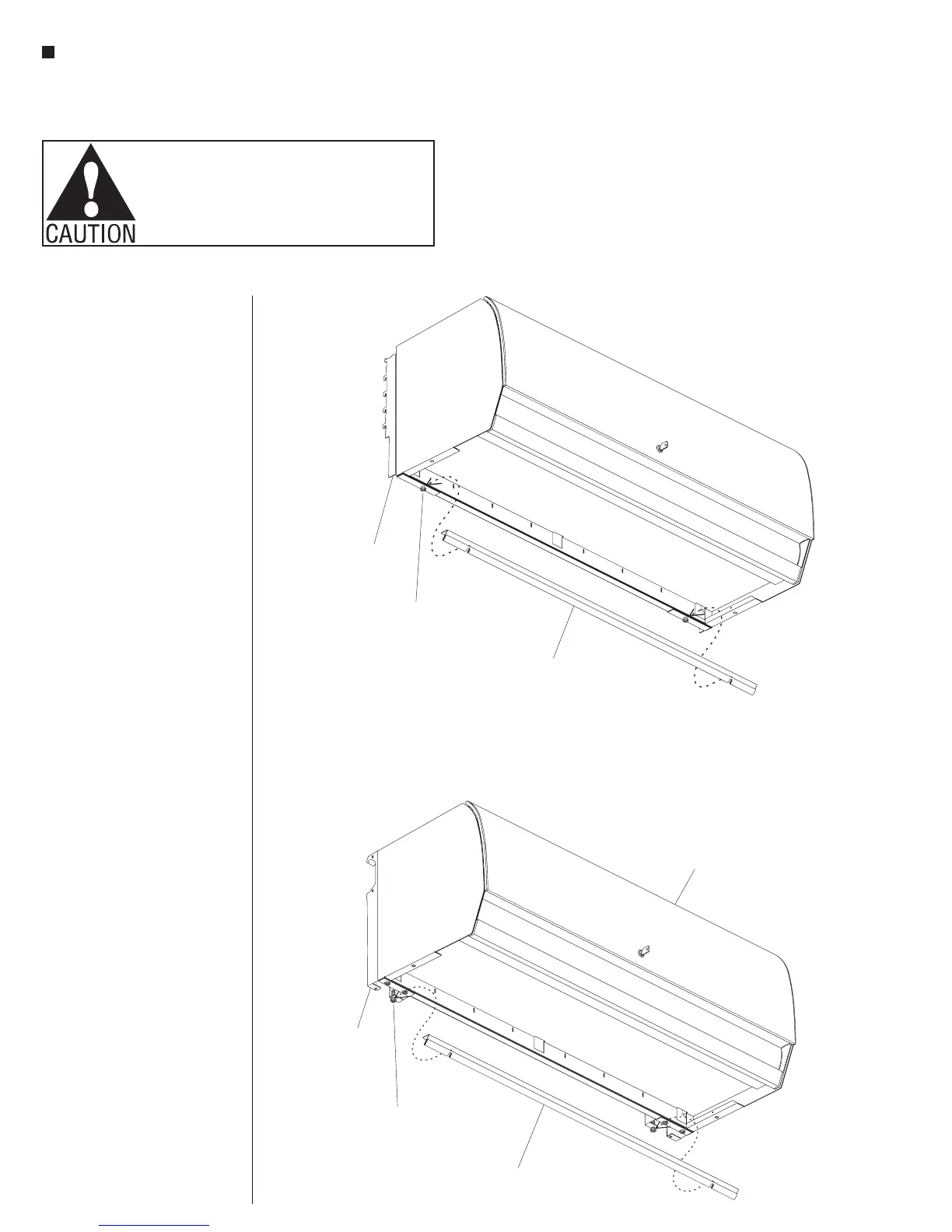

Note: Overhead units installed
to panel systems with on-module
mounting brackets may utilize a
tack board or tool rail which is
attached directly to the overhead via
an attachment bar assembled to the
overhead unit (Figure 10).
1. To install attachment bar to
on-module mounting bracket, locate
and loosen the two
5
/
16
-18 x
1
/
2
”
screws which attach the mounting
brackets to the underside of the
Balance overhead unit. Turn each
screw out about
1
/
8
” to allow for
installation (Figure 10).
2. Orient the attachment bar as
illustrated, align the slots in the
attachment bar with the loosened
screws and slide into place.
Re-tighten the two screws to secure
attachment bar in place (Figure 10).
Tack Board & Tool Rail
Attachment Bar to Balance
Overhead with Load Bar Mounting
Bracket
Note: Overhead units installed
to panel systems using a load bar
mounting bracket may utilize a tack
board or tool rail which is installed
to an attachment bar. The attachment
bar is secured to the load bar
mounting bracket of the overhead
(Figure 11).
1. To install attachment bar to the load
bar mounting bracket as illustrated,
first twist in two
5
/
16
-18 x
1
/
2
” screws
at the location illustrated such that a
1
/
8
” gap is left under the head of both
screws (Figure 11).
2. Orient the attachment bar as
illustrated, align the slots in the
attachment bar with the two screws
from step 1 and slide attachment bar
into place. Tighten the two screws
to secure attachment bar in place
(Figure 11).
Balance
overhead
load bar
mounting
bracket
51
/ -18 x /
16 2
"
screw
attachment bar
On-Module
mounting bracket
51
/ -18 x /
16 2
"
screw
attachment bar
