KI Balance - Task Light Installation

Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
9
Balance
®
Overhead Cabinet
Assembly Instructions
Task Light Installation
1. Reference Figure 8 below to identify
the left- and right-hand brackets,
as well as four 8-32 x
1
/
4
” tapping
screws within the bracket kit
(Figure 8).
Note: The electrical cord from the
task light must face to the rear of the
cabinet as illustrated when the task
light is installed.
2. One side at a time, position the
appropriate bracket as illustrated
(lever toward the center of the fixture)
to the task light unit and align the
mounting holes in the bracket with
the holes on the top of the task light
unit. Secure each bracket using two
8-32 x
1
/
4
” tapping screws (Figure 8).
3. Before installing the task light to
the cabinet, insert the electrical cord
plug through the middle square
hole in the overhead trough back as
illustrated (Figure 9).
4. Hook the task light assembly
brackets into the slots in the
trough under the cabinet which are
appropriate for the size of overhead
unit and light (Figure 9).
Note: The length of the task light
does not have to match the size of
the overhead unit. Shorter lights may
be installed at the center point of the
cabinet or either side of center as
allowed by the slot locations.
5. After brackets are in place, rotate
levers on brakets upwards to lock the
task light in place.
6. Once the cord is routed
appropriately, plug it into a 120 volt,
60 HZ, grounded outlet. Excess cord
may be stored in the trough located
inside the overhead.
Caution: Be sure task light
assembly brackets are fully engaged
onto the overhead unit. Failure to
assemble properly or to secure parts
may result in assembly failure and
injury.

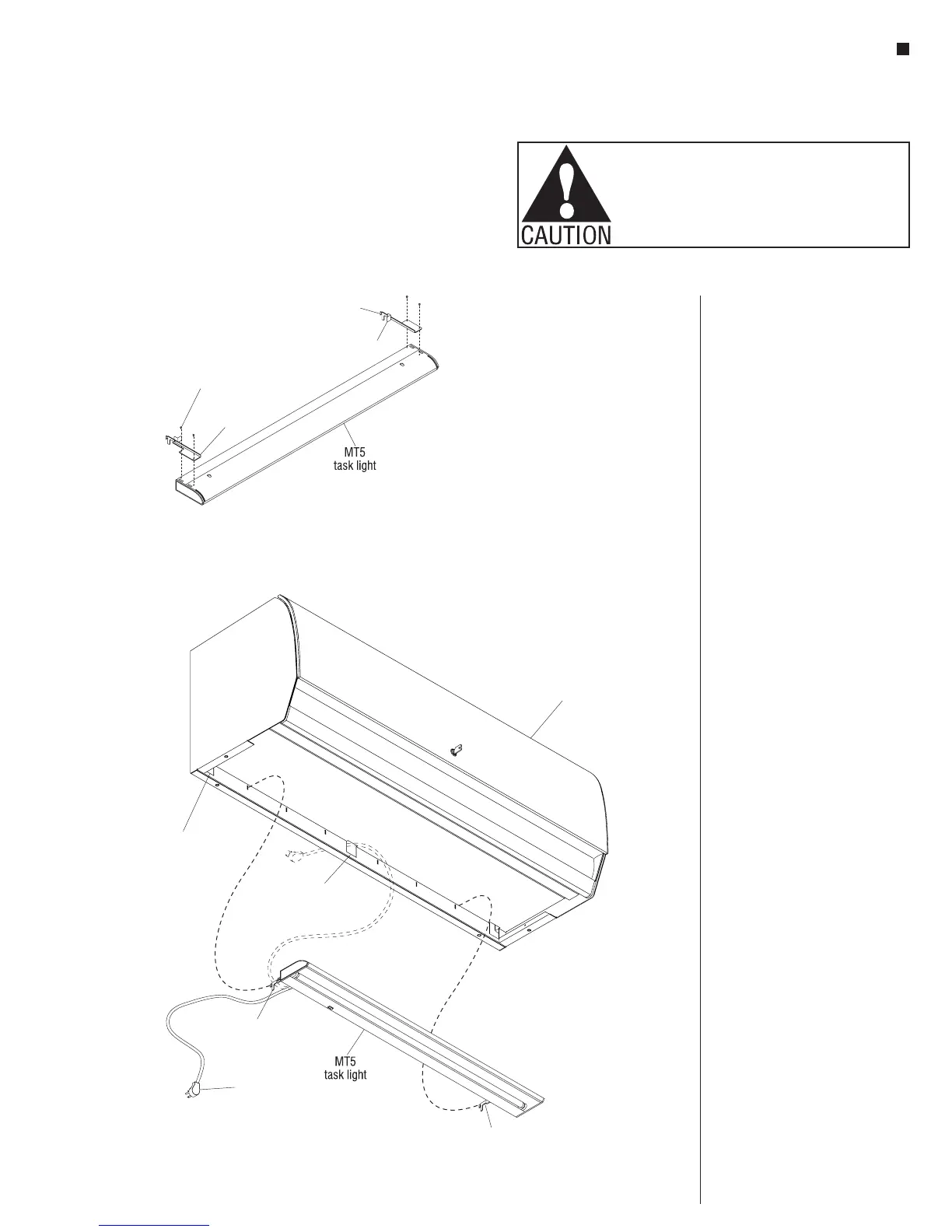

Figure 8
8-32 x /
1
4
"
tapping screw
left-hand
bracket
right-hand
bracket
lever
Figure 9
middle
hole
outside
hole
electrical
cord plug
Balance
overhead
cabinet
left-hand
bracket
right-hand
bracket
