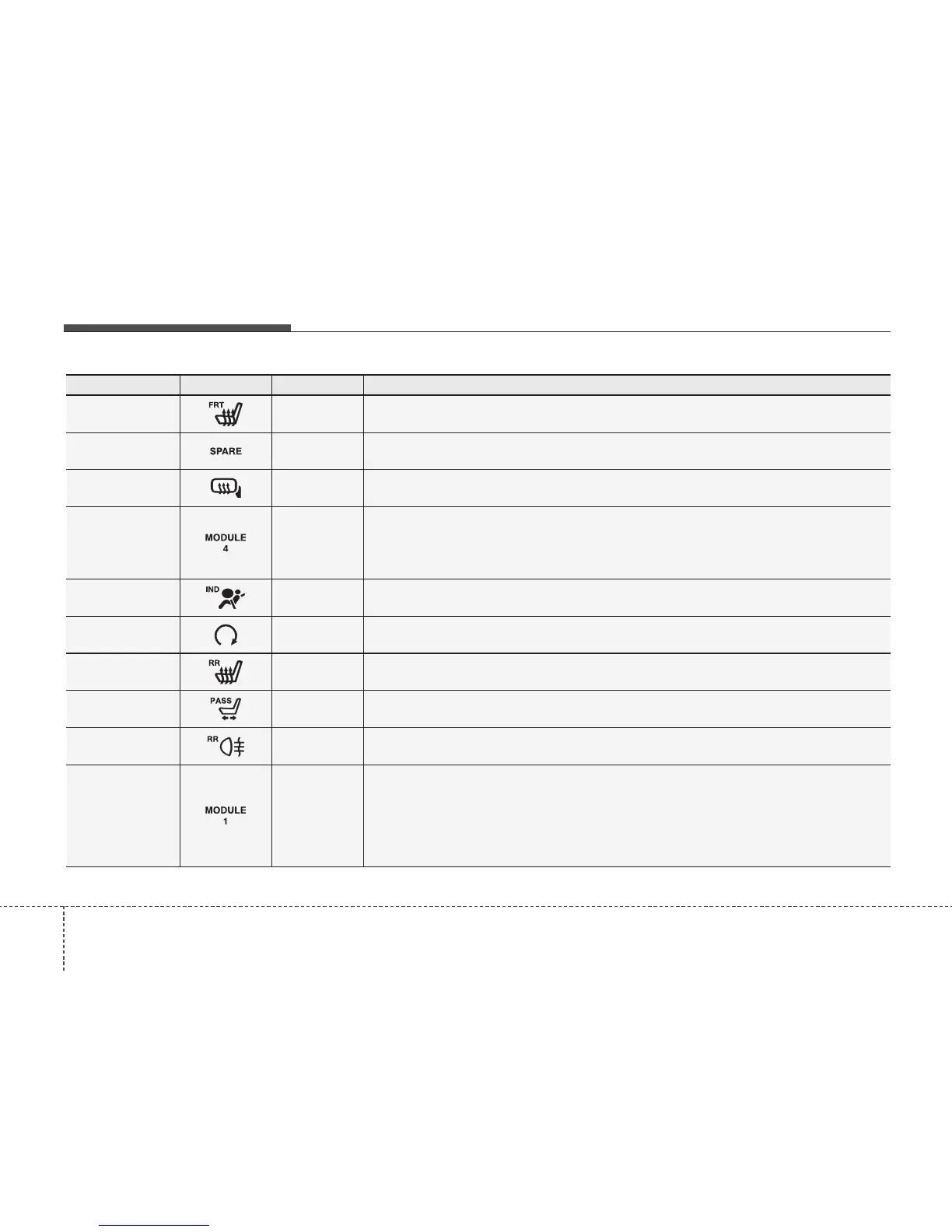

Fuse Name Symbol Fuse rating Protected Component
S/HEATER
FRT
20A
Driver/Passenger CCS Cushion Warmer (With CCS),
Driver/Passenger Seat Warmer Module (W/O CCS)
SPARE 10A -
MIRR HTD 10A Driver/Passenger Power Outside Mirror
MODULE4 7.5A
Driver/Passenger CCS Control Module (With CCS),
Driver/Passenger Seat Warmer Module (W/O CCS),
Front Seat Warmer & CCS Switch, Oil Pump Inverter, ISG Low DC-DC Converter,
Tyre Pressure Monitoring Module
A/BAG IND 7.5A Instrument Cluster
START 7.5A
Smart Key Control Module (With Smart Key),
Burglar Alarm Relay (W/O Smart Key)
S/HEATER
RR
15A Rear Seat Warmer Relay LH/RH
P/SEAT
PASS
20A Passenger Seat Manual Switch
FOG LP
RR
15A Rear Fog Lamp Relay
MODULE1 7.5A
Auto Head Lamp Levelling Device Module (Auto HLLD),
Head Lamp Levelling Device Switch (Manual HLLD),
Head Lamp Levelling Device Actuator LH/RH, BCM,
Front Smart Parking Assist Sensor Module, Instrument Cluster, Electro Chromic Mirror,
A/C Control Module, Driver IMS Module, Rear Parking Assist Buzzer,
Lane Keeping Assist Module
