SPS Smart Profiler Hardware Guide PTG-330310-000 Rev. C
4

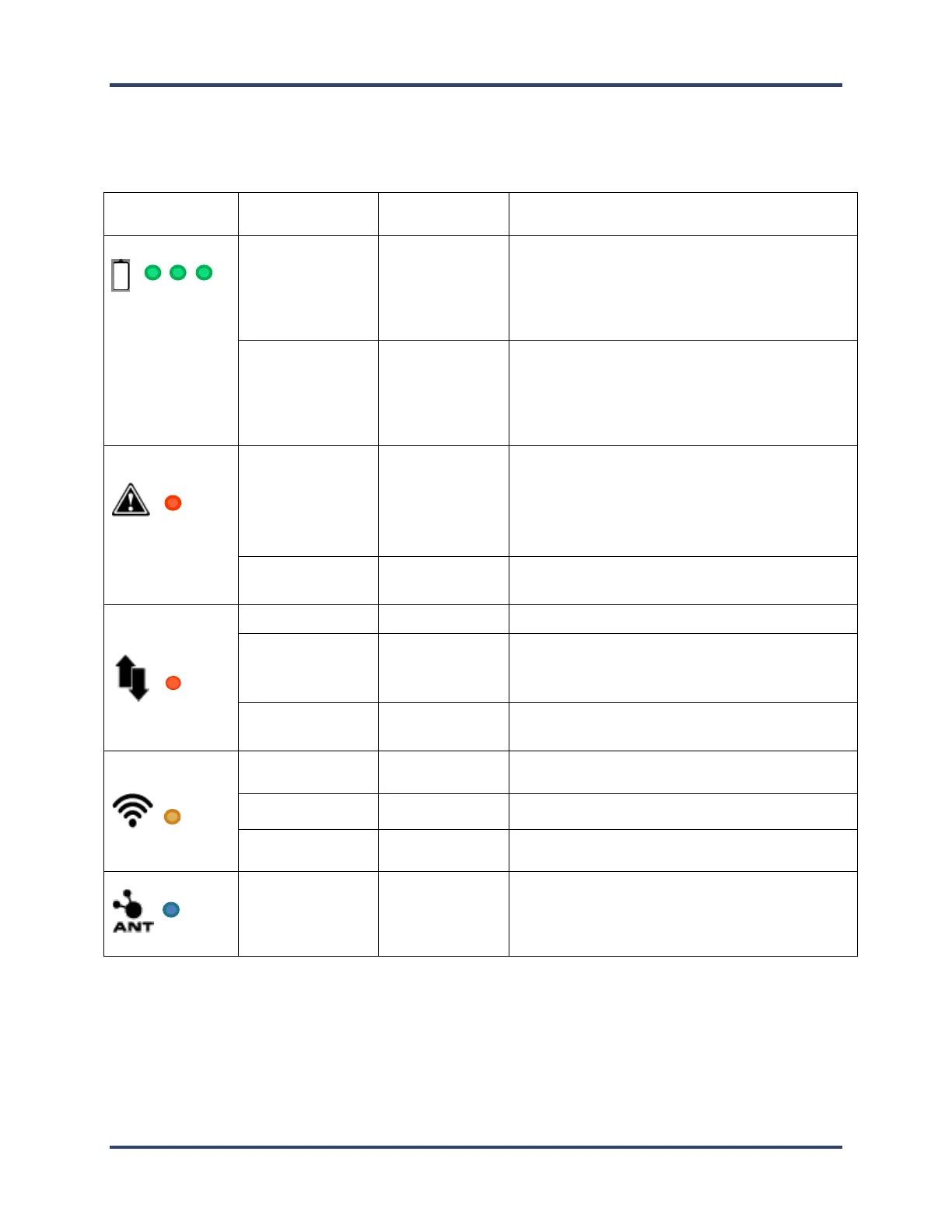

The SPS Smart Profiler LEDs
LED Name/
Icon/Color
Mode
LED Behavior
Mode Description
Battery
Charging
Combined solid
and flashing.
See description
Plugged into USB for charging.
Each LED represents 1/3
rd
of battery capacity.
Starting from the left the lights go from
flashing to solid as the battery charge fills.
Full charge when all 3 are solid.
Using battery
power
Flashing every 3
seconds
LEDs will flash depending on amount of charge
left.
Minimum to 1/3rd charge left – LED 1
1/3rd to 2/3
rd
charge left – LED 1-2
2/3
rd
to full charge left – LED 1-2-3
Alert
Not Ready
Solid On
Cannot profile: due to TC 1 missing, TCs too
hot, SPS too hot, Battery too low, startup
failure, voltage too low to charge or memory
full. Plug into PC and software to identify alert.
Ready
Off
Ready to begin profiling.
Data Collection
Profiling
Fast Flashing
Profiling in progress.
Profile Complete
Flashing every 3
seconds
One or more profiles are complete and stored
in memory.
Data Empty
Off
No profiles stored in memory.
Wi-Fi
No
Communications
Off
Wi-Fi not in use or not available.
Wi-Fi In Use
Fast flashing
When profiling or downloading.
Wi-Fi Ready
Slow flashing
Flashing every 3 seconds when paired with
Smart Dock
Beacon
Flashing
Beacon mode starts when device is tapped.
LED flashes until SPS finds a Smart Dock beacon
and pairs with it to make private Wi-Fi
connection.
