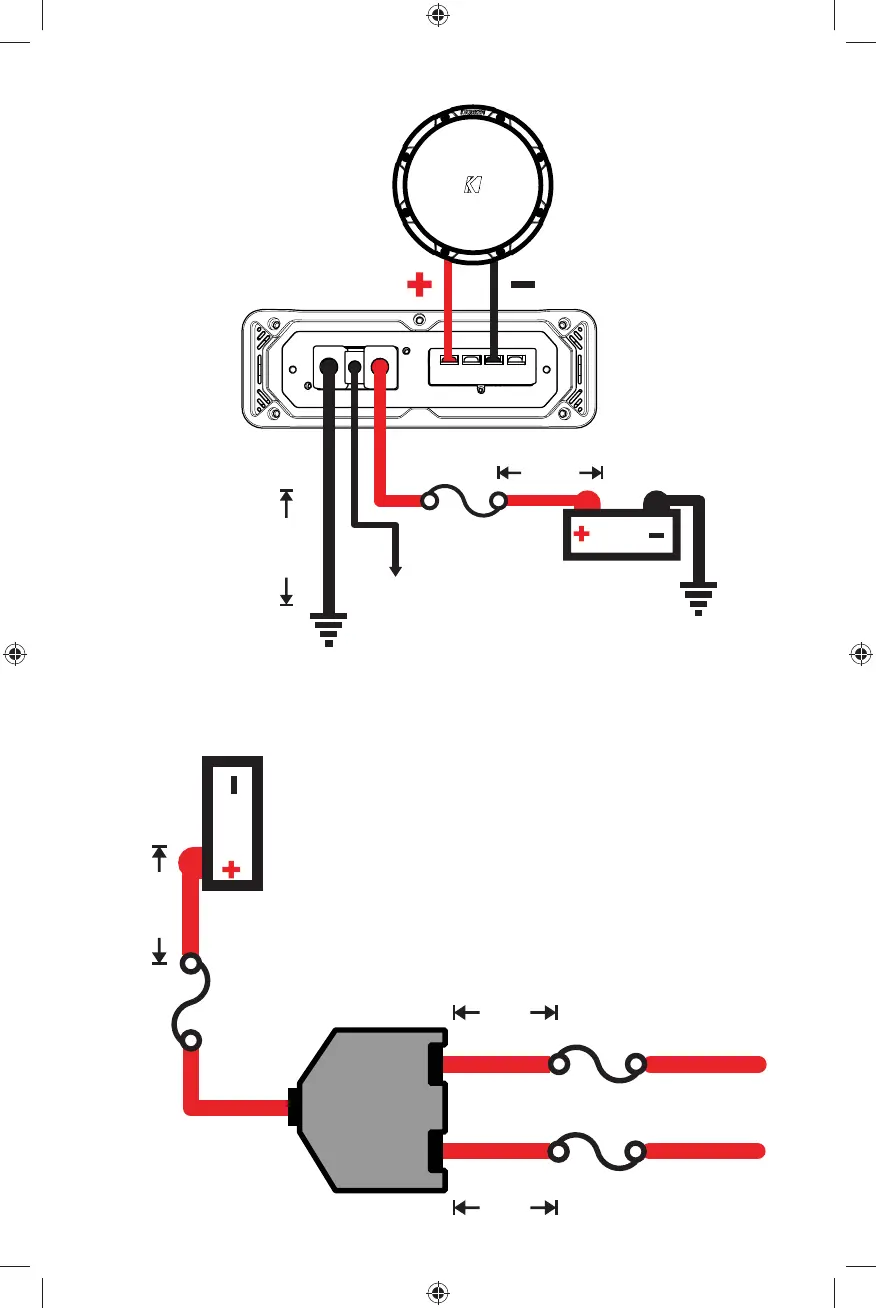

4
12V
battery
external fuse
external fuse
external fuses
remote turn-on
(see page 5)
bare-metal
chassis ground
distribution block
bare-metal
chassis ground
≤18”
(45cm)
≤18”
(45cm)
≤18”
(45cm)
≤18”
(45cm)
≤24”
(60cm)
woofer
MONO OPERATION
minimum impedance of 2 ohms
12V
For multiple amplifi er installations where distribution blocks
are used, each amplifi er should have its proper-rated fuse, or
breaker, installed between the amplifi er and the distribution
block within eighteen inches of the block, or on the distribution
block if it provides for fusing. The primary power wire should
also be fused between the battery and distribution block, within
eighteen inches of the battery’s positive terminal, with a fuse
or breaker rated at least to the sum of the individual amplifi er’s
fuse values
