Kicker CX1200.1 User Manual

3
Wiring: Disconnect the vehicle’s battery to avoid an electrical short. Then, connect the ground wire to the
amplifi er. Make the ground wire short, 24” (60cm) or less, and connect it to a paint-and-corrosion-free, solid,
metal area of the vehicle’s chassis. Adding an additional ground wire of this same gauge (or larger) between the
battery’s negative post and the vehicle chassis is recommended.
The CX amplifi er has dual input sensitivity differential RCA inputs which will receive either high or low level signals
from your car stereo’s source unit. A high-level signal can be run from the source unit’s speaker outputs to the
stereo RCA input on the end panel of the amplifi er using the KICKER ZISL as shown (make sure you set the CX
amplifi er’s input level switch to “HI”). Alternatively, the signal can be delivered to the amplifi er using the low-level
RCA outputs on the source unit. Set the input level switch on the end panel of the amplifi er to “LO”. Either input
method will provide a low-level output signal at the RCA output, which effectively passes the audio signal to
another amplifi er or component. Keep the audio signal cable away from factory wiring harnesses and other
power wiring. If you need to cross this wiring, cross it at a 90 degree angle.
source unit
high-level speaker
outputs
to amplifi er
shield
double-slotted
bracket
+
+
+
–
–
–
core conductor
KICKER ZISL (optional)
source unit high-level
speaker outputs
OR
to amplifi er

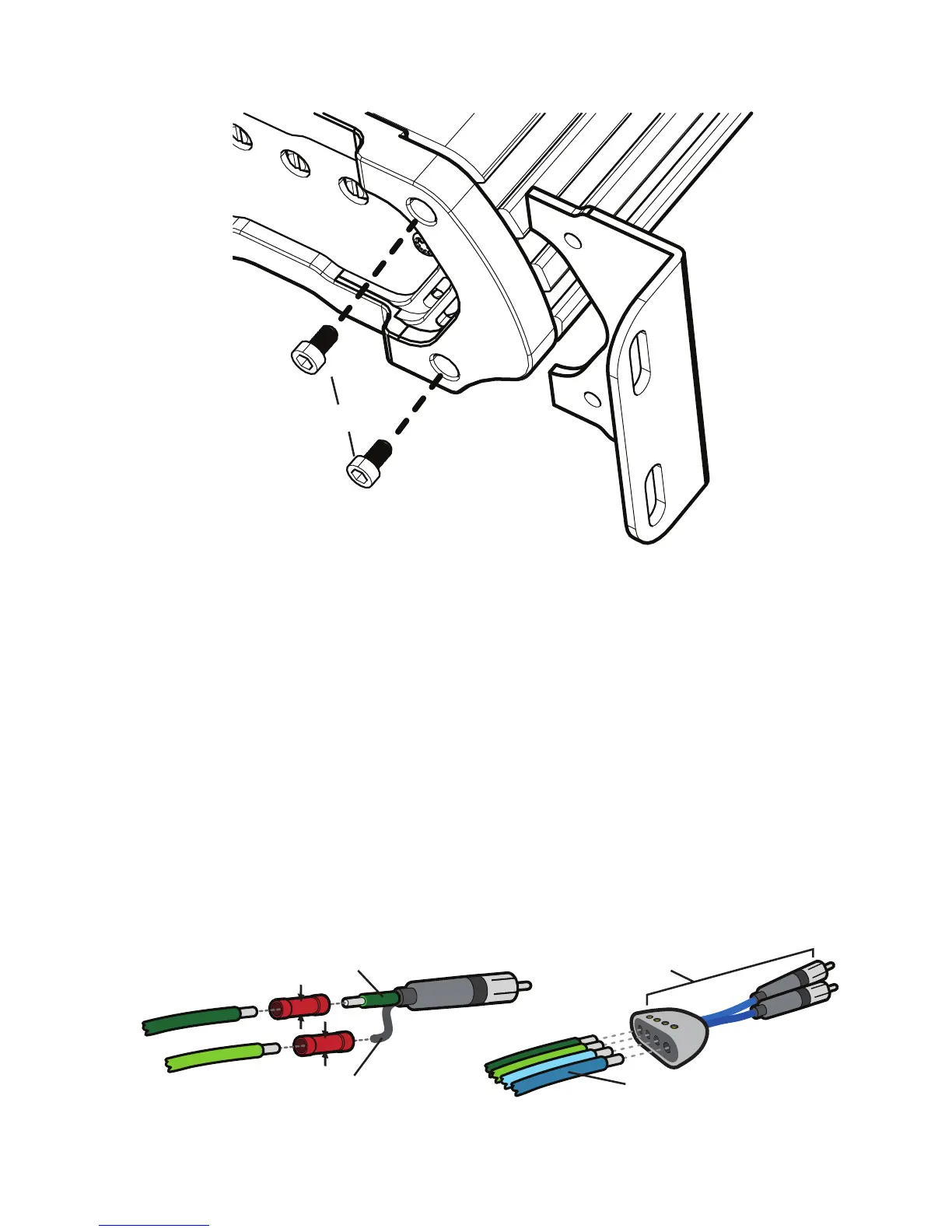

VERTICAL MOUNTING
hex screws
amplifi er side panel
2012 CX Mono Amps Rev I.indd 3 6/22/2012 2:32:29 PM

Kicker CX1200.1 Specifications

General

Bass boost	0 - 12 dB
Amplifier class	-
Input sensitivity	250 mV
Low pass filter range	50 - 200 Hz
High pass filter range	25 - 200 Hz
Signal-to-Noise Ratio (SNR)	95 dB
Number of amplifier channels	1 channels
RMS power output per channel (2 Ohm)	1200 W
RMS power output per channel (4 Ohm)	600 W
Product color	Black

Weight and Dimensions

Depth	163.1 mm
Width	161.8 mm
Height	86 mm
